Fenner Drives®
B0441

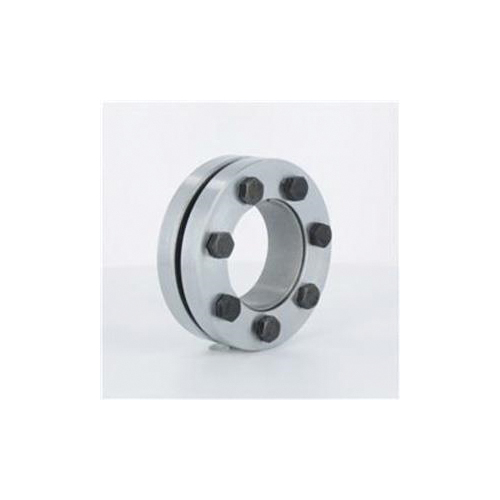

Fenner Drives® B-LOC® B0441 SD10 Double Taper Standard Duty Shrink Disc, 1.125 to 1.419 in Dia Bore, 3.15 in OD, Steel
- Item#: B0441
- Mfr#: B0441
- UPC: 0662345041966
- Extremely concentric and well-balanced mechanical interference fit
- No axial movement during installation
- Ability to transmit higher torques
- True zero-backlash
- Less equipment downtime
- Ability to mount over existing keyways
- Complete axial and radial adjustability
- Simple installation, adjustment and removal
- Size 44-10
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
The B-LOC® SD10 series 44-10 shrink disc is an external locking device that provides a high capacity, zero-backlash shaft to hub on shafts ranging from 1-1/8 to 1.419 in Dia by means of a mechanical interference fit and transmits between 683 lb-ft and 1198 lb-ft of torque depending on the specific shaft size.
Fenner Drives® B-LOC® Shrink Disc, Double Taper Standard Duty, Series: SD10, 1.125 to 1.419 in Bore Dia, 3.15 in Outside Dia, 1.732 in Hub Dia, 683 to 1198 ft-lb Transmissible Torque, M6 x 20 Screw, 0.94 in Overall Length, Steel, Zinc Chrome Plated
SPECIFICATIONS
| Finish | : | Zinc Chrome Plated |
| Screw Size | : | M6 x 20 |
| Series | : | SD10 |
| Transmissible Torque | : | 683 to 1198 ft-lb |
| Type | : | Double Taper Standard Duty |
| Bore Diameter | : | 1.125 to 1.419 in |
| Outside Diameter | : | 3.15 in |
| Hub Diameter | : | 1.732 in |
| Overall Length | : | 0.94 in |
| Material | : | Steel |
