Zero-Max® C156806
Zero-Max®

Zero-Max® C156806

loading
Zero-Max®
Email Print

C156806

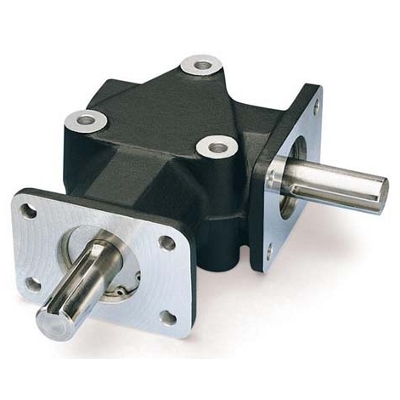

Zero-Max® C156806 2-Way Right Angle Gearbox Standard Model, Shaft Input, Shaft Output, 1.27 hp, 2000 rpm Maximum Output, 40 in-lb Torque Rating

  • Item#: C156806
  • Mfr#: C156806

    Shafts

    • Length: 1.000 IN
    • Diameter: 0.500 IN (with keyway)
    • Material: Stainless steel
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading

DESCRIPTION

Zero-Max® Crown Gear Drives are available in 5 sizes, 3 configurations, and with 1:1 and 2:1 ratios. High quality AGMA class 10 spiral bevel gears. Stainless steel shafts and either black anodized or IP65-Rated nickelplated aluminum housing.

Zero-Max® C156806 Two-Way Right Angle Gearbox Standard Model, Shaft Input, Shaft Output, 1.27 hp, 2000 rpm Maximum Output, 40 in-lb Torque Rating. Overhung Load Capacity at Mid Shaft, Both Shafts: 155.69 N / 35.00 lb. Thrust Load Capacity: 311.38 N / 70.00 lb.

SPECIFICATIONS

Input Type      :      Shaft
Output Type      :      Shaft
Gear Ratio      :      1:1

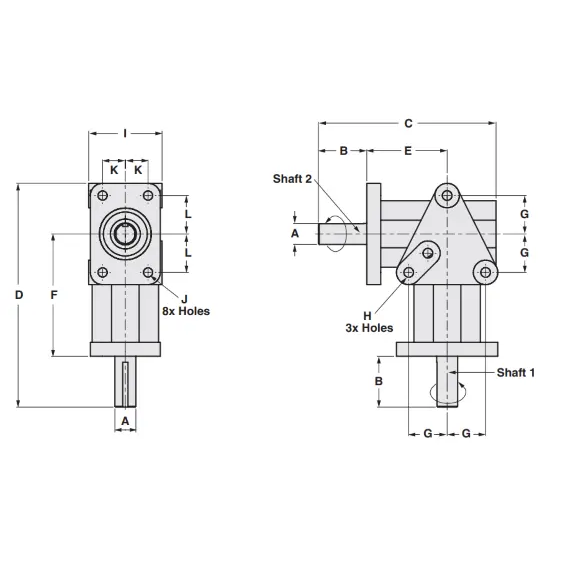

Dimensions      :      See Catalog
Housing Material      :      Anodized Cast Aluminum
Horsepower      :      0.07-1.27 hp
Output Maximum Speed      :      2000 rpm
Torque Rating      :      40-46 in-lb

DOCUMENTS

  • pdf
    Document     https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/C156806_Crown_Gear_Installation.pdf
  • pdf
    Catalog     https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/C156806_init_Zero-Max Crown Gear Catalog.pdf
