JHW6CH20T02

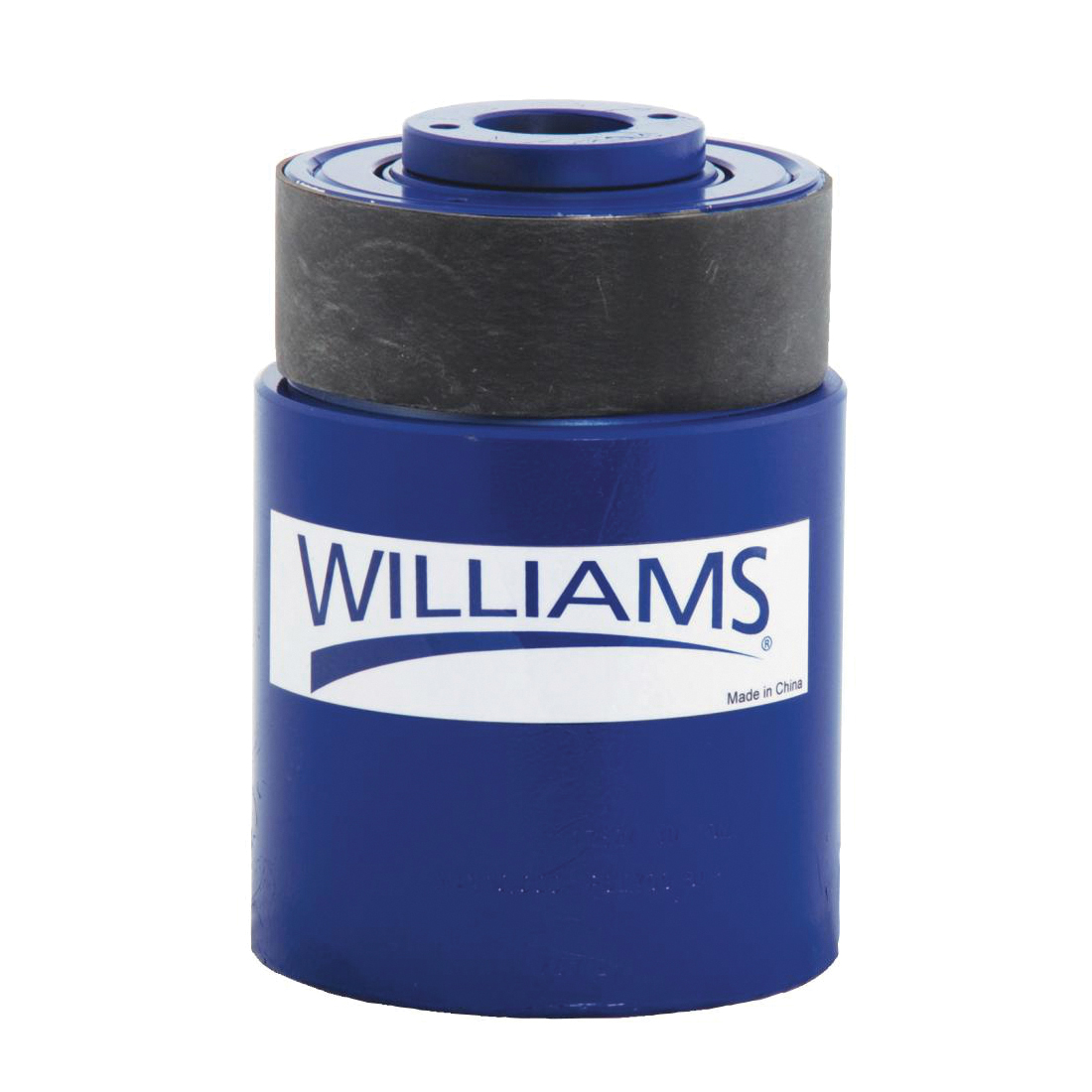

Williams® JHW6CH20T02 Hollow Hole Single Acting Cylinder, 20 ton Capacity, 1.063 in Bore, 2.01 in L Stroke, 6.38 in Retract, 2.15 in Dia Rod, 8167 psi Pressure
- CP#:
- Item#: 6CH20T02
- Mfr#: JHW6CH20T02
- UPC: 662459922991
- Heavy duty compression spring
- Dual wipers help prevent contamination
- Collar thread protector
- High flow coupler with dust cap
- Easy-to-read window scale
- Lightweight
- Automatic lock in CCW direction for removing screws
- +/-6% of indicated value, CW, from 2 to 1% of full scale accuracy
- Individually serialized with matching certificate of calibration traceable to NIST
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Williams® Cylinder, Hollow Hole Single Acting, Series: 6CH, 20 ton, 1.063 in Bore, 2.01 in Stroke, 6.38 in Retract, 3/8-16 UNC, 2.15 in Rod Dia, 8167 psi, 3.92 in OD x 8.39 in L Dimensions
SPECIFICATIONS
| Series | : | 6CH |
| Type | : | Hollow Hole Single Acting |
| Port Size | : | 3/8-16 UNC |
| Dimensions | : | 3.92 in OD x 8.39 in L |
| Capacity | : | 20 ton |
| Bore Size | : | 1.063 in |
| Stroke Length | : | 2.01 in |
| Retract | : | 6.38 in |
| Rod Diameter | : | 2.15 in |
| Pressure Rating | : | 8167 psi |
DOCUMENTS
-
Manual https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Williams_JHW6CH30T06_Manual.pdf -
Specification Sheet https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Williams_JHW6CH30T06_Specification_Sheet.pdf -
VIDEO LINK
https://youtu.be/M7tLJ9Wil-U
