JHW6C15T02

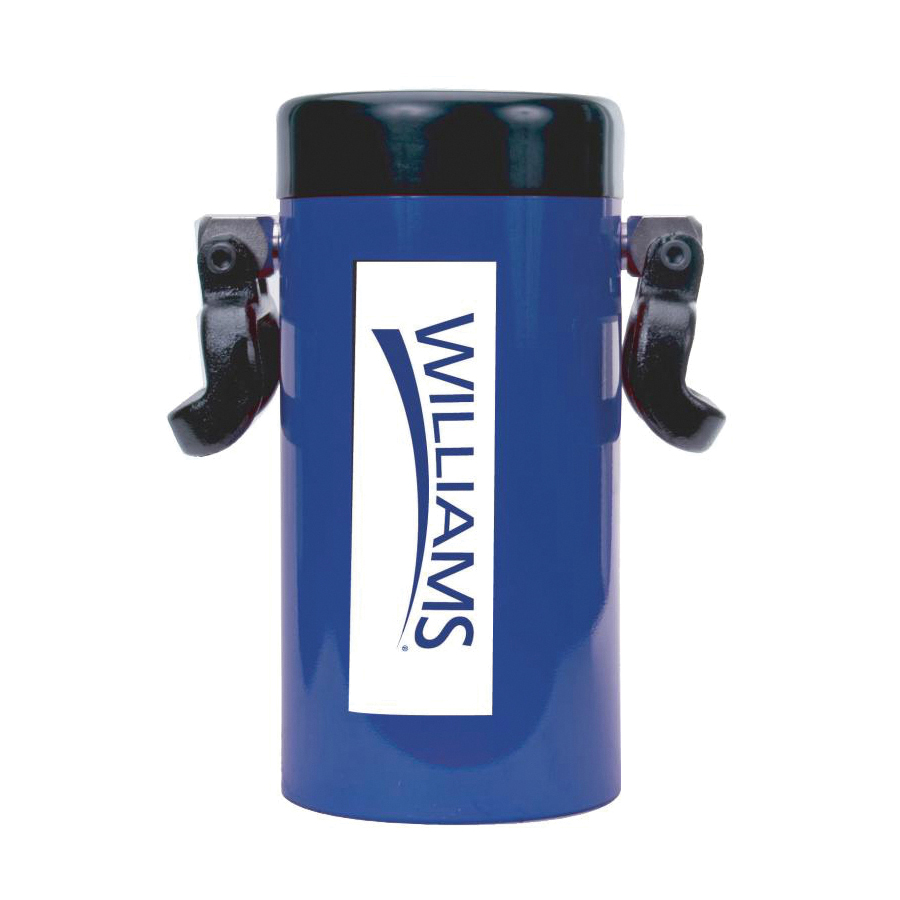

Williams® JHW6C15T02 Single Acting Hydraulic Cylinder, 15 ton Capacity, 2 in Bore, 2.01 in L Stroke, 5.87 in Retract, 1.63 in Dia Rod, 9550 psi Pressure
- CP#:
- Item#: 6C15T02
- Mfr#: JHW6C15T02
- UPC: 662459922762
- Internal plunger threads
- Snap in grooved saddles
- Rod wiper seals out dirt and contamination
- Collar fixture threads
- Two base mounting holes on most models
- High strength steel construction from gun drilled solid bar
- High flow 3/8 in NPTF couplers
- Collar thread protector
- One-piece high grade alloy bearing for side load protection and long life
- Polyurethane cup seal provides optimum performance
- Industrial hard polished chrome ram helps prevent rust and corrosion
- Solid steel cylinder body
- Heavy duty return spring provides quicker retraction
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Williams® Hydraulic Cylinder, Single Acting, Series: 6C, 15 ton, 2 in Bore, 2.01 in Stroke, 5.87 in Retract, 1-8 UNC, 1.63 in Rod Dia, 9550 psi, Steel Housing, 2.75 in OD x 7.88 in L Dimensions
SPECIFICATIONS
| Series | : | 6C |
| Type | : | Single Acting |
| Housing Material | : | Steel |
| Port Size | : | 1-8 UNC |
| Dimensions | : | 2.75 in OD x 7.88 in L |
| Capacity | : | 15 ton |
| Bore Size | : | 2 in |
| Stroke Length | : | 2.01 in |
| Retract | : | 5.87 in |
| Rod Diameter | : | 1.63 in |
| Pressure Rating | : | 9550 psi |
DOCUMENTS
-
Specification Sheet https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Williams_JHW6C25T02_Specification_Sheet.pdf -
VIDEO LINK
https://youtu.be/M7tLJ9Wil-U
