JHW6C10T06

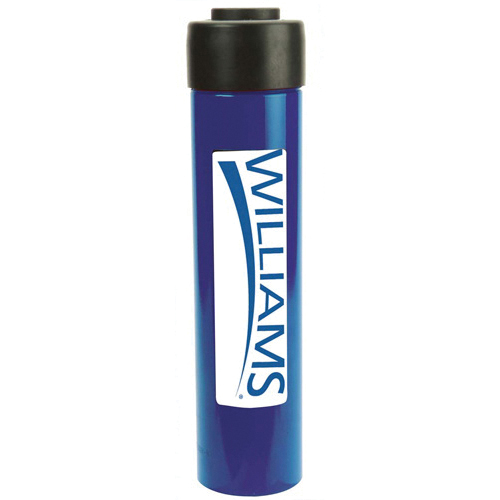

Williams® JHW6C10T06 Single Acting Hydraulic Cylinder, 10 ton Capacity, 1.69 in Bore, 5.94 in L Stroke, 9.84 in Retract, 1.49 in Dia Rod, 8930 psi Pressure
- CP#:
- Item#: 6C10T06
- Mfr#: JHW6C10T06
- UPC: 662459922700
- Internal plunger threads
- Snap in grooved saddles
- Rod wiper seals out dirt and contamination
- Collar fixture threads
- Two base mounting holes on most models
- High strength steel construction from gun drilled solid bar
- High flow 3/8 in NPTF couplers
- Collar thread protector
- One-piece high grade alloy bearing for side load protection and long life
- Polyurethane cup seal provides optimum performance
- Industrial hard polished chrome ram helps prevent rust and corrosion
- Solid steel cylinder body
- Heavy duty return spring provides quicker retraction
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Williams® Hydraulic Cylinder, Single Acting, Series: 6C, 10 ton, 1.69 in Bore, 5.94 in Stroke, 9.84 in Retract, 1-8 UNC, 1.49 in Rod Dia, 8930 psi, Steel Housing, 2.26 in OD x 15.78 in L Dimensions
SPECIFICATIONS
| Series | : | 6C |
| Type | : | Single Acting |
| Housing Material | : | Steel |
| Port Size | : | 1-8 UNC |
| Dimensions | : | 2.26 in OD x 15.78 in L |
| Capacity | : | 10 ton |
| Bore Size | : | 1.69 in |
| Stroke Length | : | 5.94 in |
| Retract | : | 9.84 in |
| Rod Diameter | : | 1.49 in |
| Pressure Rating | : | 8930 psi |
DOCUMENTS
-
Specification Sheet https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Williams_JHW6C25T02_Specification_Sheet.pdf -
VIDEO LINK
https://youtu.be/M7tLJ9Wil-U
