- WEG .7518ES3E56CFL-S
.7518ES3E56CFL-S

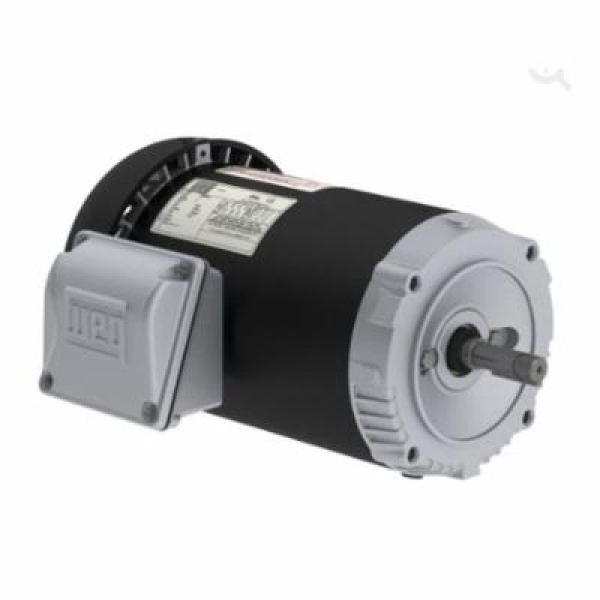

WEG .7518ES3E56CFL-S C-Face Standard Efficiency AC Motor, Totally Enclosed Fan Cooled Enclosure, 3/4 hp, 208 to 230/460 VAC, 60 Hz, 56C Frame, 1800 rpm Speed, Footless Mount
- CP#:
- Item#: 0.7518ES3E56CFL-S
- Mfr#: .7518ES3E56CFL-S
- UPC: 7909158993505
- Motors are suitable for VFD operation (TEFC)
- TEFC rated IP55 (gasketed conduit box and capacitor cover)
- Without drip cover
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
WEG AC Motor, C-Face Standard Efficiency, 3/4 hp, 208 to 230/460 VAC, 2.7 to 2.44/1.22/2.74/1.37/2.6/1.38 A, 60 Hz Frequency, 1800 rpm Speed, 1 Speed, Totally Enclosed Fan Cooled Enclosure, 56C Frame, 1.149 Service Factor, Ball Bearing, 2.21 ft-lb Torque, Footless Mounting, -20 to 40 deg C, Insulation Class: Class F, Rolled Steel, 0.209 Constant Torque Speed, 41.667 ft-lb Variable Torque Speed, 11.929 in L Dimensions
SPECIFICATIONS
| Horsepower | : | 3/4 hp |
| Torque Rating | : | 2.21 ft-lb |
| Number of Speeds | : | 1 |
| Variable Torque Speed Range | : | 41.667 ft-lb |
| Material | : | Rolled Steel |
| Amperage Rating | : | 2.7 to 2.44/1.22/2.74/1.37/2.6/1.38 A |
| Constant Torque Speed Range | : | 0.209 |
| Type | : | C-Face Standard Efficiency |
| Insulation Class | : | Class F |
| Bearing Type | : | Ball |
| Temperature Rating | : | -20 to 40 deg C |
| Service Factor | : | 1.149 |
| Dimensions | : | 11.929 in L |
| Frame | : | 56C |
| Speed | : | 1800 rpm |
| Mounting Type | : | Footless |
| Enclosure Type | : | Totally Enclosed Fan Cooled |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/WEG_01018ET3ER215TCW22_Catalog.pdf -
Instruction/Installation Manual https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/WEG_01018ET3ER215TCW22_Manual_N.pdf -
Warranty Information https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/WEG_01018ET3ER215TCW22_Warranty_N.pdf -
Specification Sheet https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/WEG_7518ES3E56CFL_S_Specification_Sheet.pdf
