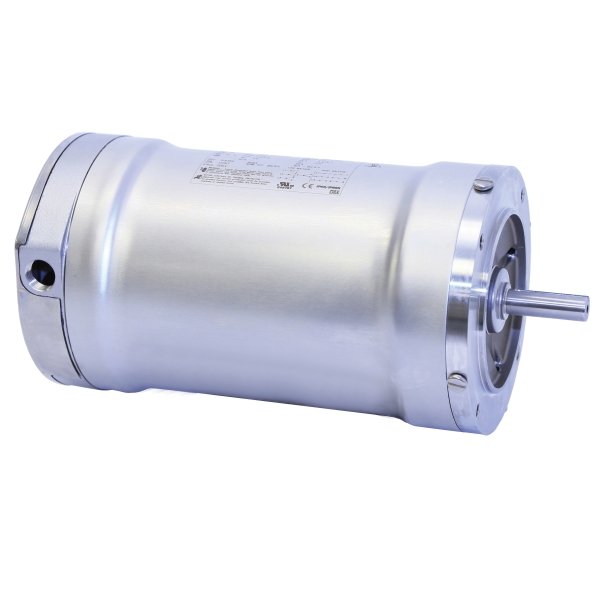

WEG HydroDuty™ 1321087158 Premium Efficiency AC Motor With C-Face Flange and EZ Connect Technology, TENV Enclosure, 1 hp, 230/460 V, 50/60 Hz, 3 ph Phase, 100L Frame, 1725 rpm Speed, Footless Mount
- CP#:
- Item#: 1321087158
- Mfr#: 1321087158
- This is the ultimate stainless steel waterproof motor
- It has been proven to provide 75% more cycles than other brands through extreme environment testing.
- Significantly reduces motor replacement and downtime costs
- Encapsulated winding and a patented sealing system to ensure they will standup in the most severe applications
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
WEG HydroDuty™ AC Motor, Premium Efficiency, Special Features: Washdown Duty Motors, 1 hp, 230/460 V, 1.6 A, 50/60 Hz, 3 ph, 1725 rpm, TENV, 100L Frame, Service Factor: 1, Footless Mount, 40 deg C Ambient, Insulation Class: Class F, Stainless Steel, 13.91 in L
SPECIFICATIONS
| Horsepower | : | 1 hp |
| Material | : | Stainless Steel |
| Amperage Rating | : | 1.6 A |
| Type | : | Premium Efficiency |
| Insulation Class | : | Class F |
| Temperature Rating | : | 40 deg C Ambient |
| Service Factor | : | 1 |
| Dimensions | : | 13.91 in L |
| Special Features | : | Washdown Duty Motors |
| Phase | : | 3 |
| Frame | : | 100L |
| Speed | : | 1725 rpm |
| Mounting Type | : | Footless |
| Enclosure Type | : | TENV |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/WEG_1311087110_Catalog.pdf -
Warranty Information https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/WEG_2518ES3EBMW56CFLS_Warranty.pdf
