02012OT3E286JP-W40

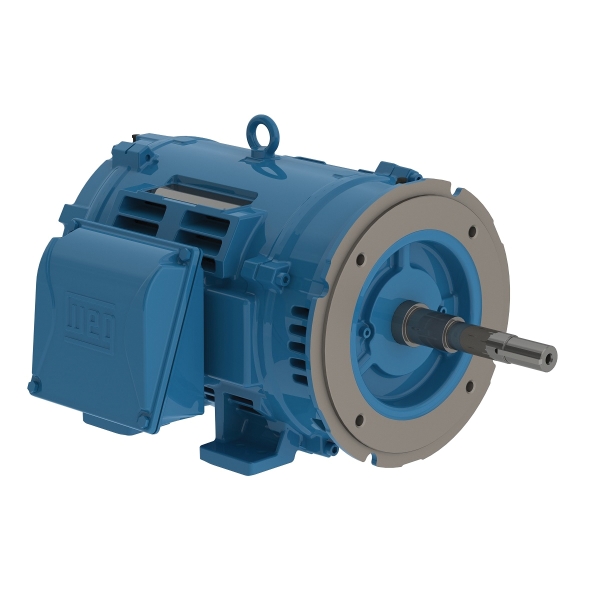

WEG 02012OT3E286JP-W40 Premium Efficiency AC Motor With C-Face Flange, Open Drip-Proof Enclosure, 20 hp, 230/460 V, 60 Hz, 3 ph Phase, 284/6JP Frame, 1200 rpm Speed, Foot Mount
- CP#:
- Item#: 02012OT3E286JP
- Mfr#: 02012OT3E286JP-W40
- Rugged and compact design - with maximum reliability, ready for all application requirements, W40 motors have higher power density when compared with TEFC motors
- Low vibration and noise levels - W40 motors have vibration velocity limits and noise levels as per NEMA MG-1 parts 7 and 9
- Enhanced customer interface for easy installation and maintenance - reversible F1/F2 ready, prepared for opposite side auxiliary boxes drilling and installation, grease inlet/outlet improved access, easy access to flange bolts, flat areas for vibration sensors
- Oversized terminal box - oversized and diagonally split terminal box for easier access and service operations
- IP23 degree of protection - complete protection against touching on all live or rotating parts
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
The W40 motor is a general purpose line designed for environments where dirt and moisture are minimal. The W40 cast iron frame is designed to provide maximum ventilation and heat dissipation, offering low vibration levels, high mechanical stiffness and durability.
WEG AC Motor, Premium Efficiency, 20 hp, 230/460 V, 48.6/24.3 A, 60 Hz Frequency, 3 ph ph, 1200 rpm Speed, Open Drip-Proof Enclosure, 284/6JP Frame, 1.25 in Dia x 8.13 in L Shaft, CW/CCW Rotation, 1.25 Service Factor, Regreasable Ball Bearing, 89.2 ft-lb Torque, Foot Mounting, -20 to 40 deg C Ambient, Insulation Class: Class F, Cast Iron, 28.413 in L Dimensions
SPECIFICATIONS
| Horsepower | : | 20 hp |
| Torque Rating | : | 89.2 ft-lb |
| Material | : | Cast Iron |
| Amperage Rating | : | 48.6/24.3 A |
| Type | : | Premium Efficiency |
| Shaft Size | : | 1.25 in Dia x 8.13 in L |
| Insulation Class | : | Class F |
| Bearing Type | : | Regreasable Ball |
| Temperature Rating | : | -20 to 40 deg C Ambient |
| Service Factor | : | 1.25 |
| Dimensions | : | 28.413 in L |
| Rotation | : | CW/CCW |
| Phase | : | 3 |
| Frame | : | 284/6JP |
| Speed | : | 1200 rpm |
| Mounting Type | : | Foot |
| Enclosure Type | : | Open Drip-Proof |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/WEG_00712OT3E254JMW40_Catalog.pdf -
Specification Sheet https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/WEG_02012OT3E286JPW40_Specification_Sheet.pdf -
Warranty Information https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/WEG_2518ES3EBMW56CFLS_Warranty.pdf
