01518ET3Y160LFF-W22

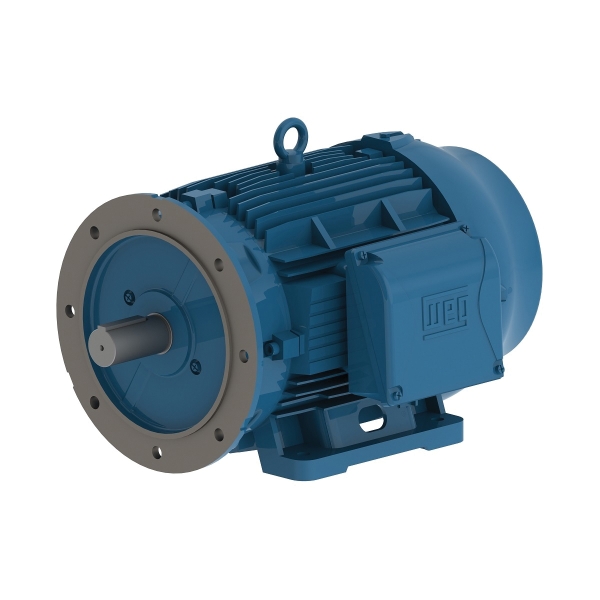

WEG IEC Tru-Metric™ 01518ET3Y160LFF-W22 AC Motor With FF-Face Flange, TEFC Enclosure, 20 hp, 460 V, 60 Hz, 3 ph Phase, 160L Frame, 1800/1500 rpm Speed, Foot Mount
- CP#:
- Item#: 01518ET3Y160LFF-W22
- Mfr#: 01518ET3Y160LFF-W22
- UPC: 79092650421
- Optimized ventilation system for cooler operation and low noise levels
- Solid base for lower vibration levels (cast iron frames)
- Frames 225 and up can easily be F1 (B3L) converted by simply rotating the terminal box adapter or F3 by removing it
- Terminal blocks
- Aluminum frames have removable feet for easy F1, F2 and F3 (B3L, B3R, B3T) conversion
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
WEG IEC Tru-Metric™ AC Motor, Special Features: Severe Duty Motors, 20 hp, 460 V, 25 A, 60 Hz, 3 ph, 1800/1500 rpm, TEFC, 160L Frame, 37 mm Dia x 110 mm L Shaft, CW/CCW, Service Factor: 1.25, 59.2 ft-lb, Foot Mount, -20 to 40 deg C Ambient, Insulation Class: Class F, Aluminum
SPECIFICATIONS
| Horsepower | : | 20 hp |
| Torque Rating | : | 59.2 ft-lb |
| Material | : | Aluminum |
| Amperage Rating | : | 25 A |
| Shaft Size | : | 37 mm Dia x 110 mm L |
| Insulation Class | : | Class F |
| Temperature Rating | : | -20 to 40 deg C Ambient |
| Service Factor | : | 1.25 |
| Rotation | : | CW/CCW |
| Special Features | : | Severe Duty Motors |
| Phase | : | 3 |
| Frame | : | 160L |
| Speed | : | 1800/1500 rpm |
| Mounting Type | : | Foot |
| Enclosure Type | : | TEFC |
DOCUMENTS
-
Specification Sheet https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/WEG_01518ET3Y160LFFW22_Specification_Sheet.pdf -
Warranty Information https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/WEG_2518ES3EBMW56CFLS_Warranty.pdf
