01018ET3E215T-W22

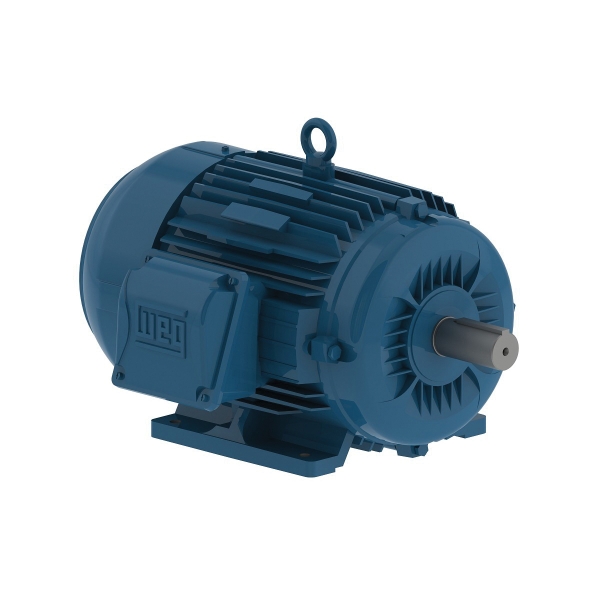

WEG 01018ET3E215T-W22 AC Motor, Totally Enclosed Fan Cooled Enclosure, 10 hp, 208 to 230/460/380 VAC, 60 Hz, 3 Phase, 213/5T Frame, 1800 rpm Speed, Footed Mount
- CP#:
- Item#: 01018ET3E215T-W22
- Mfr#: 01018ET3E215T-W22
- UPC: 7891327151864
- Class F insulation (impregnation resin and magnet wire are class H)
- F1 mounted (cast iron frames are F2 convertible)
- Frames 447T and up can easily be FT converted by simply rotating the terminal box adapter
- Stainless steel nameplate - laser etched with high contrast background (cast iron frames only)
- Cast iron frames are regreasable ball bearings (frames 254T and up)
- Gasketed conduit box
- Class I, Division 2, Groups A, B, C and D T3, Class II, Division 2, Groups F and G T3C (cast iron frames only)
- Optimized ventilation system for cooler operation and reduced noise levels
- Solid base for reduced vibration levels
- NPT threaded terminal box
- Without drip cover, terminal block and shaft locking device
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
High performance with maximum energy efficiency, this is the goal of the new WEG electric motor. High efficiency and Low cost of Ownership throughout the entire motor lifetime have been the basis for the W22 development. Ok design created to maximize performance and energy savings. WEG's W22 cast iron platform has an improved coolingsystem and solid feet for cooler operation and reduced vibration and noise, extending the life of the motor.
WEG AC Motor, 10 hp, 208 to 230/460/380 VAC, 27.4 to 24.8/12.4/11.2 A, 60 Hz Frequency, 3 ph, 1800 rpm Speed, 1 Speed, Totally Enclosed Fan Cooled Enclosure, 213/5T Frame, 1-3/8 in Dia x 3-3/8 in L Shaft, CW/CCW Rotation, 1.25 Service Factor, Ball Bearing, 29.4 ft-lb Torque, Footed Mounting, -20 to 40 deg C, Insulation Class: Class F, Cast Iron, 19-1/2 in L Dimensions
SPECIFICATIONS
| Horsepower | : | 10 hp |
| Torque Rating | : | 29.4 ft-lb |
| Number of Speeds | : | 1 |
| Material | : | Cast Iron |
| Amperage Rating | : | 27.4 to 24.8/12.4/11.2 A |
| Shaft Size | : | 1-3/8 in Dia x 3-3/8 in L |
| Insulation Class | : | Class F |
| Bearing Type | : | Ball |
| Temperature Rating | : | -20 to 40 deg C |
| Service Factor | : | 1.25 |
| Dimensions | : | 19-1/2 in L |
| Rotation | : | CW/CCW |
| Phase | : | 3 |
| Frame | : | 213/5T |
| Speed | : | 1800 rpm |
| Mounting Type | : | Footed |
| Enclosure Type | : | Totally Enclosed Fan Cooled |
DOCUMENTS
-
Specification Sheet https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/WEG01018ET3E215T_W22_Specification_Sheet.pdf -
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/WEG_01018ET3ER215TCW22_Catalog.pdf -
Instruction/Installation Manual https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/WEG_01018ET3ER215TCW22_Manual_N.pdf -
Warranty Information https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/WEG_01018ET3ER215TCW22_Warranty_N.pdf
