00518ET3EBM184TC-S

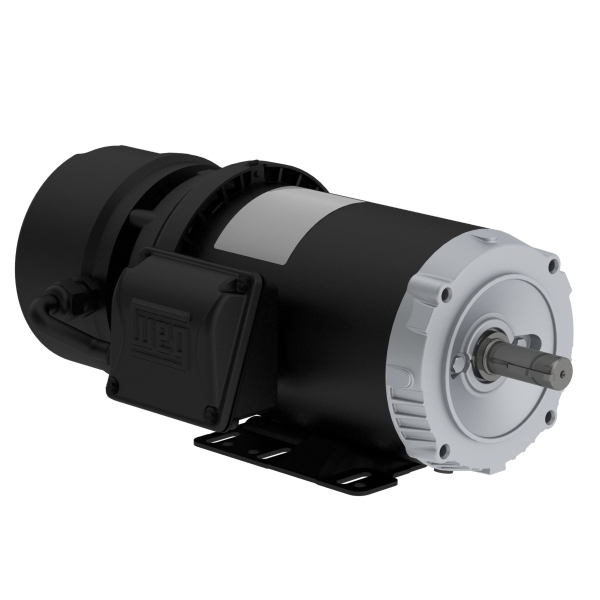

WEG 00518ET3EBM184TC-S Premium Efficiency AC Brake Motor With C-Face Flange, TEFC Enclosure, 5 hp, 208 to 230/460 V, 60 Hz, 3 ph Phase, 184TC Frame, 1800 rpm Speed, Foot Mount
- CP#:
- Item#: 00518ET3EBM184TC-S
- Mfr#: 00518ET3EBM184TC-S
- Manual release lever
- Inverter rated
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
The W01 brake motor line has been designed for equipment and applications that require fast stops for safety, accurate positioning and time saving. This is possible since the brakes are locked with springs and electrically released. It also provides the brake operation when failures are presented, such as interruption or failure on the power supply, so the brake will hold the load as protection. These motors are the best option to work in conveyors, material handling, food and beverage, crane and hoist, mining and more.
WEG AC Brake Motor, Premium Efficiency, 5 hp, 208 to 230/460 V, 14.4 to 13/6.49 A, 60 Hz, 3 ph, 1800 rpm, TEFC, 184TC Frame, 1-1/8 in Dia Shaft, CW/CCW, Service Factor: 1.15, 14.8 ft-lb, Foot Mount, -20 to 40 deg C Ambient, Insulation Class: Class F, Rolled Steel, 22.992 in L
SPECIFICATIONS
| Horsepower | : | 5 hp |
| Torque Rating | : | 14.8 ft-lb |
| Material | : | Rolled Steel |
| Amperage Rating | : | 14.4 to 13/6.49 A |
| Type | : | Premium Efficiency |
| Shaft Size | : | 1-1/8 in Dia |
| Insulation Class | : | Class F |
| Temperature Rating | : | -20 to 40 deg C Ambient |
| Service Factor | : | 1.15 |
| Dimensions | : | 22.992 in L |
| Rotation | : | CW/CCW |
| Phase | : | 3 |
| Frame | : | 184TC |
| Speed | : | 1800 rpm |
| Mounting Type | : | Foot |
| Enclosure Type | : | TEFC |
DOCUMENTS
-
Specification Sheet https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/WEG_00518ET3EBM184TCS_Specification_Sheet.pdf -
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/WEG_2518ES3EBMW56CFLS_Catalog.pdf -
Warranty Information https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/WEG_2518ES3EBMW56CFLS_Warranty.pdf
