00236ES1B56CFL-S

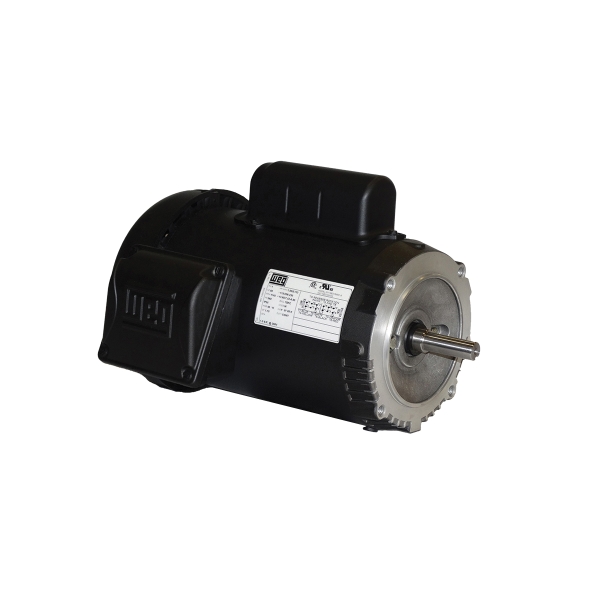

WEG 00236ES1B56CFL-S AC Motor, Totally Enclosed Fan Cooled Enclosure, 2 hp, 115/208/230 VAC, 1 ph Phase, 56C Frame, 3600 rpm Speed, C-Face Footless Mount
- CP#:
- Item#: 00236ES1B56CFL-S
- Mfr#: 00236ES1B56CFL-S
- V-ring seals
- NPT threaded terminal box
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
The high starting torque of this motor is the perfect option for applications that require robustness and high performance in a single product. They offer good thermal performance along with easy installation and maintenance. 182T frames and above are cast iron for severe duty use.
WEG AC Motor, General Purpose AC Motors Application, 2 hp, 115/208/230 VAC, 8.7 A, 1 ph ph, 3600 rpm Speed, Totally Enclosed Fan Cooled Enclosure, 56C Frame, 1.15 Service Factor, Ball Bearing, 2.96 ft-lb Torque, C-Face Footless Mounting, -20 to 40 deg C, Insulation Class: Class F, Rolled Steel, 14.295 in L Dimensions
SPECIFICATIONS
| Horsepower | : | 2 hp |
| Torque Rating | : | 2.96 ft-lb |
| Material | : | Rolled Steel |
| Amperage Rating | : | 8.7 A |
| Insulation Class | : | Class F |
| Bearing Type | : | Ball |
| Temperature Rating | : | -20 to 40 deg C |
| Service Factor | : | 1.15 |
| Dimensions | : | 14.295 in L |
| Application Type | : | General Purpose AC Motors |
| Phase | : | 1 |
| Frame | : | 56C |
| Speed | : | 3600 rpm |
| Mounting Type | : | C-Face Footless |
| Enclosure Type | : | Totally Enclosed Fan Cooled |
DOCUMENTS
-
Instruction/Installation Manual https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/WEG_01018ET3ER215TCW22_Manual_N.pdf -
Warranty Information https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/WEG_01018ET3ER215TCW22_Warranty_N.pdf -
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/WEG_5018EP3ESS56CFL_Catalog.pdf
