- Warner Electric® 5370-273-209
5370-273-209

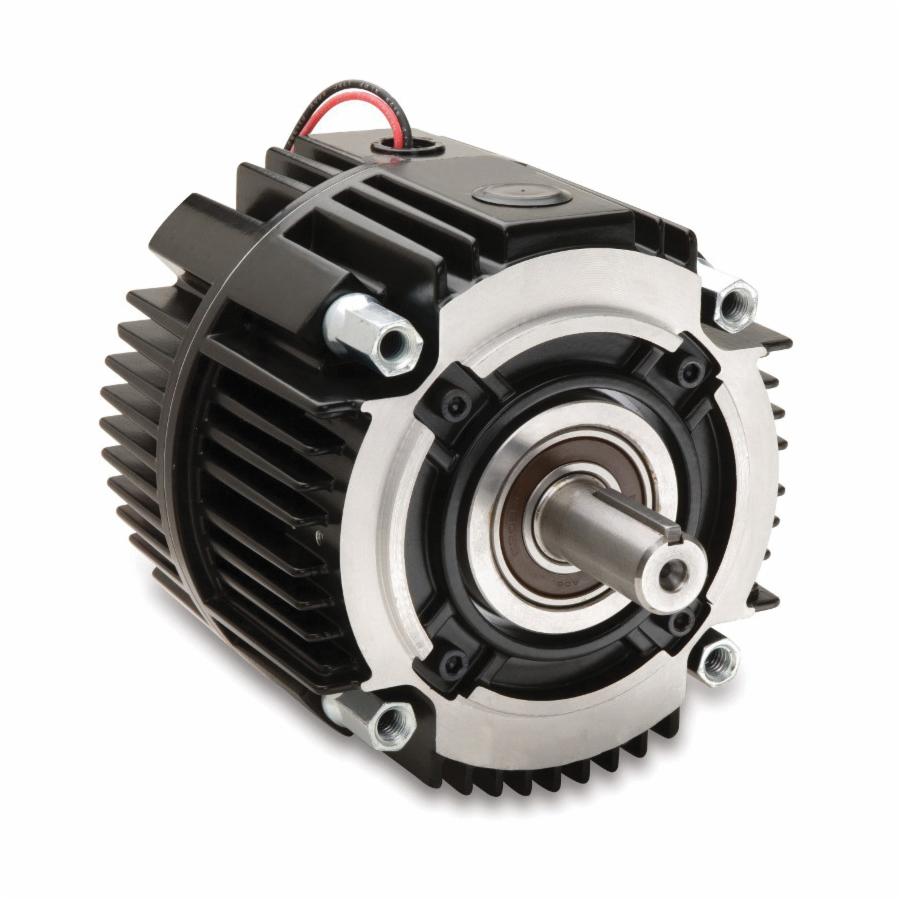

Warner Electric® UniModule® 5370-273-209 UM Series Standard Motor Clutch/Brake, 90 VDC, 30 ft-lb Torque, 3600 rpm Max, 5/8 in Dia Bore
- CP#:
- Item#: 5370-273-209
- Mfr#: 5370-273-209
- UPC: 786582959454
- Easy installation
- Fan cooled for high cycle rate operation
- Maintenance free
- Bearing mounted clutch rotor eases assembly alignment
- Single access hole for all wires
- Gen 2 design
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION

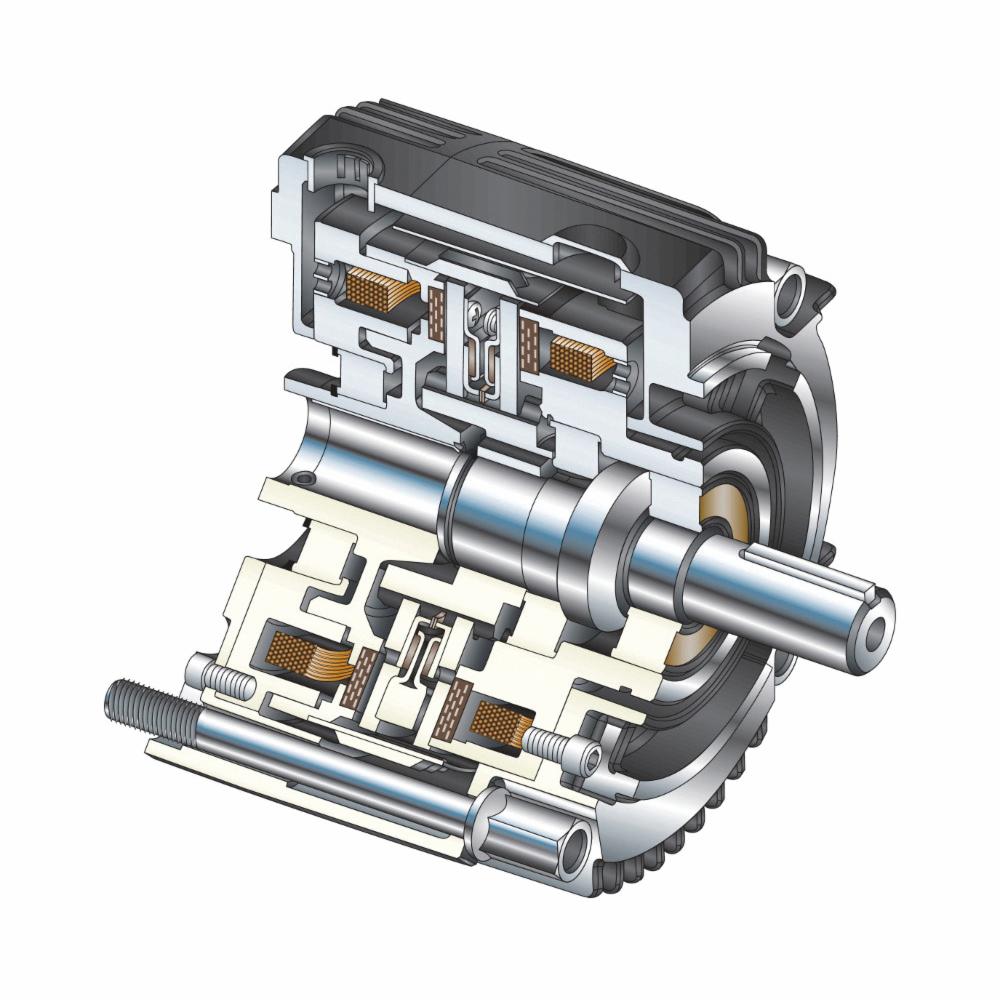

UniModule® offer the ultimate in clutch/brake performance and convenience. UniModule® offer the same performance as EM's without the assembly required. Completely pre-assembled one-piece clutch and clutch/brake packages in five sizes. This module (5370-273-209) features a 56C/48Y NEMA frame, a voltage of 90 VDC and 30 ft-lb torque.
Warner Electric® UniModule® Motor Clutch/Brake, Standard, Series: UM Series, 5/8 in Bore, 6-3/4 in OD, 6.741 in Overall Length, 30 ft-lb Torque, 90 VDC, 3600 rpm Maximum, C-Face Mounting, Open Enclosure
SPECIFICATIONS
| Enclosure Type | : | Open |
| Mounting Type | : | C-Face |
| Outside Diameter | : | 6-3/4 in |
| Overall Length | : | 6.741 in |
| Series | : | UM Series |
| Type | : | Standard |
| Voltage Rating | : | 90 VDC |
| Torque Rating | : | 30 ft-lb |
| Maximum Speed | : | 3600 rpm |
| Bore Diameter | : | 5/8 in |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://econtent.adhq.com/dam/Original/119/Warner_Electric_5103271008_Catalog.pdf -
Manual https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://econtent.adhq.com/dam/Original/144/Warner_Electric_5370271203_Manual.pdf -
Specification Sheet https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://econtent.adhq.com/dam/Original/276/Warner_Electric_5370271203_Specification_Sheet.pdf -
Document https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://econtent.adhq.com/dam/Original/65/Warner_Electric_5370273206_Line_Drawing.pdf
