Warner Electric® 5370-169-233
Warner Electric®

Warner Electric® 5370-169-233

loading
Warner Electric®

5370-169-233

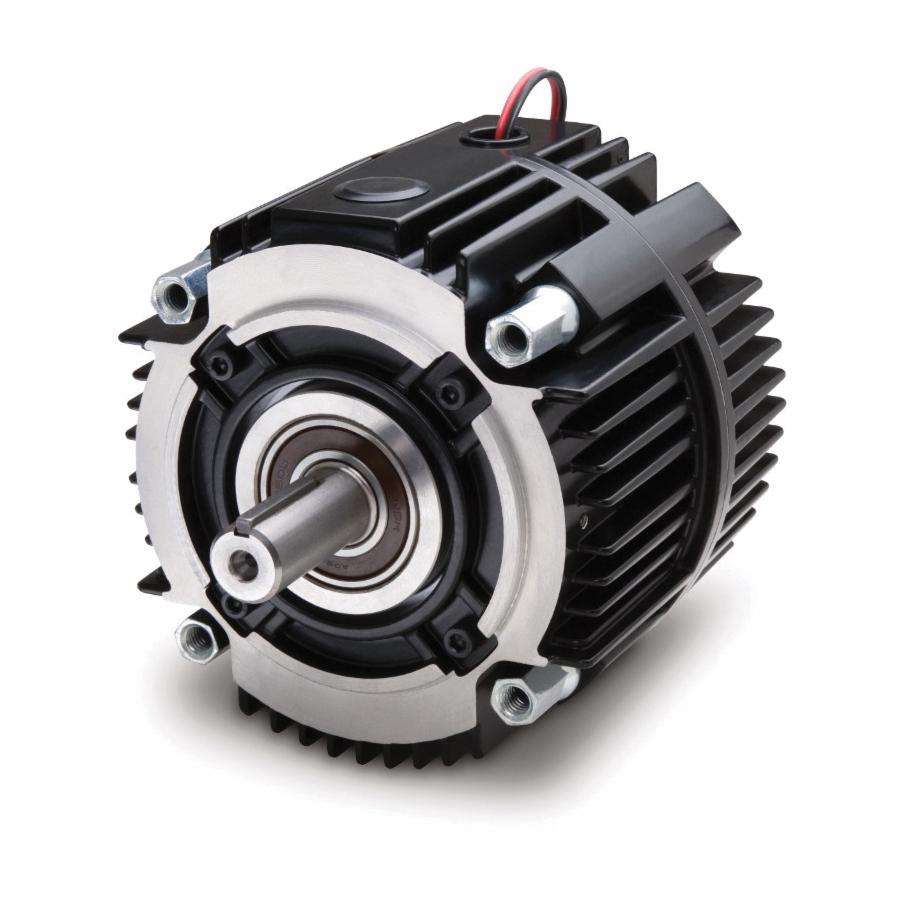

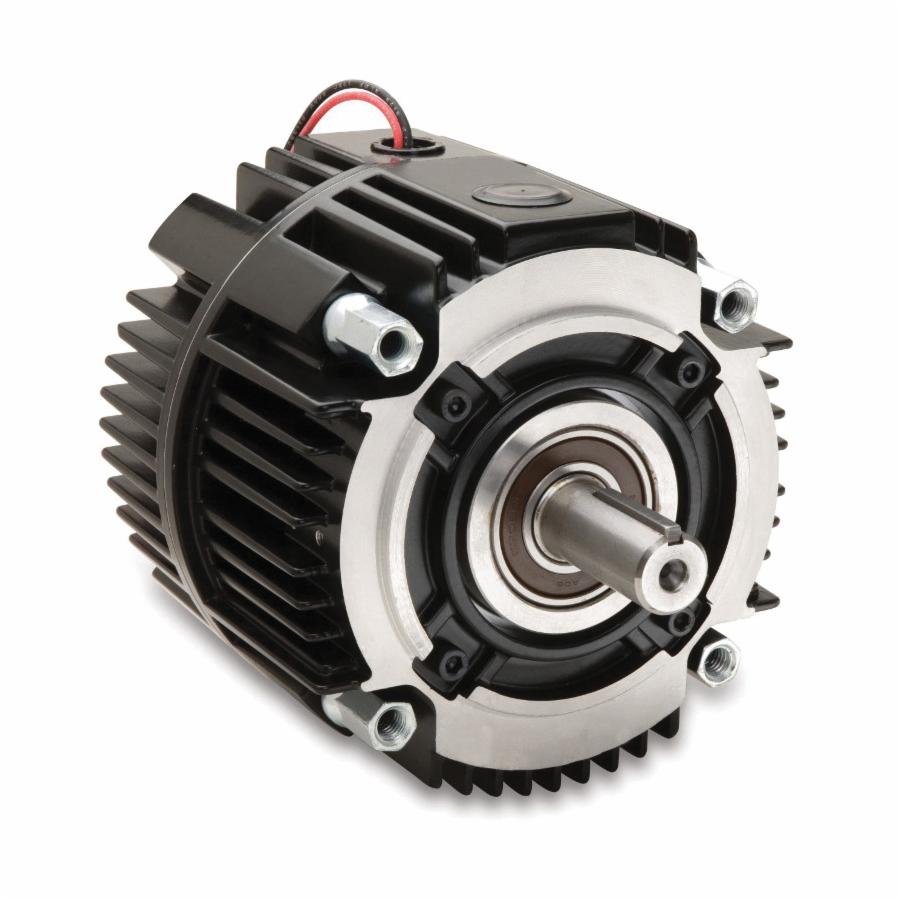

Warner Electric® 5370-169-233 EM-FBC Standard Electro Module Clutch/Brake, 24 VDC, 10.5 ft-lb Torque, 3600 rpm Max, 5/8 in Dia Bore

  • Item#: 5370-169-233
  • Mfr#: 5370-169-233
  • UPC: 786582961358
  • Designed for dynamic stopping operation
  • Brake automatically engages when power is turned off
  • High cycle rate capability
  • Never needs adjustment and automatically compensates for wear
  • Powerful permanent magnets provide braking force
  • Prepackaged and preburnished UM version
  • Rugged precision cast housing
  • NEMA C-face compatible mounting
  • Holding torque provided by powerful ceramic type permanent magnets
  • Complete torque control for soft starts and stops or instantaneous engagement
  • Can be base mounted for use as a separate drive unit
  • Dual armature for clutch/brake combination
  • Output shaft
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading

DESCRIPTION

Warner Electric® electrically released electro modules are available in three styles. The EM-FBC brake module is combined with a motor clutch (EM-10) or an input clutch (EM-30) for clutch/electrically released brake applications.

Warner Electric® Electro Module Clutch/Brake, Standard, Series: EM-FBC, 5/8 in Bore, 6-3/4 in OD, 5.165 in Overall Length, 10.5 ft-lb Torque, 24 VDC, 3600 rpm Maximum, Shaft Mounting, Vented Enclosure

SPECIFICATIONS

Enclosure Type      :      Vented
Mounting Type      :      Shaft
Outside Diameter      :      6-3/4 in
Overall Length      :      5.165 in
Series      :      EM-FBC
Type      :      Standard
Voltage Rating      :      24 VDC
Torque Rating      :      10.5 ft-lb
Maximum Speed      :      3600 rpm
Bore Diameter      :      5/8 in

DOCUMENTS

  • pdf
    Catalog
    https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://econtent.adhq.com/dam/Original/119/Warner_Electric_5103271008_Catalog.pdf
  • pdf
    Specification Sheet
    https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://econtent.adhq.com/dam/Original/130/Warner_Electric_5370169201_Specification_Sheet.pdf
