- Warner Electric® 5370-169-203
5370-169-203

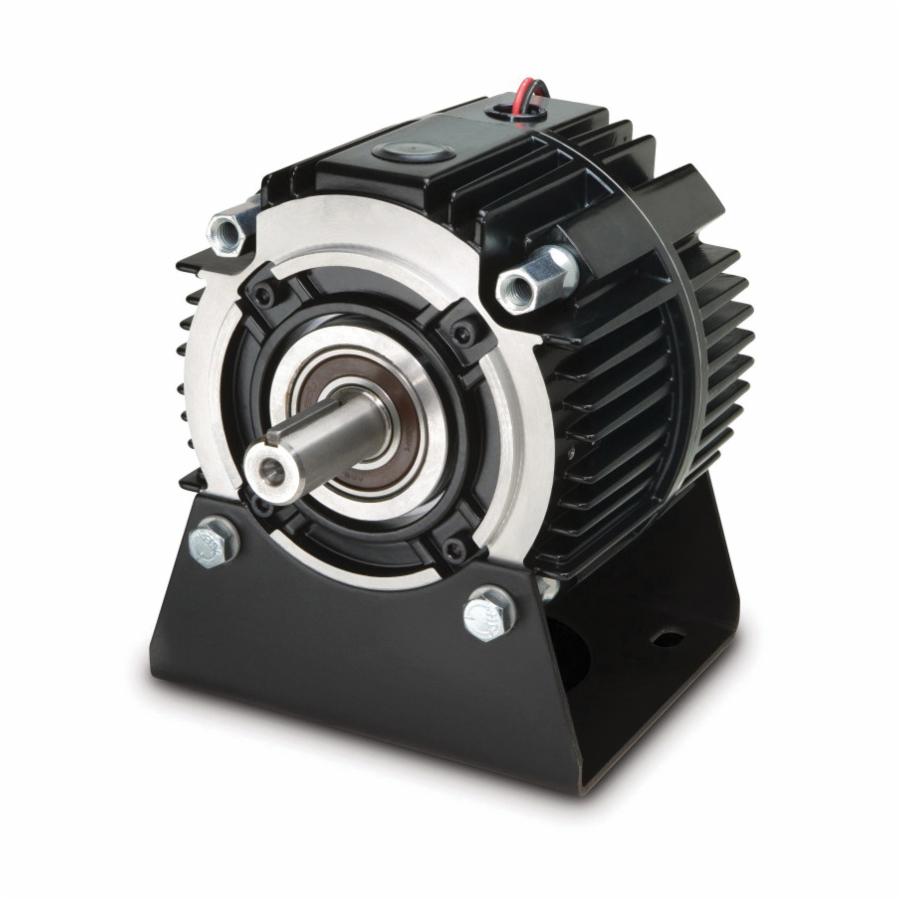

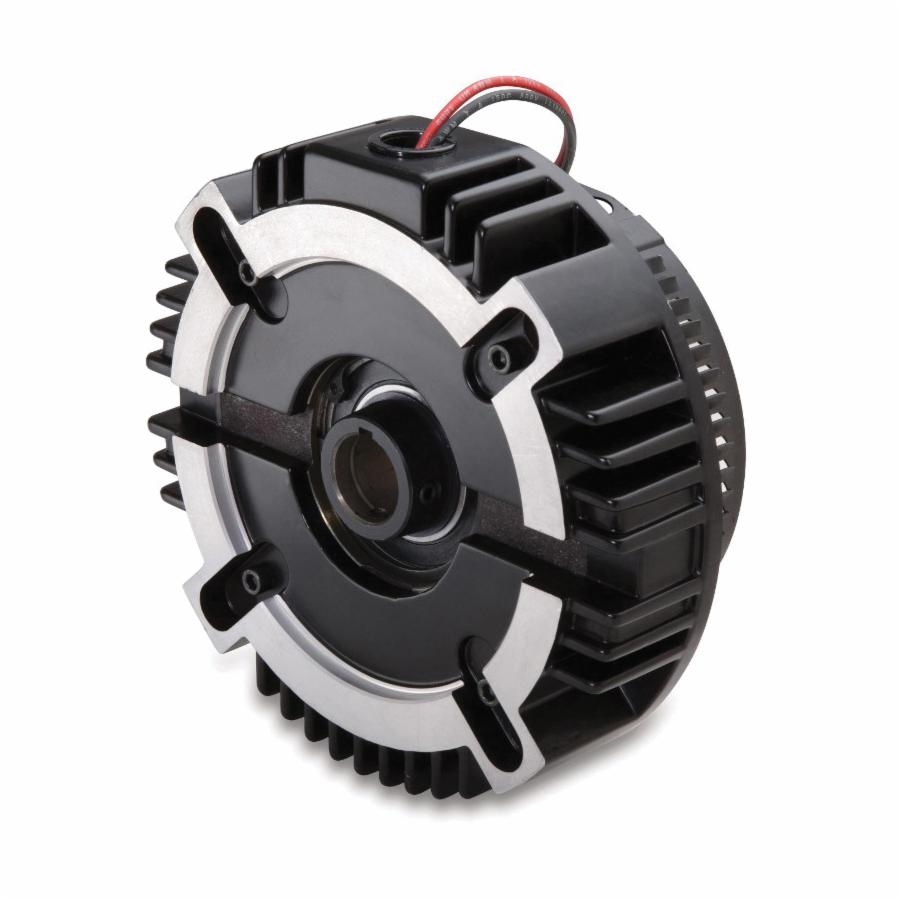

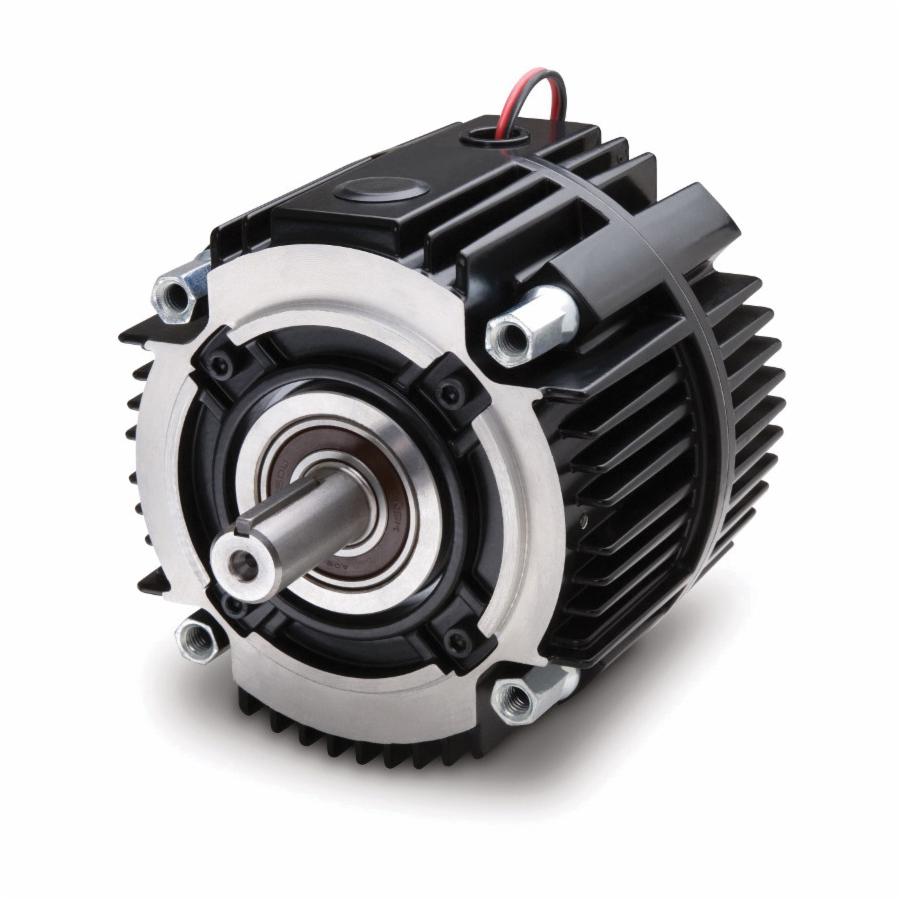

Warner Electric® 5370-169-203 EM Series Standard Electro Module Brake, 24 VDC, 16 ft-lb Torque, 3600 rpm Max, 5/8 in Dia Bore
- CP#:
- Item#: 5370-169-203
- Mfr#: 5370-169-203
- UPC: 786582960863
- Modular design flexibility
- Outstanding controllability
- Fast cycling
- Smooth starts and stops
- Accurate, bidirectional and consistent performance
- Consistent performance
- Complete control capability
- Gen 2 design
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Electro modules are individual clutch or brake units which are assembled together to comprise a clutch, brake or clutch/brake combination. Electro modules can be bolted directly to a NEMA C-face motor or reducer or they can be base mounted for stand alone operation. This module (5370-169-203) features a 56C/48Y NEMA frame, a voltage of 24 VDC and 16 ft-lb torque.
Warner Electric® Electro Module Brake, Standard, Series: EM Series, 5/8 in Bore, 6-3/4 in OD, 5.165 in Overall Length, 16 ft-lb Torque, 24 VDC, 3600 rpm Maximum, C-Face Mounting, Open Enclosure
SPECIFICATIONS
| Enclosure Type | : | Open |
| Mounting Type | : | C-Face |
| Outside Diameter | : | 6-3/4 in |
| Overall Length | : | 5.165 in |
| Series | : | EM Series |
| Type | : | Standard |
| Voltage Rating | : | 24 VDC |
| Torque Rating | : | 16 ft-lb |
| Maximum Speed | : | 3600 rpm |
| Bore Diameter | : | 5/8 in |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://econtent.adhq.com/dam/Original/119/Warner_Electric_5103271008_Catalog.pdf -
Specification Sheet https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://econtent.adhq.com/dam/Original/130/Warner_Electric_5370169201_Specification_Sheet.pdf -
Document https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://econtent.adhq.com/dam/Original/144/Warner_Electric_5370169201_Line_Drawing.pdf -
Manual https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://econtent.adhq.com/dam/Original/21/Warner_Electric_5370270201_Manual.pdf
