RS50SS

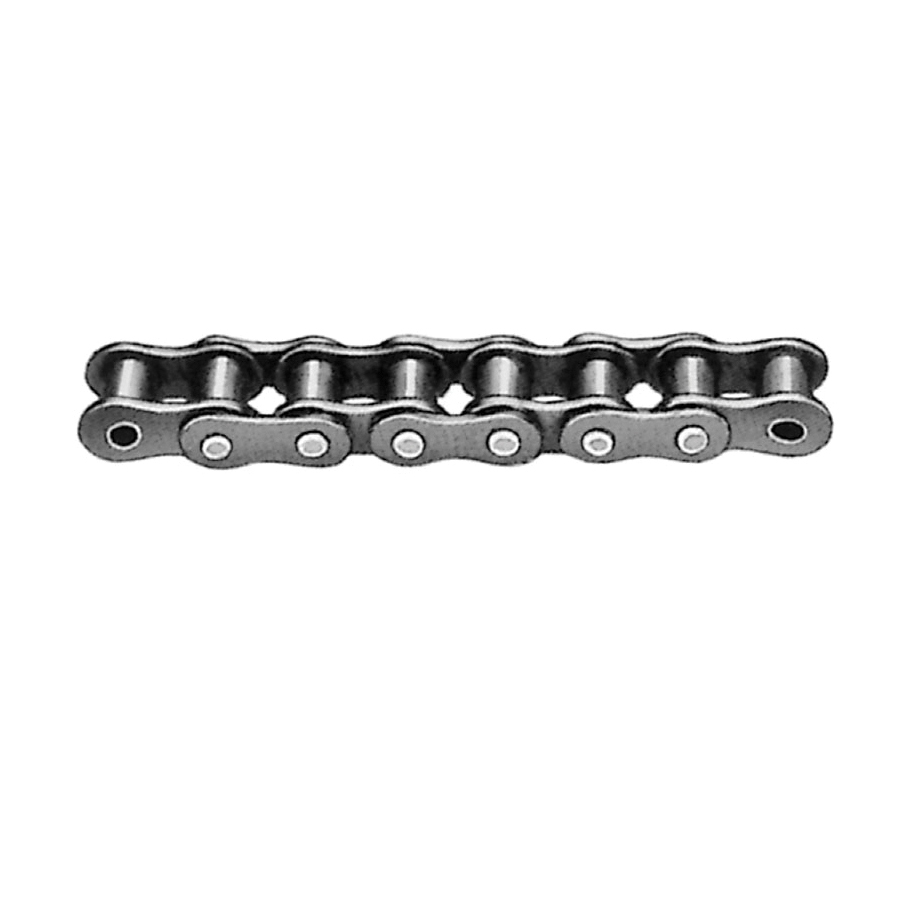

Tsubaki® RS50SS Type RS Roller Chain, 5/8 in Pitch, 0.4 in Dia x 3/8 in W Roller, 304 Stainless Steel
- CP#:
- Item#: RS50SS
- Mfr#: RS50SS
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
SS series chains are made completely of 304 stainless steel. SS series has an excellent resistance to corrosion and temperature extremes. It is generally considered non-magnetic, although some permeability can be found in these chains. This is caused by the cold working of the components during the manufacturing process. If more complete non-magnetic permeability is required, we suggest our NS series.
Tsubaki® Roller Chain, Type RS, Series: SS, 5/8 in Pitch, 0.2 in Pin Diameter, 0.878 in Pin Length, 0.4 in Roller Diameter, 3/8 in Roller Width, 0.591 in Plate Height, 0.08 in Plate Thickness, 1 Strands, 304 Stainless Steel
SPECIFICATIONS
| Number of Strands | : | 1 |
| Pin Diameter | : | 0.2 in |
| Series | : | SS |
| Pitch | : | 5/8 in |
| Material | : | 304 Stainless Steel |
| Plate Height | : | 0.591 in |
| Type | : | Type RS |
| Plate Thickness | : | 0.08 in |
| Pin Length | : | 0.878 in |
| Roller Diameter | : | 0.4 in |
| Roller Width | : | 3/8 in |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Tsubaki_1008_Catalog.pdf -
Specification Sheet https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Tsubaki_RS50SS_Specification_Sheet.pdf
