PL3GAD

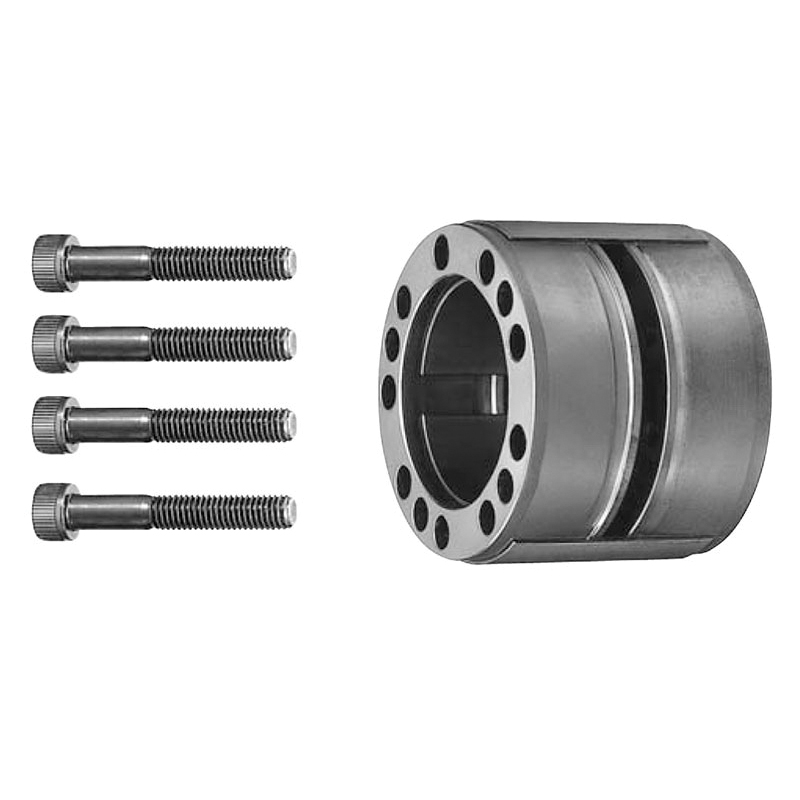

Tsubaki® PL3GAD AD Series Double Torque Keyless Locking Device, 3-7/16 in Dia Bore, 5.1181 in Dia Hub, 3.465 in OAL
- CP#:
- Item#: PL3GAD
- Mfr#: PL3GAD
- UPC: 097039553669
- Over 2 times larger transmissible torque than that of AS series
- Interchangeable with Power-Lock® AS series-Has the same size inside and outside diameter as AS series Power-Lock® in most cases
- Self-centering function straight and narrow hubs can be used with AD series Power-Lock®
- Easy and precise positioning
- Offers the greatest allowable transmissable torque of all Tsubaki® Power-Lock®
- Ideal for multi-strand or large hub sprockets
- Self-centering to control eccentricity
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION

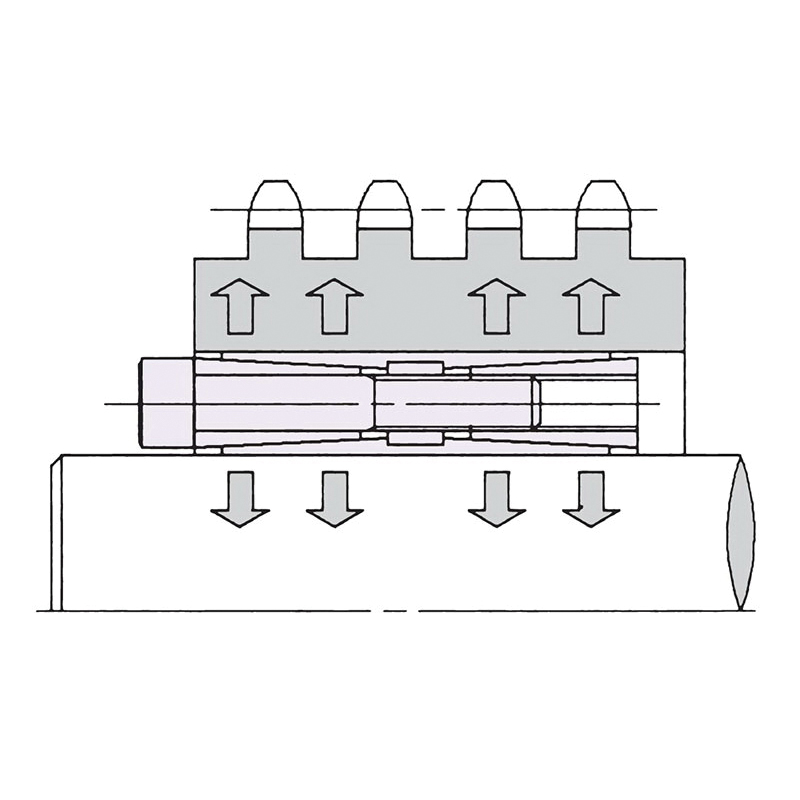

Eliminate backlash damage to keyways from heavy loads. The Tsubaki® Power-Lock® fits tightly around the shaft/hub and is not affected by load reversals. End your high machining expenses for long shaft keyways, splined shafts, threads, grooves and steps the Tsubaki® Power-Lock® offers exacting, slip-free location. Erase the headaches of shrink and press fits. The Tsubaki® Power-Lock® simplifies installation and removal. This easy-to-install unit slides into position and offers a keyless shaft-hub lock that will simultaneously handle both high torque and thrust while increasing your shaft strength. The Power-Lock® is easy to assemble. You only need one tool. It is ideal for locking in large or small sprockets, gears, pulleys, timing cams and rollers. Best of all, the Power-Lock® is in stock for immediate shipment.

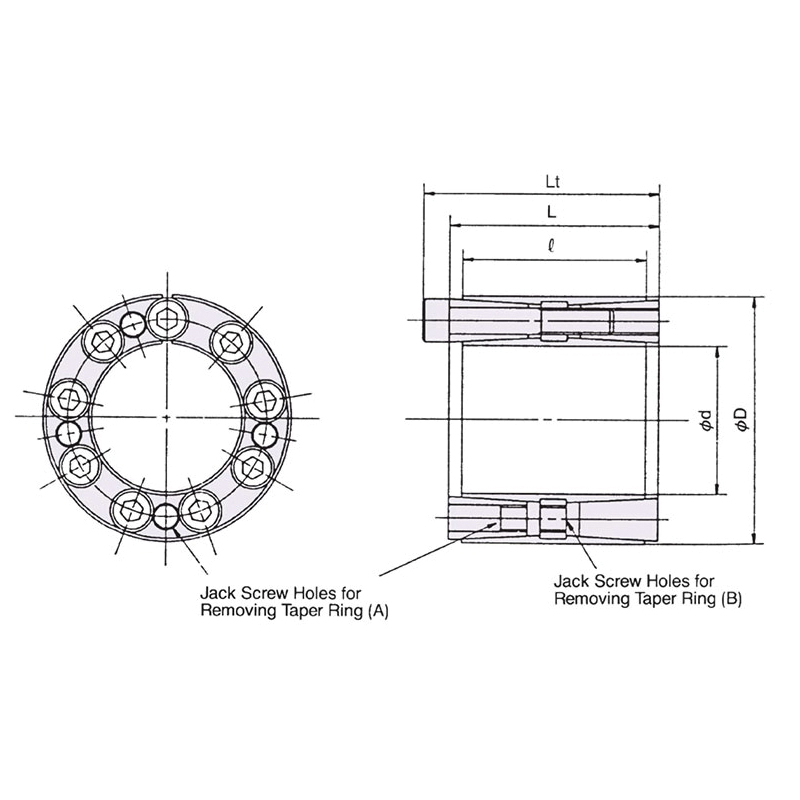

Tsubaki® Power-Lock® Keyless Locking Device, Double Torque, Series: AD Series, 3-7/16 in Bore Dia, 5.1181 in Hub Dia, 12522 ft-lb Transmissible Torque, 87672 lb Transmissible Thrust, 24657 psi Shaft Contact Pressure, 16535 psi Hub Contact Pressure, M10 x 70 Screw, 3.465 in Overall Length, -22 to 392 deg F
SPECIFICATIONS
| Series | : | AD Series |
| Bore Diameter | : | 3-7/16 in |
| Overall Length | : | 3.465 in |
| Shaft Contact Pressure | : | 24657 psi |
| Screw Size | : | M10 x 70 |
| Temperature Rating | : | -22 to 392 deg F |
| Transmissible Torque | : | 12522 ft-lb |
| Hub Contact Pressure | : | 16535 psi |
| Type | : | Double Torque |
| Transmissible Thrust | : | 87672 lb |
| Hub Diameter | : | 5.1181 in |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Tsubaki_PL007X012TF_Catalog.pdf
