- Tsubaki® PL110X155 AS-SS
PL110X155 AS-SS

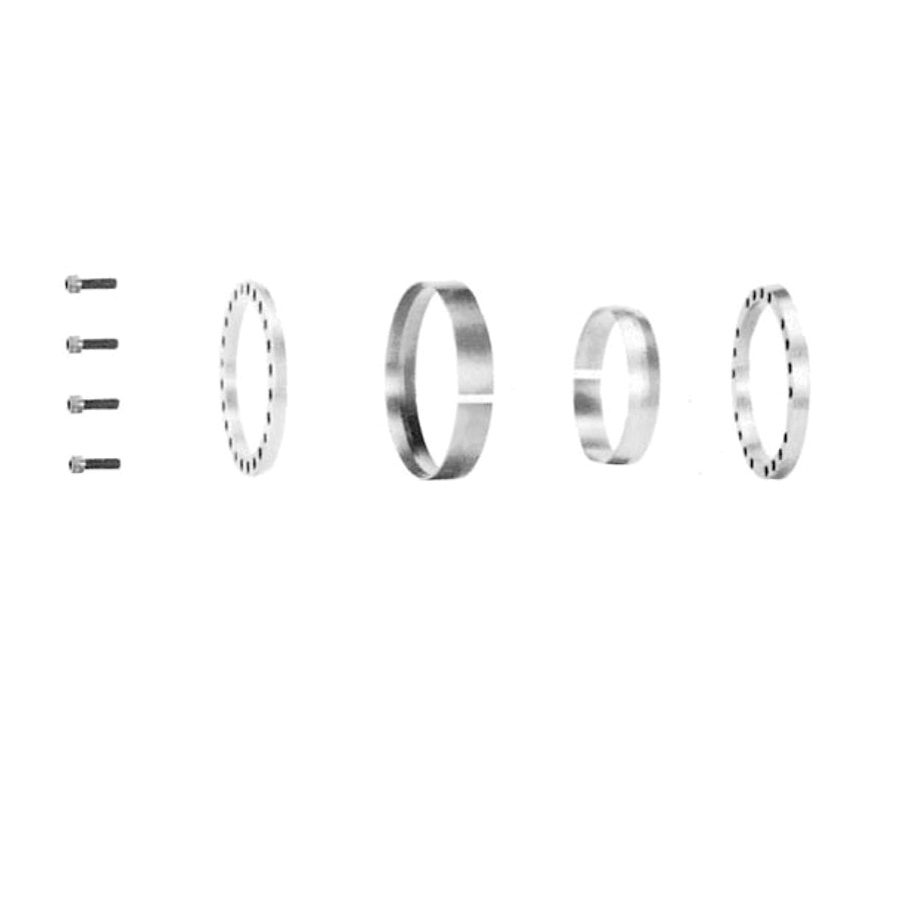

Tsubaki® Power-Lock® PL110X155 AS-SS AS Metric Keyless Locking Bushing, 4.331 in Dia Bore, 6.102 in OD, 1.772 in OAL, Stainless Steel
- CP#:
- Item#: PL110X155 AS-SS
- Mfr#: PL110X155 AS-SS
- Multi-purpose
- Low maching costs
- Easy to install and remove
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
The Tsubaki® Power-Lock® is a well-engineered, adjustable and affordable device that solves engineering and maintenance difficulties associated with other connection alternatives. Tsubaki® Power-Lock® is a shaft to hub friction connection that relies on concentric surface pressure to affix gears, sprockets and other drive components to a motor-driven shaft. Power-Lock® improves the connection of a drive component to a shaft. It helps to eliminate problems with keyway connections and limitations for QD® and tapered bushings. This frictional, keyless system enables transmission of high torque and axial loads and accommodates reversing, dynamic or shock loading.
Tsubaki® Power-Lock® Keyless Locking Bushing, Series: AS Metric, 4.331 in Bore Dia, 6.102 in Outside Dia, 6859 ft-lb Transmissible Torque, 38060 lb Transmissible Thrust, 21466 psi Shaft Contact Pressure, 15229 psi Hub Contact Pressure, M12 x 30 Screw, 1.772 in Overall Length, -22 to 392 deg F, Stainless Steel
SPECIFICATIONS
| Series | : | AS Metric |
| Bore Diameter | : | 4.331 in |
| Outside Diameter | : | 6.102 in |
| Overall Length | : | 1.772 in |
| Material | : | Stainless Steel |
| Hub Contact Pressure | : | 15229 psi |
| Temperature Rating | : | -22 to 392 deg F |
| Shaft Contact Pressure | : | 21466 psi |
| Screw Size | : | M12 x 30 |
| Transmissible Thrust | : | 38060 lb |
| Transmissible Torque | : | 6859 ft-lb |
DOCUMENTS
-
Specification Sheet https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Tsubaki_PL110X155_AS_SS_Specification_Sheet.pdf -
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Tsubaki_PL3_8KE_Catalog.pdf
