Tsubaki® BL1046RB
Tsubaki®

Tsubaki® BL1046RB

loading
Tsubaki® BL1046RB
Tsubaki®
Email Print

BL1046RB

Tsubaki® BL1046RB BL Series Leaf Chain, 10 ft OAL, 1-1/4 in Pitch, Steel

  • Item#: BL1046RB
  • Mfr#: BL1046RB
  • UPC: 097039479617
    • The outside dimensions of the plates are the same as ANSI standard RS roller chain inner plates of the same pitch
    • The plate thickness is the same as one size up Tsubaki® RS roller chain
    • BL series can in most instances replace the older AL series leaf chains
    • Riveted pin construction
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading

DESCRIPTION

Leaf chains generally have greater tensile strength than roller chains and run over sheaves rather than sprockets. They are most often used as counterweight chains for machine tools, elevator and oven doors, fork lift truck masts, spinning frames and similar lifting or balancing applications.

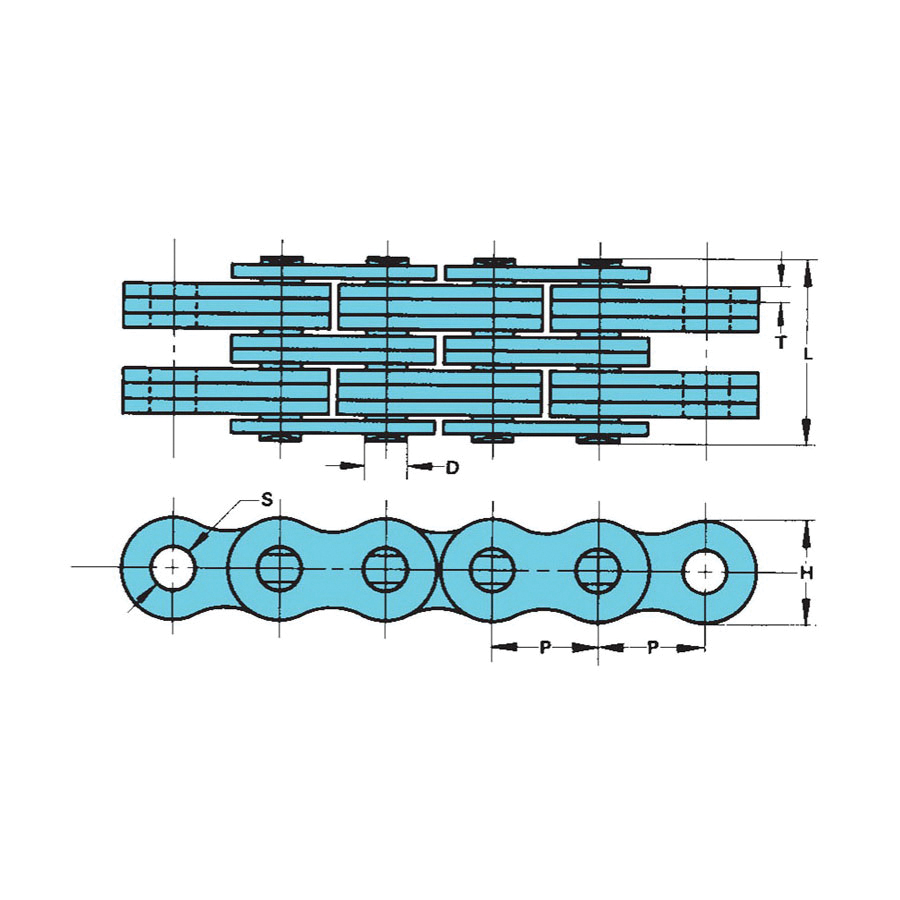

Tsubaki® Leaf Chain, Series: BL Series, 1-1/4 in Pitch, 4 x 6 Lacing, 0.437 in Pin Dia, 2.26 in Pin Length, 1.185 in Plate Height, 0.189 in Plate Thickness, 2 Strands, 63400 lb Tensile, 10 ft Overall Length, Steel

SPECIFICATIONS

Series      :      BL Series
Lacing      :      4 x 6
Number of Strands      :      2
Pin Diameter      :      0.437 in
Overall Length      :      10 ft
Pitch      :      1-1/4 in
Material      :      Steel
Plate Height      :      1.185 in
Tensile Strength      :      63400 lb
Pin Length      :      2.26 in
Plate Thickness      :      0.189 in

DOCUMENTS

  • pdf
    Specification Sheet     https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Tsubaki_BL1023RB_Specification_Sheet.pdf
