Tsubaki®
60P13

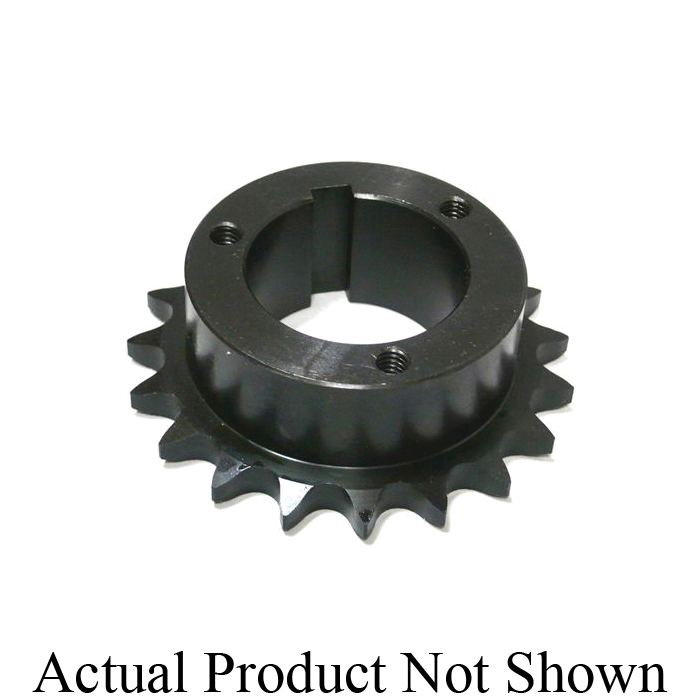

Tsubaki® 60P13 Roller Chain Sprocket, 3.493 in OD, #60 Chain, 13 Teeth, 3.134 in Dia Pitch, Carbon Steel
- Item#: 60P13
- Mfr#: 60P13
- UPC: 097039782892
- Type B - Hub extension on one-side
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Keep your system on the cutting edge with Tsubaki®, LLC. sprockets and discover the difference quality makes. Tsubaki® sprockets are manufactured from top-grade , heat treated steel to withstand heavy shock loading, resist abrasion and provide long service life. Alloy and stainless steel sprockets are also available for extra corrosion resistance and food-grade applications.
Tsubaki® Roller Chain Sprocket, 3.493 in Outside Dia, #60 Chain, 13 Teeth, 3/4 in Pitch, 3.134 in, 3 in Hub Dia, 1-5/16 in Length Through Bore, Split Taper P1 Bushing, Carbon Steel
SPECIFICATIONS
| Bushing Type | : | Split Taper P1 |
| Hub Diameter | : | 3 in |
| Length Through Bore | : | 1-5/16 in |
| Outside Diameter | : | 3.493 in |
| Chain Size | : | #60 |
| Number of Teeth | : | 13 |
| Pitch | : | 3/4 in |
| Material | : | Carbon Steel |
