Tsubaki® 60LHPB
Tsubaki®

Tsubaki® 60LHPB

loading
Tsubaki® 60LHPB
Tsubaki®
Email Print

60LHPB

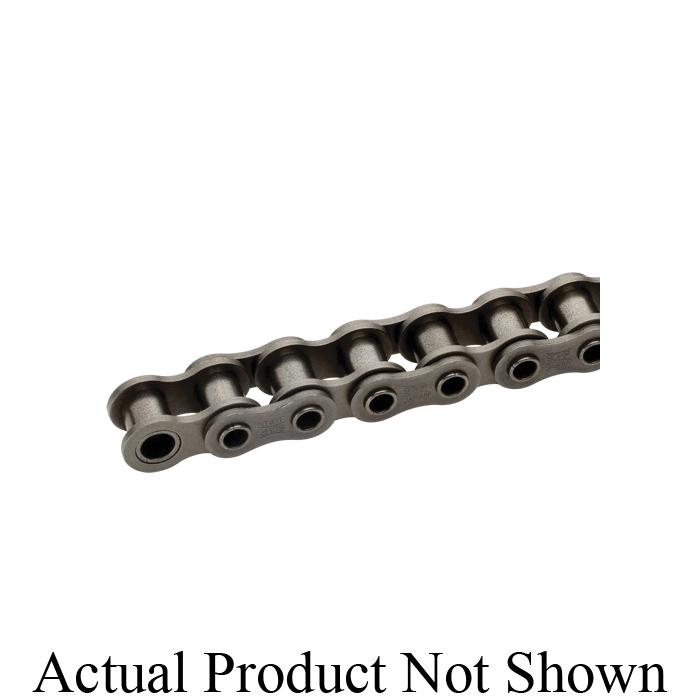

Tsubaki® 60LHPB C-Lambda® Hollow Pin Chain, 10 ft OAL, 3/4 in Pitch

  • Item#: 60LHP10FT LAMBDA
  • Mfr#: 60LHPB
  • UPC: 09703964353
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading

DESCRIPTION

Lambda® chain is your alternative to costly lubrication maintenance. The self-lubricating feature of Lambda® can directly replace existing standard chain with practically no loss of strength. As an added bonus, eliminating lubrication in your system means no product contamination.

Tsubaki® Hollow Pin Chain, Series: C-Lambda®, 3/4 in Pitch, 0.33 in Pin Dia, 0.713 in Plate Height, 0.094 in Plate Thickness, 5950 lb Tensile, 10 ft Overall Length

SPECIFICATIONS

Pin Diameter      :      0.33 in
Series      :      C-Lambda®
Overall Length      :      10 ft
Pitch      :      3/4 in
Plate Height      :      0.713 in
Plate Thickness      :      0.094 in
Tensile Strength      :      5950 lb

DOCUMENTS

  • pdf
    Instruction/Installation Manual     https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Tsubaki_40CTACL_Manual.pdf
  • pdf
    Catalog     https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Tsubaki_E1_Catalog.pdf
