50BB15H

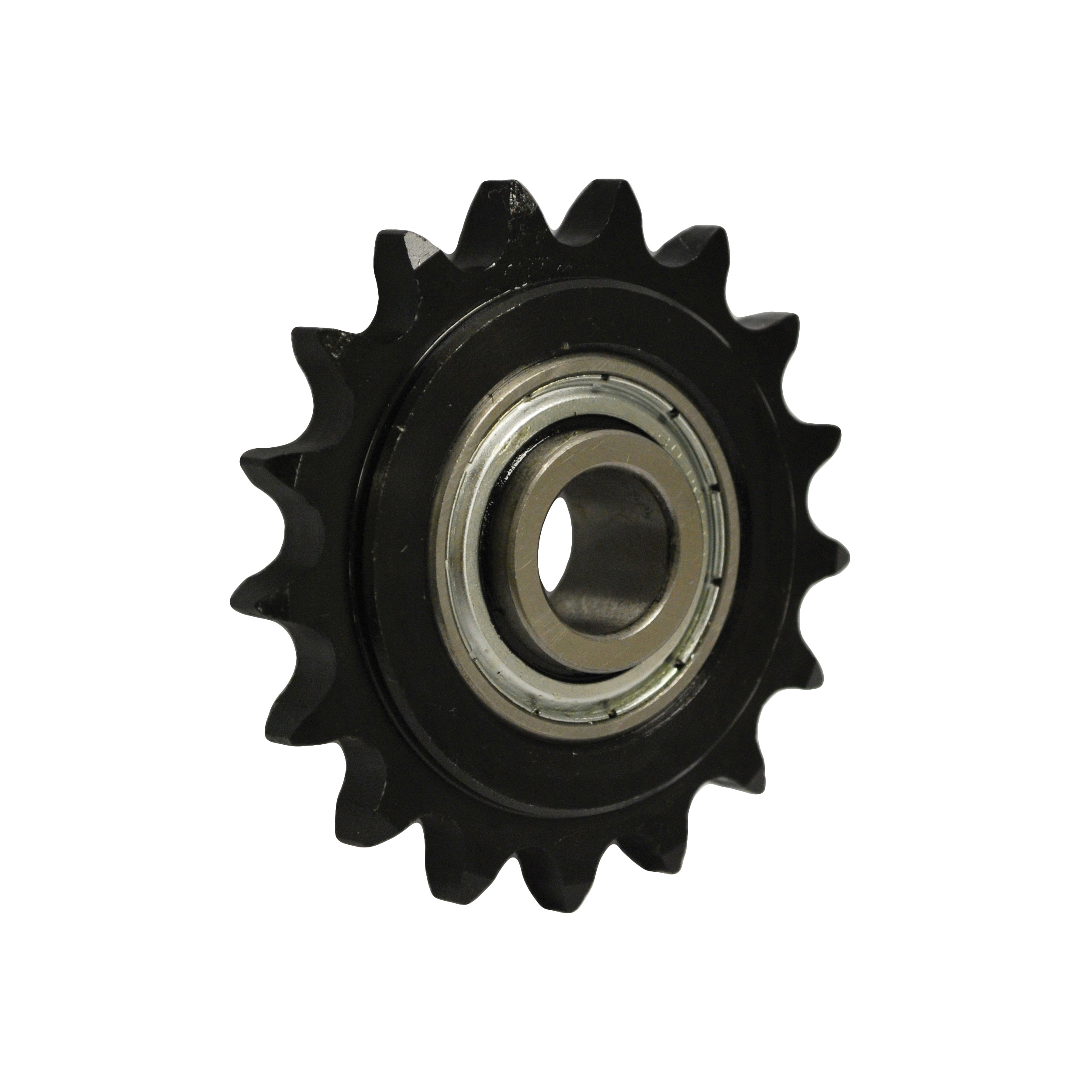

Tsubaki® 50BB15H Ball Bearing Type C Idler Sprocket, 0.638 in Dia Bore, 3.32 in OD, 50 Chain, 15 Teeth, Carbon Steel
- CP#:
- Item#: 50BB15H
- Mfr#: 50BB15H
- UPC: 097039905314
- Obtain proper chain tension when either driving or driven shaft is not adjustable
- Guide chain around an obstruction
- Prevent whipping action in the slack span of chain
- Bring about greater chain wrap around a small sprocket, particularly if it is the lower sprocket in a vertical drive
- Take up slack chain caused by normal chain wear
- Provide for reversed direction of rotation of a sprocket in contact with the outside of the chain
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
This type of sprocket is used in applications where the drive chain may experience slack due to long lengths, non-adjustability of the driven shaft or where the chain has to be guided around an obstruction. Use of idler sprockets prevents chain whipping and uneven distribution of load. This type of sprocket can also be used in applications where the drive chain may experience direction reversal or in applications where the chain may experience whipping. Having idler sprockets touching the outside of the chain would be beneficial.
Tsubaki® Idler Sprocket, Ball Bearing Type C, 0.638 in Bore Dia, 3.32 in Outside Dia, 50 Chain, 15 Teeth, 3.006 in, 1/4 in Screw, 3/16 x 3/32 in Keyway, 0.72 in Length Through Bore, Carbon Steel, Black Oxide
SPECIFICATIONS
| Bore Diameter | : | 0.638 in |
| Outside Diameter | : | 3.32 in |
| Chain Size | : | 50 |
| Number of Teeth | : | 15 |
| Material | : | Carbon Steel |
| Pitch Diameter | : | 3.006 in |
| Finish | : | Black Oxide |
| Length Through Bore | : | 0.72 in |
| Screw Size | : | 1/4 in |
| Type | : | Ball Bearing Type C |
| Keyway Size | : | 3/16 x 3/32 in |
DOCUMENTS
-
Specification Sheet https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Tsubaki_50BB15H_Specification_Sheet.pdf -
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Tsubaki_JA_Catalog.pdf
