Tsubaki®
40CURB

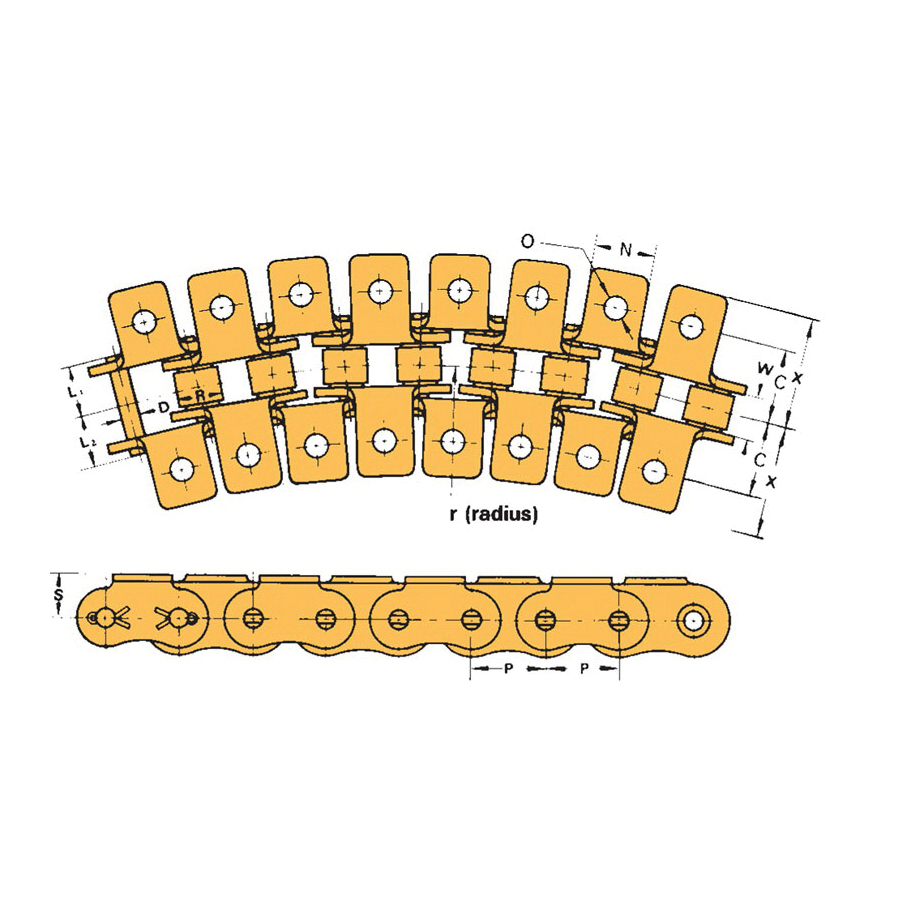

Tsubaki® 40CURB Single Pitch Curved Chain, 10 ft OAL, 1/2 in Pitch, 0.312 in Dia x 0.313 in W Roller, 13 in Bend Radius, 0.059 in THK Plate
- Item#: 40CURB 10FT
- Mfr#: 40CURB
- UPC: 097039182258
- Riveted pin construction
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Tsubaki® Curved Chain, Single Pitch, 1/2 in Pitch, 0.156 in Pin Dia, 0.717 in Pin Length, 0.312 in Roller Dia, 0.313 in Roller Width, 0.409 in Plate Height, 13 in Bend Radius, 0.059 in Plate Thickness, 3480 lb Tensile, 10 ft Overall Length
SPECIFICATIONS
| Pin Diameter | : | 0.156 in |
| Pin Length | : | 0.717 in |
| Plate Height | : | 0.409 in |
| Tensile Strength | : | 3480 lb |
| Type | : | Single Pitch |
| Overall Length | : | 10 ft |
| Pitch | : | 1/2 in |
| Roller Diameter | : | 0.312 in |
| Bend Radius | : | 13 in |
| Plate Thickness | : | 0.059 in |
