GE 70ES

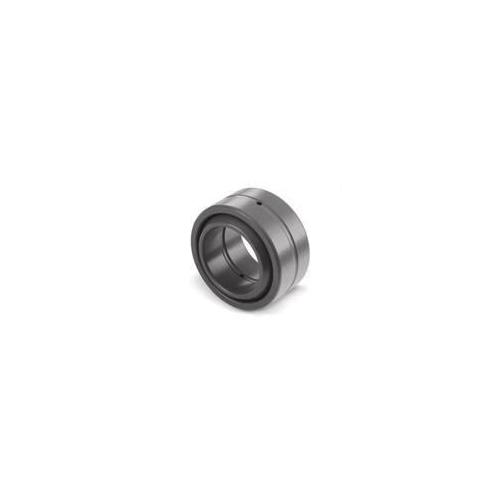

TRITAN® GE 70ES GE Series General Purpose Radial Spherical Plain Bearing, 70 mm Dia Bore, 105 mm OD, 40 mm W, 1560 kN Load
- CP#:
- Item#: GE 70ES
- Mfr#: GE 70ES
- Single fracture design
- Sliding surface - steel on steel MoS2 treated
- Relubricatable through annular grooves and oil holes in inner and outer rings
- 313 kN dynamic/1560 kN static load
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Spherical Plain Bearings utilize inner and outer rings with spherical sliding surfaces and can accommodate heavy radial loads and bi-directional axial loads at the same time. They are produced in a wide variety of designs and materials to satisfy diverse demands such as those in the automation, construction, mining, transportation, off-hig-way equipment, farming and machine tool applications. Standard designs utilize carbon chromium steel on steel which is hardened, phosphate and treated with Molybdenum Disulfide ( MoS2 ) to reduce friction. Most designs can be relubricated through annular grooves and lubrication holes in the outer rings. Bearings are also available in self-lubricating designs utilizing PTFE lined races offering a maintenance-free solution with lower friction. For corrosive environments, many sizes can be supplied in stainless steel construction.
TRITAN® Spherical Plain Bearing, General Purpose Radial, Series: GE Series, 70 mm Bore, 105 mm OD, 40 mm Width, 1560 kN Load, Hardened Carbon Chromium Steel Bearing, -50 to 300 deg F
SPECIFICATIONS
| Series | : | GE Series |
| Bearing Material | : | Hardened Carbon Chromium Steel |
| Load Capacity | : | 1560 kN |
| Outside Diameter | : | 105 mm |
| Width | : | 40 mm |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/TRITAN_30002RSPRX_Catalog.pdf -
Specification Sheet https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/TRITAN_GE100ES_Specification_Sheet.pdf -
Warranty Information https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/TRITAN_HCFBSS20516ASS_Warranty.pdf
