TRITAN® 61901 2RS PRX
TRITAN®

TRITAN® 61901 2RS PRX

loading
TRITAN® 61901 2RS PRX
TRITAN®
Email Print

61901 2RS PRX

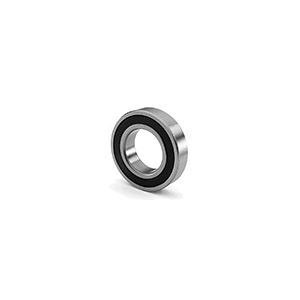

TRITAN® 61901 2RS PRX 61900 Deep Groove Ball Bearing, 12 mm Dia Bore, 24 mm OD, 1 Rows, 6 mm W, 650 lb Load

  • Item#: 61901 2RS PRX
  • Mfr#: 61901 2RS PRX
    • 650 lb dynamic/330 lb static load
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading

DESCRIPTION

Grooved raceways on inner and outer rings sustain moderate axial loads in both directions in addition to radial loads. Balls separated by steel cages permit high speed operation. Constructed from high-quality SAE-52100 chromium bearing steel. Available open, sealed (2RS) or shielded (ZZ), providing high speed operation in a wide variety of applications. In addition to our standard items and configurations listed below, BL® excels at manufacturingcustomizedbearings to meet specific application requirements.

TRITAN® Deep Groove Ball Bearing, Series: 61900, 12 mm Bore, 24 mm OD, 1 Rows, 6 mm Width, Double Seal Closure, 650 lb Load, Steel Bearing, Rubber Seal, Steel Cage, 19000 rpm Grease/22000 rpm Oil Maximum, Polished Chrome

SPECIFICATIONS

Series      :      61900
Bearing Material      :      Steel
Finish      :      Polished Chrome
Load Capacity      :      650 lb
Maximum Speed      :      19000 rpm Grease/22000 rpm Oil
Outside Diameter      :      24 mm
Number of Rows      :      1
Seal Material      :      Rubber
Width      :      6 mm

DOCUMENTS

  • pdf
    Full Engineering Drawing     https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Tritan_619012RSPRX_Full_Engineering_Drawing.pdf
