5209 ZZ/C3 PRX

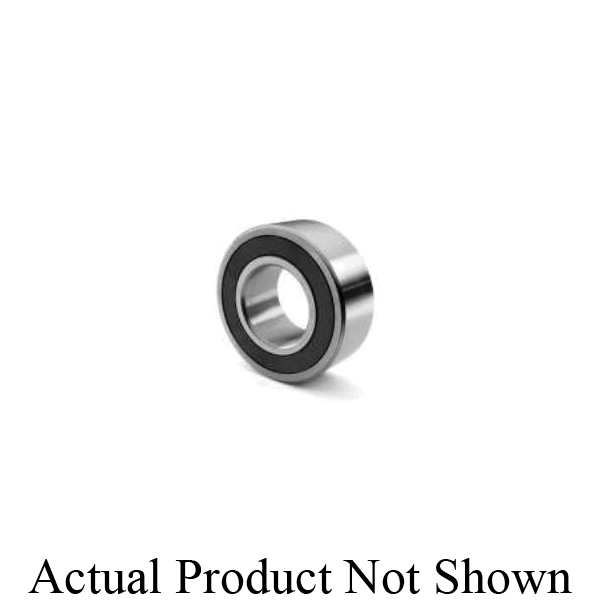

TRITAN® 5209 ZZ/C3 PRX 5200 Light Duty Angular Contact Ball Bearing, 45 mm Dia Bore, 85 mm OD, 2 Rows, 30.2 mm W, 10800 lb Load

  • Item#: 5209ZZSBC
  • Mfr#: 5209 ZZ/C3 PRX
  • UPC: 888569102911
    • 10800 lb dynamic/8300 lb static load
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading

DESCRIPTION

Double Row Angular Contact Bearings are similar in design to two single row angular contact bearings mounted together, but require less axial space. This versatile design can accommodate radial loads as well as axial loads acting in both directions. ~~ These bearings are produced with high quality 52100 bearing steel and hardened to provide durability and long life and are lubricated for life with a high quality multipurpose grease and have 2 metallic Shields (ZZ) both to retain lubricant and protect the bearing from contaminants. They are constructed with glass reinforced polyamide cages for smooth & quiet operation.

TRITAN® Angular Contact Ball Bearing, Light Duty, Series: 5200, 45 mm Bore, 85 mm OD, 2 Rows, 30.2 mm Width, Double Shield Closure, 10800 lb Load, Steel Bearing, Polyamide 66 Cage, 4400 rpm Grease/5900 rpm Oil Maximum, -20 to 248 deg F, Polished Chrome

SPECIFICATIONS

Series      :      5200
Bearing Material      :      Steel
Finish      :      Polished Chrome
Load Capacity      :      10800 lb
Maximum Speed      :      4400 rpm Grease/5900 rpm Oil
Outside Diameter      :      85 mm
Number of Rows      :      2
Width      :      30.2 mm

DOCUMENTS

  • pdf
    Catalog     https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/BL_52002RSC3PRX_Catalog.pdf
