TRITAN® 5208 ZZ/C3 PRX
TRITAN®

TRITAN® 5208 ZZ/C3 PRX

loading
TRITAN® 5208 ZZ/C3 PRX
TRITAN®
Email Print

5208 ZZ/C3 PRX

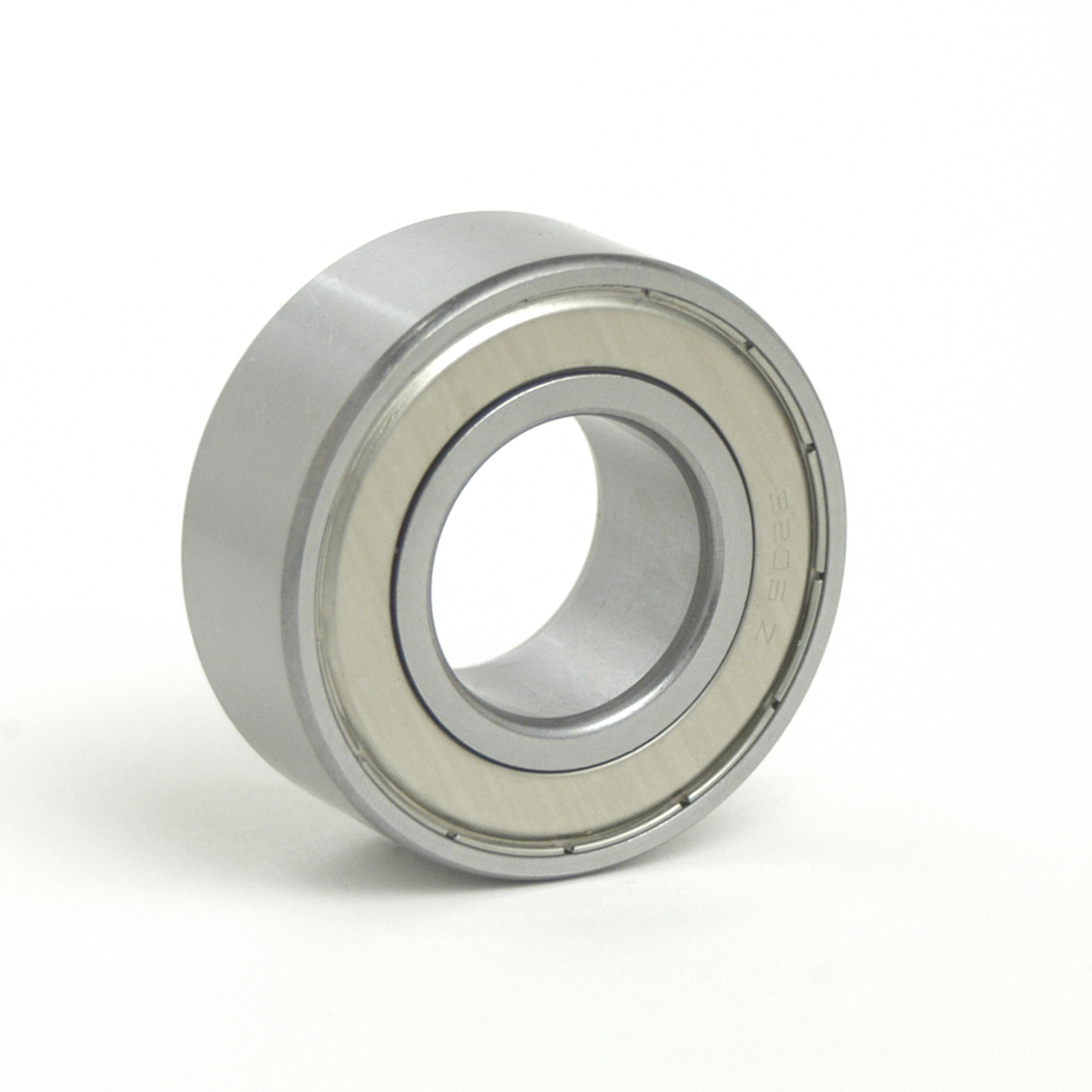

TRITAN® 5208 ZZ/C3 PRX 5200 Angular Ball Bearing, 40 mm Dia Bore, 80 mm Dia Outside, 2 Rows, 30.2 mm W, 9600 lb Load

  • Item#: 5208 ZZ/C3 PRX
  • Mfr#: 5208 ZZ/C3 PRX
    • Conrad Type - No Fill Slot
    • Double Row to accommodate heavy radial loads combined with thrust loads
    • Compact design replacing 2 single row bearings in less axial space
    • Less sensitive to axial overloading
    • Improved wear resistance
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading

DESCRIPTION

Double Row Angular Contact Bearings are similar in design to two single row angular contact bearings mounted together, but require less axial space. This versatile design can accommodate radial loads as well as axial loads acting in both directions. ~~ These bearings are produced with high quality 52100 bearing steel and hardened to provide durability and long life and are lubricated for life with a high quality multipurpose grease and have 2 metallic Shields (ZZ) both to retain lubricant and protect the bearing from contaminants. They are constructed with glass reinforced polyamide cages for smooth & quiet operation.

TRITAN®, 5208 ZZ/C3 PRX, Ball Bearing, Angular, Series: 5200, 40 mm Bore, 80 mm OD, 2 Rows, 30.2 mm Width, 9600 lb Load, Steel Bearing, Rubber Seal, Polyamide Cage, 4900 rpm Grease/6600 rpm Oil Maximum

SPECIFICATIONS

Series      :      5200
Bearing Material      :      Steel
Load Capacity      :      9600 lb
Maximum Speed      :      4900 rpm Grease/6600 rpm Oil
Outside Diameter      :      80 mm
Number of Rows      :      2
Seal Material      :      Rubber
Width      :      30.2 mm
