- TRITAN® 2101100162
2101100162

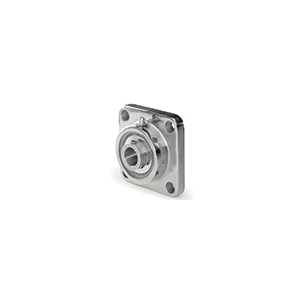

TRITAN® UCFSS206-20SS Standard-Duty Ball Bearing Unit With Wide Inner Ring, 1-1/4 in Dia Bore, 3.2677 in L Bolt Center-to-Center, 4-Bolt Square Flange Mount, 4.252 in OAL/Dia
- CP#:
- Item#: UCFSS206-20SS
- Mfr#: 2101100162
- UPC: 888569052049
- Four-bolt, corrosion resistant units for clean operating environments and frequent washdowns
- High quality 304 stainless steel housings
- Solid base, smooth polished surfaces
- Lubricated with food grade grease
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Corrosion resistant units for applications requiring clean operating environments and frequent washdowns such as food processing, packaging, pharmaceutical production and handling. Features high quality 304 stainless steel housing and wide inner ring bearing, solid base and smooth polished surfaces. Lubricated with food grade grease.
TRITAN® Ball Bearing Unit, Standard-Duty, Series: UCFSS206, 1-1/4 in Bore, 3.2677 in Bolt Center-to-Center Length, 4-Bolt Square Flange Mounting, 4.252 in Overall Length/Diameter, 1.5827 in Overall Depth, 4.252 in Overall Height, Set Screw Locking Device, 304 Stainless Steel Bearing, 3507 lb Dynamic/2540 lb Static Load
SPECIFICATIONS
| Bolt Center-to-Center Length | : | 3.2677 in |
| Series | : | UCFSS206 |
| Bearing Material | : | 304 Stainless Steel |
| Flange Mounting Type | : | 4-Bolt Square |
| Locking Device | : | Set Screw |
| Load Capacity | : | 3507 lb Dynamic/2540 lb Static |
| Overall Depth | : | 1.5827 in |
| Overall Height | : | 4.252 in |
| Overall Length/Diameter | : | 4.252 in |
DOCUMENTS
-
Line Drawing https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/TRITAN_UCFSS20620SS_Line_Drawing.pdf
