- TRITAN® 2101066013
2101066013

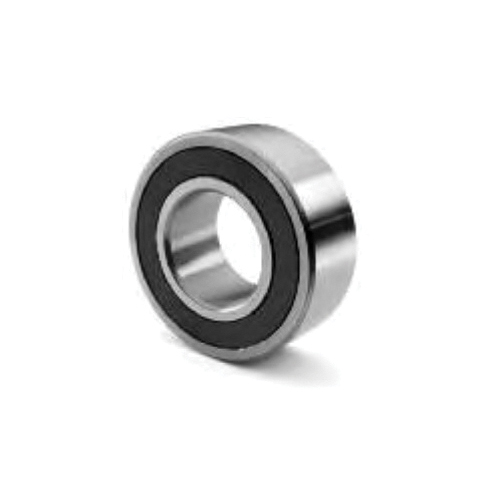

TRITAN® 5206/C3 5200 Light Duty Angular Contact Ball Bearing, 30 mm Dia Bore, 62 mm OD, 2 Rows, 23.8 mm W, 6400 lb Load
- CP#:
- Item#: 5206BL
- Mfr#: 2101066013
- Standard bearings utilize high quality 52100 through hardened steel
- Open bearings are supplied with a coating of light oil and are used in oil bath and oil mist environments
- 6400 lb dynamic/4600 lb static load
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Deep groove ball bearings incorporate grooved raceways on both the inner ring and outer ring, which enable them to sustain moderate axial loads in both directions in addition to radial loads. Balls are separated by steel cages, permitting high speed operation. Double row angular contact bearings are designed to accommodate combined simultaneous acting axial and radial loads. Balls are normally separated by high speed polyamide cages. Most bearings are prelubricated with Mobil Polyrex™ EM grease or Chevron SRI-2, which provides excellent lubrication up to 350 deg F. Sealed and shielded bearings are lubricated for life.
TRITAN® Angular Contact Ball Bearing, Light Duty, Series: 5200, 30 mm Bore, 62 mm OD, 2 Rows, 23.8 mm Width, Open Closure, 6400 lb Load, 52100 Steel Bearing, Polyamide Cage, 8400 rpm Maximum, -20 to 248 deg F
SPECIFICATIONS
| Series | : | 5200 |
| Bearing Material | : | 52100 Steel |
| Load Capacity | : | 6400 lb |
| Maximum Speed | : | 8400 rpm |
| Outside Diameter | : | 62 mm |
| Number of Rows | : | 2 |
| Width | : | 23.8 mm |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/BL_GW208PPB5_Catalog.pdf -
Warranty Information https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/BL_N01_Warranty.pdf
