- TRITAN® 2101061523
2101061523

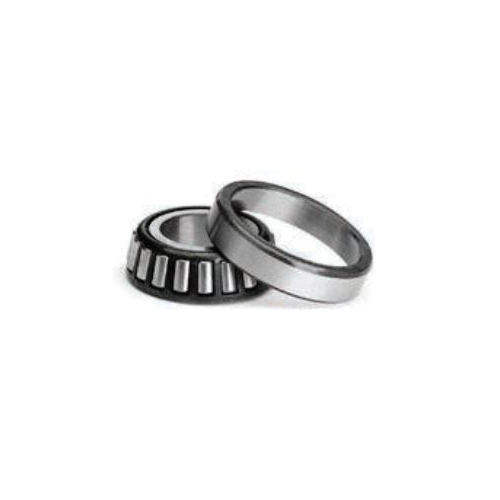

TRITAN® 32014X Tapered Roller Bearing, 70 mm Dia Bore, 110 mm OD, 25 mm W, 32148 lb Load
- CP#:
- Item#: 32014X
- Mfr#: 2101061523
- 21492 lb dynamic/32148 lb static load
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Taper Roller Bearings utilize cone shaped rollers in an inner ring which rolls on tapered outer ring surfaces. The rollers are guided by a cage and the projection lines of the tapered surfaces meet at a common point on the bearing axis. Their design makes them suitable for combined (radial and axial) loads and heavy axial loads determined by the contact angle. Standard designs are typically separable and most commonly designed with a cone (inner ring with cage and rollers), which can be mounted separately from the cup (outer ring). This design allows for great flexibility in assembly and is one of the key advantages to this type of bearing. Unlike the common inch series taper roller bearings, metric Tapered Roller Bearings are sold exclusively as a complete cup and cone set.
TRITAN® Tapered Roller Bearing, 70 mm Bore, 110 mm OD, 25 mm Width, 32148 lb Load, 3200 rpm Grease/4300 rpm Oil Maximum, 250 deg F
SPECIFICATIONS
| Load Capacity | : | 32148 lb |
| Maximum Speed | : | 3200 rpm Grease/4300 rpm Oil |
| Outside Diameter | : | 110 mm |
| Width | : | 25 mm |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/TRITAN_30202_Catalog.pdf -
Warranty Information https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/TRITAN_HCFBSS20516ASS_Warranty.pdf
