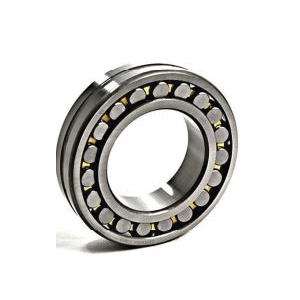

TRITAN® 23132 CAM/C3W33 23100 Light Straight Bore Spherical Roller Bearing, 160 mm Dia Bore, 270 mm OD, 2 Rows, 86 mm W, 328223 lb Load
- CP#:
- Item#: 23132 CAM/C3W33
- Mfr#: 2101058537
- UPC: 888569081056
- One-piece CAM bronze cage
- W33 oil hole and groove in OD
- 195584 lb dynamic/328223 lb static load
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Spherical roller bearings utilize two rows of rollers operating in a common sphered outer ring raceway. This design provides a self aligning solution that is the combination of a radial and thrust bearing that operates even if the shaft and housing are, or become, misaligned under load. This high capacity bearing performs consistently in adverse conditions such as shock loads, shaft deflections, marginal lubrication, extreme speeds, contamination and critical application stresses. BL® spherical roller bearings are constructed with a bronze, one-piece CAM cage. As compared to the older style MB cage, this design allows for a longer roller and higher overall load-carrying capacity, providing better performance and greater life.
TRITAN® Spherical Roller Bearing, Straight Bore, Series: 23100 Light, 160 mm Bore, 270 mm OD, 2 Rows, 86 mm Width, Open Closure, 328223 lb Load, Steel Bearing, Bronze Cage, 900 rpm Grease/1200 rpm Oil Maximum, -40 to 212 deg F
SPECIFICATIONS
| Series | : | 23100 Light |
| Bearing Material | : | Steel |
| Load Capacity | : | 328223 lb |
| Maximum Speed | : | 900 rpm Grease/1200 rpm Oil |
| Outside Diameter | : | 270 mm |
| Number of Rows | : | 2 |
| Width | : | 86 mm |
