YTU2 7/16

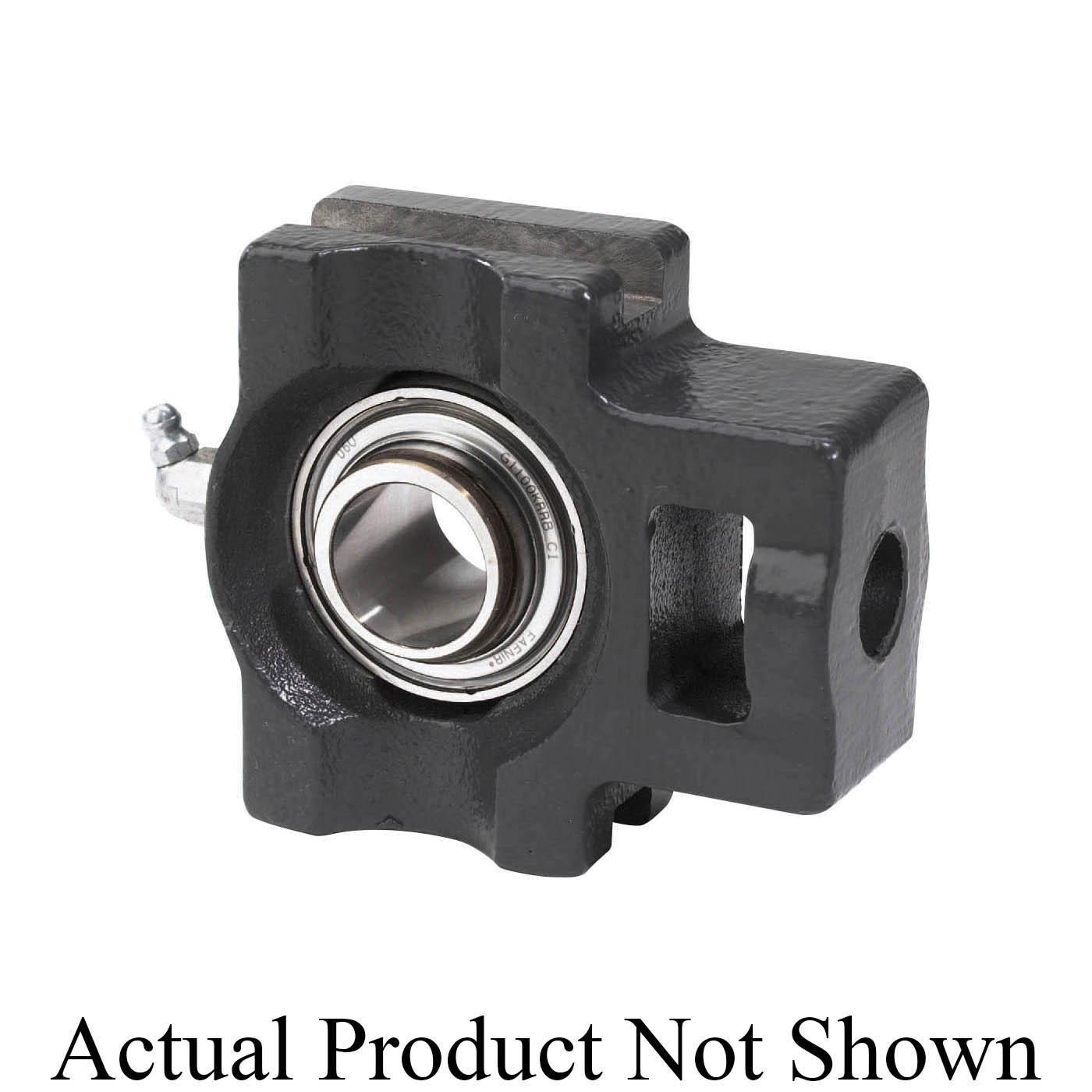

Timken® YTU2 7/16 YTU Industrial Series Round Bore Setscrew Lock Standard Duty Take-Up Mounted Ball Bearing Housed Unit, 2-7/16 in Dia Bore, 7-1/2 in L x 2.93 in W x 5-7/8 in H, 11800 lb Dynamic/8080 lb Static Load
- CP#:
- Item#: YTU2 7/16
- Mfr#: YTU2 7/16
- UPC: 087796196223
- Take up units are used where shaft alignment and belt tightening devices are required
- Frames for take up units provide side or top mounting
- Incorporates self-aligning, B-type extra wide inner ring ball bearings with setscrew lock
- Provides compact, efficient supports for adjustable shafts and conveyor take up pulleys
- Factory pre-lubricated
- A grease fitting is provided for relubrication if required
- Contact shroud seal, with wide inner ring, setscrew lock
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Designed to maximize performance, Timken® Fafnir® ball bearing housed units combine the bearing, housing, seal and locking system into one device for easy installation and operation. Timken® Fafnir® housed units feature specialized product lines to solve specific application concerns. Our problem solver series helps prevent downtime by using superior technology to keep equipment running efficiently and improve your bottom line.
Timken®, YTU2 7/16, Take-Up Mounted Ball Bearing Housed Unit, Round Bore Setscrew Lock Standard Duty, Series: YTU Industrial Series, 2-7/16 in Bore, 7-1/2 in Length, 2.93 in Width, 5-7/8 in Height, 11800 lb Dynamic/8080 lb Static Load, Steel Bearing
SPECIFICATIONS
| Series | : | YTU Industrial Series |
| Bearing Material | : | Steel |
| Height | : | 5-7/8 in |
| Length | : | 7-1/2 in |
| Load Capacity | : | 11800 lb Dynamic/8080 lb Static |
| Inside Diameter | : | 2-7/16 in |
| Width | : | 2.93 in |
| Measurement System | : | Imperial |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Fafnir_010_10650_Catalog.pdf
