YAS2S

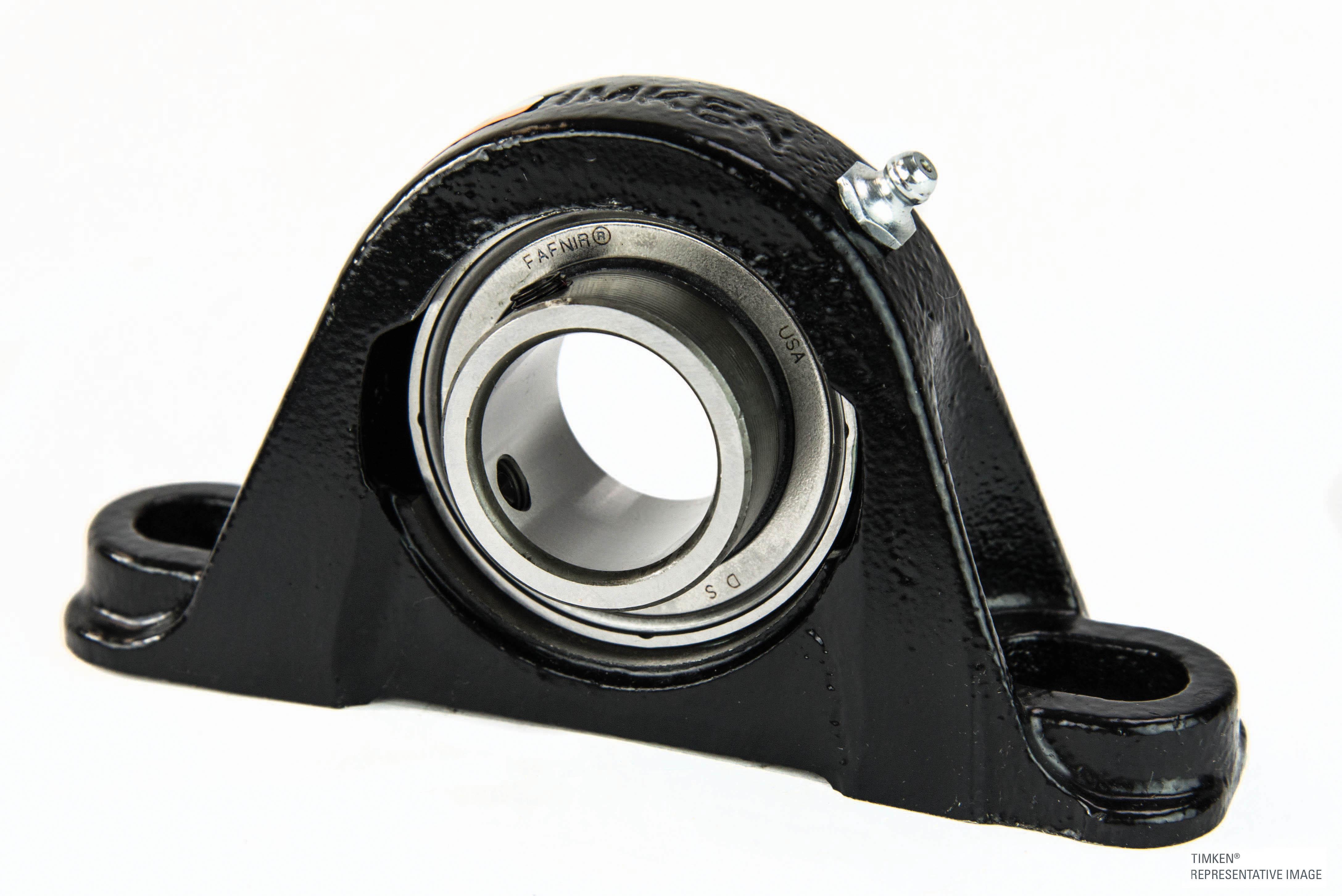

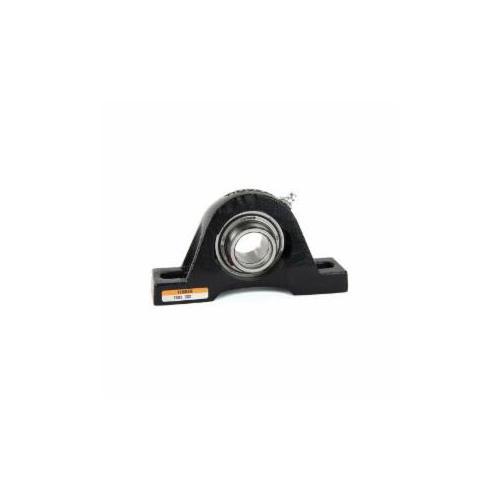

Timken® YAS2S YAS Normal Duty Pillow Block Ball Bearing Unit, 2 in Dia Bore, 6-7/32 in L Bolt Center-to-Center, 2-1/4 in Base to Bore Centerline, 7-7/8 in OAL x 4-1/2 in OAH
- CP#:
- Item#: YAS2S
- Mfr#: YAS2S
- UPC: 087796197701
- Incorporates shaft guarding technology, which reduces replacement time, provides shaft protection and prolongs the life of the shaft
- Heavier than our standard block with solid, flat feet for increased strength
- Timken® YAS series high-base, set screw pillow blocks feature the GY-KRRB bearing
- Housing is designed for two bolt mounting in any position
- Smaller housing
- All units are supplied with GY-KRRB wide-inner-ring bearing and set screw locking
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Timken® ball bearing housed units feature a wide-inner-ring ball bearing for additional shaft support. Designed for mounting on straight shafts with a slip fit, these housed units are available in an extensive array of types and sizes to accommodate many industrial applications.
Timken®, YAS2S, Pillow Block Ball Bearing Unit, Normal Duty, Series: YAS, 2 in Bore, 6-7/32 in Bolt Center-to-Center Length, 2-1/4 in Base to Bore Centerline, 7-7/8 in Overall Length, 2-1/32 in Overall Width, 4-1/2 in Overall Height, Two-Bolt Base Mounting, Round Bore, 2-3/16 in Base Width, Set Screw Locking Device, Contact Seal, Non-Expansion (Fixed), 7890 lb Dynamic/5210 lb Static Load, 250 deg F, Cast Iron, Uncoated
SPECIFICATIONS
| Base Width | : | 2-3/16 in |
| Base to Bore Centerline | : | 2-1/4 in |
| Series | : | YAS |
| Bolt Center-to-Center Length | : | 6-7/32 in |
| Mounting Type | : | Two-Bolt Base |
| Expansion Type | : | Non-Expansion (Fixed) |
| Locking Device | : | Set Screw |
| Finish | : | Uncoated |
| Overall Length | : | 7-7/8 in |
| Load Capacity | : | 7890 lb Dynamic/5210 lb Static |
| Material | : | Cast Iron |
| Overall Width | : | 2-1/32 in |
| Inside Diameter | : | 2 in |
| Overall Height | : | 4-1/2 in |
| Measurement System | : | Imperial |
| Seal Type | : | Contact |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Timken_010_6015S_Catalog.pdf
