YAS1 1/4 PT SGT

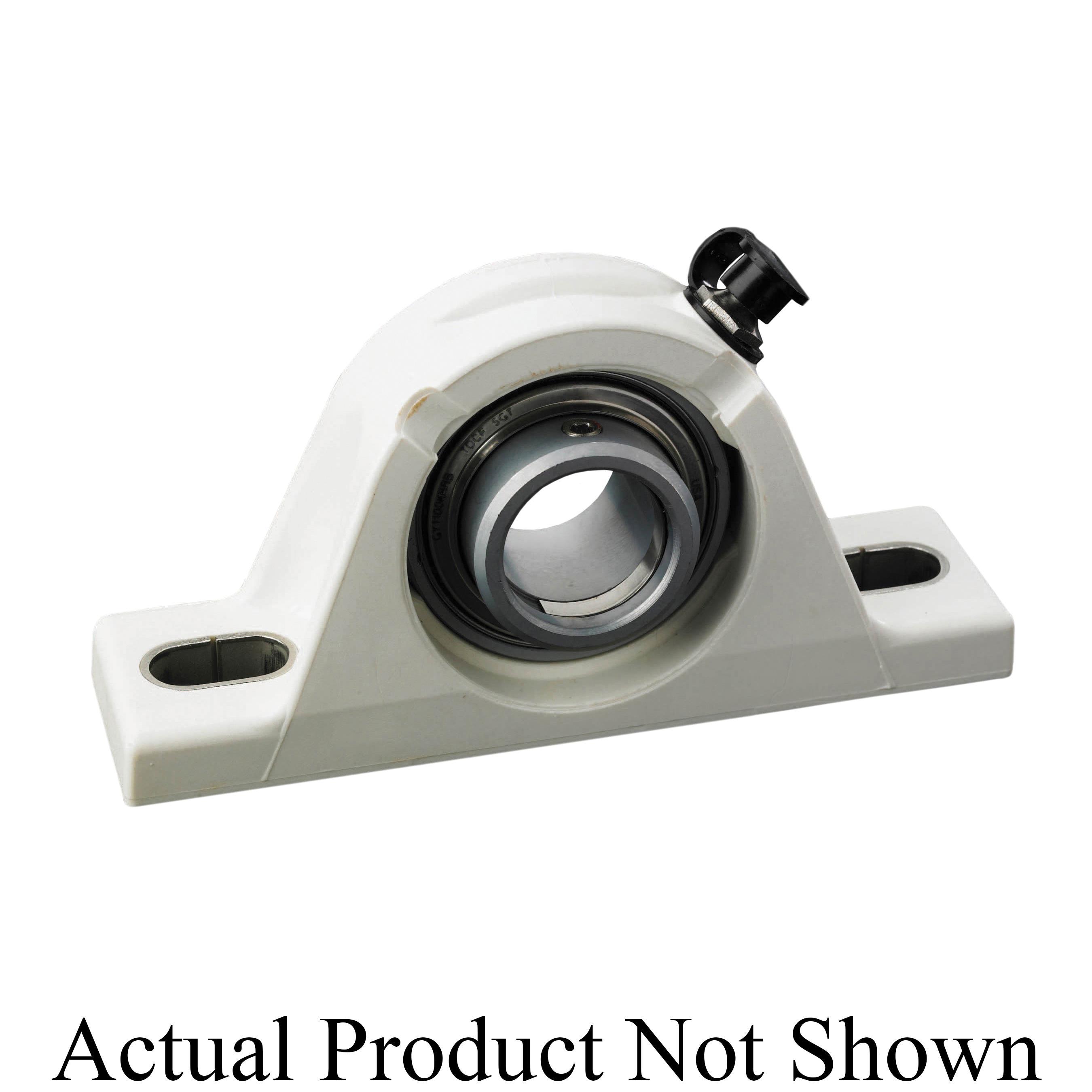

Timken® YAS1 1/4 PT SGT YAS Series Standard Duty Pillow Block Ball Bearing Housed Unit, 1-1/4 in Dia Bore, 5-1/8 in L Bolt Center-to-Center, 1-9/16 in Base to Bore Centerline, 6.562 in OAL x 3.685 in OAH
- CP#:
- Item#: YAS1 1/4 PT SGT
- Mfr#: YAS1 1/4 PT SGT
- UPC: 087796265660
- Timken® Survivor® series pillow block and flanged units excel in highly corrosive environments
- A proprietary thin dense chrome (TDC) coating is applied to all bearing inserts for superior corrosion protection
- The TDC coating is designed to not crack or peel under known application conditions
- The unit is factory lubricated with FDA/USDA approved grease (class H1 lubricant) for incidental food contact
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Designed to maximize performance, Timken® Fafnir® ball bearing housed units combine the bearing, housing, seal and locking system into one device for easy installation and operation. Timken® Fafnir® housed units feature specialized product lines to solve specific application concerns. Our problem solver series helps prevent downtime by using superior technology to keep equipment running efficiently and improve your bottom line.
Timken®, YAS1 1/4 PT SGT, Pillow Block Ball Bearing Housed Unit, Standard Duty, Series: YAS Series, 1-1/4 in Bore, 5-1/8 in Bolt Center-to-Center Length, 1-9/16 in Base to Bore Centerline, 6.562 in Overall Length, 5.12 in Overall Width, 3.685 in Overall Height, High Base Mounting, Round Bore, Set Screw Locking Device, Contact Seal, 3150 lb Dynamic/1760 lb Static Load, 250 deg F, 5500 rpm Maximum, Polymer
SPECIFICATIONS
| Base to Bore Centerline | : | 1-9/16 in |
| Series | : | YAS Series |
| Bolt Center-to-Center Length | : | 5-1/8 in |
| Mounting Type | : | High Base |
| Locking Device | : | Set Screw |
| Overall Length | : | 6.562 in |
| Load Capacity | : | 3150 lb Dynamic/1760 lb Static |
| Material | : | Polymer |
| Maximum Speed | : | 5500 rpm |
| Overall Width | : | 5.12 in |
| Inside Diameter | : | 1-1/4 in |
| Overall Height | : | 3.685 in |
| Measurement System | : | Imperial |
| Seal Type | : | Contact |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Fafnir_010_10650_Catalog.pdf -
Specification Sheet https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Fafnir_KAS1_1_4_PS_Specification_Sheet.pdf
