Timken® W203PPFS256G
Timken®

Timken® W203PPFS256G

loading

W203PPFS256G

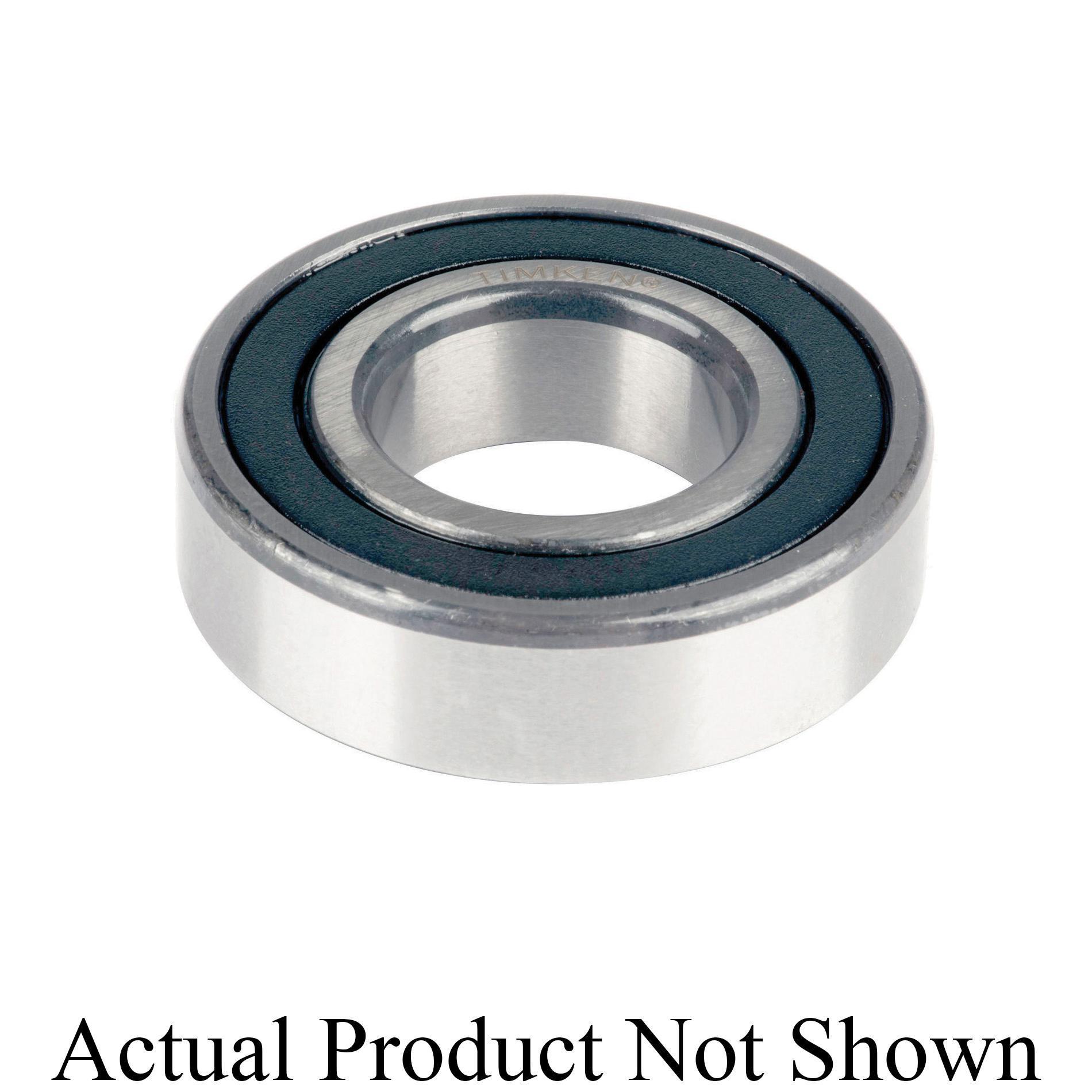

Timken® W203PPFS256G 200 Light Straight Bore Deep Groove Radial Ball Bearing, 17 mm Dia Bore, 40 mm Dia Outside, 1 Rows, 17 mm W, 2380 lb Dynamic/1070 lb Static Load

  • Item#: W203PPFS256G-P01
  • Mfr#: W203PPFS256G
  • UPC: 087796179189
    • Super finished raceways
    • Quiet operation
    • Light 200 series have a close dimensional balance between bore, outside diameter and width making them well suited for applications with light to medium loads and high speed
    • Wide rings
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading

DESCRIPTION

Timken® supplies a full range of product in the world's most popular design series. Timken® deep groove ball bearings deliver reliable performance in a wide range of applications and conditions.

Timken®, W203PPFS256G, Deep Groove Radial Ball Bearing, Light Straight Bore, Series: 200, 17 mm Bore, 40 mm OD, 1 Rows, 17 mm Width, Dual Pop-In Seal Closure, 2380 lb Dynamic/1070 lb Static Load, Cold Rolled Steel Cage, 14705.88 rpm Grease/Oil Maximum, -50 to 120 deg C

SPECIFICATIONS

Series      :      200
Bearing Material      :      Steel
Load Capacity      :      2380 lb Dynamic/1070 lb Static
Maximum Speed      :      14705.88 rpm Grease/Oil
Outside Diameter      :      40 mm
Number of Rows      :      1
Width      :      17 mm

DOCUMENTS

  • pdf
    Catalog
    https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Fafnir_311KDC2FS50000_Catalog.pdf
