UCT211

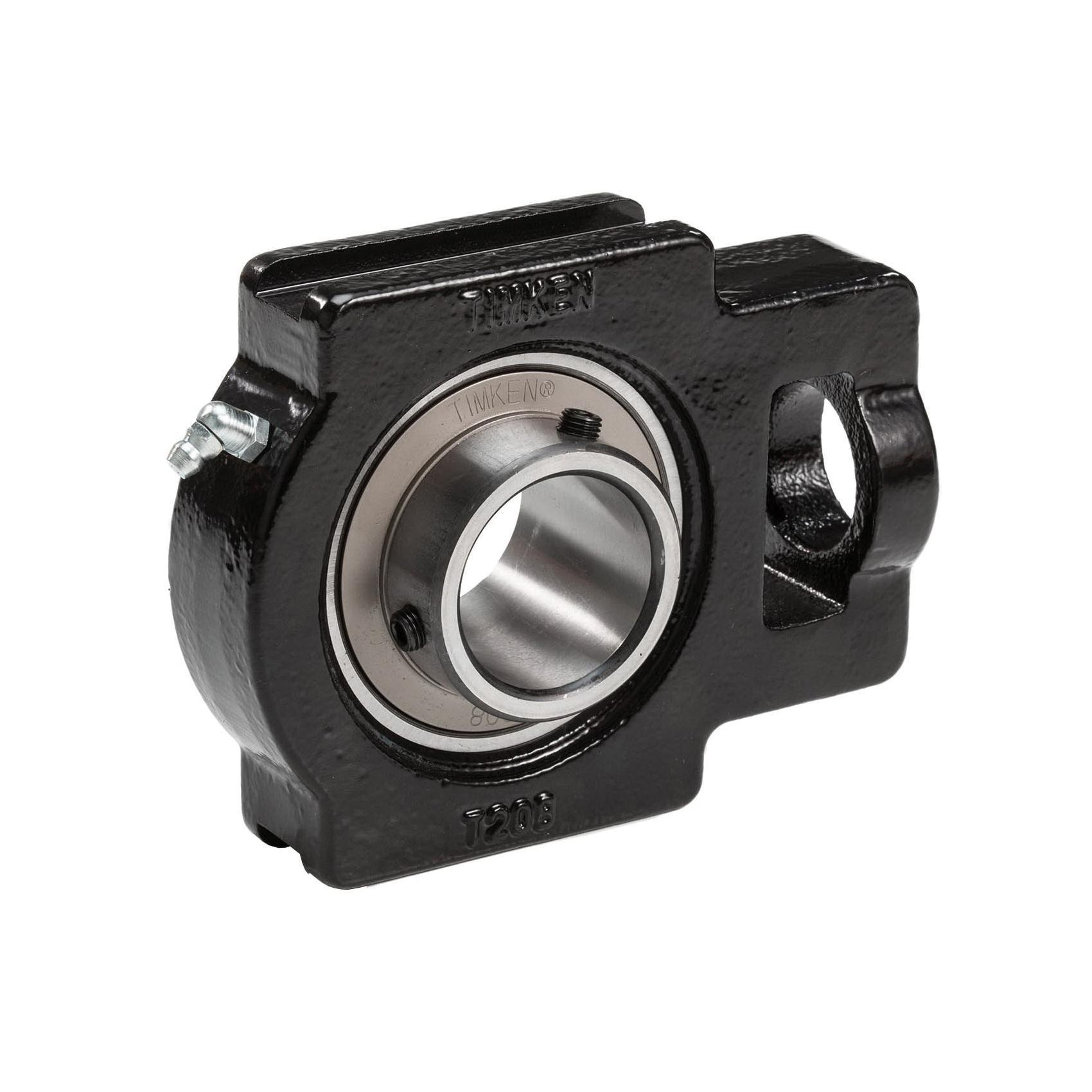

Timken® UCT211 UCT200 Standard Industrial Duty Non-Expansion Take-Up Ball Bearing Unit, 55 mm Dia Bore, 171 mm L x 39 mm W x 146 mm H, 43.4 lb Dynamic/29.4 lb Static Load
- CP#:
- Item#: UCT211
- Mfr#: UCT211
- UPC: 087796077904
- Suggested for industrial applications where normal loads are encountered
- UCT take-up units are used where shaft adjustment and belt-tightening devices are required, such as in conveyor applications
- Units provide compact, efficient supports for adjustable shafts and conveyor take-up pulleys
- Comes assembled and ready for mounting
- Use wide inner ring ball bearings with self-aligning spherical outside diameters that compensate for shaft misalignment
- UCT take-up units are suggested for industrial applications where normal loads are encountered
- These units provide compact, efficient supports for adjustable shafts and conveyer take-up pulleys
- Each unit comes assembled and ready for mounting
- These units use wide inner ring ball bearings with self aligning spherical outside diameters that compensate for shaft misalignment
- Bearing prelubricated and ready for immediate installation
- Grease fitting supplied for relubrication
- The bonded seal design is well suited for industrial applications involving wet or dirty environments
- Slot spacing and width are interchangeable with competitive units
- Housing designed for ease of bearing replacement
- Standard industrial set screw locking mechanism
- 4-bolt square flange mounting
- Cylindrical bore, single row and open end
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Timken® U Series UC200 mounted ball bearings housed units feature Timken® U Series set screw locking style wide inner ring ball bearings, contact nitrile seal and an external flinger to provide multiple levels of protection against contamination. Timken® ball bearings are ideal for handling high speeds and light radial loads.
Timken®, UCT211, Take-Up Ball Bearing Unit, Standard Industrial Duty Non-Expansion, Series: UCT200, 55 mm Bore, 171 mm Length, 39 mm Width, 146 mm Height, 43.4 lb Dynamic/29.4 lb Static Load, Steel Bearing, 32 to 104 deg F, Powder Coated

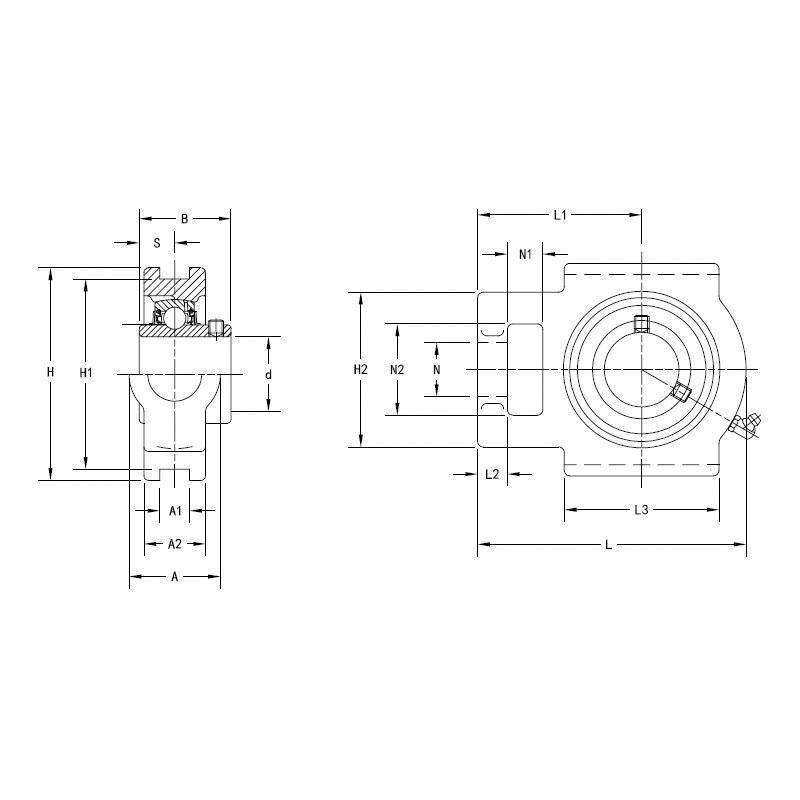

SPECIFICATIONS
| Series | : | UCT200 |
| Bearing Material | : | Steel |
| Finish | : | Powder Coated |
| Height | : | 146 mm |
| Length | : | 171 mm |
| Load Capacity | : | 43.4 lb Dynamic/29.4 lb Static |
| Inside Diameter | : | 55 mm |
| Width | : | 39 mm |
| Measurement System | : | Metric |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Timken_UCP206_18_Catalog.pdf
