Timken® UCP213-40
Timken®

Timken® UCP213-40

loading
Timken® UCP213-40
Timken®
Email Print

UCP213-40

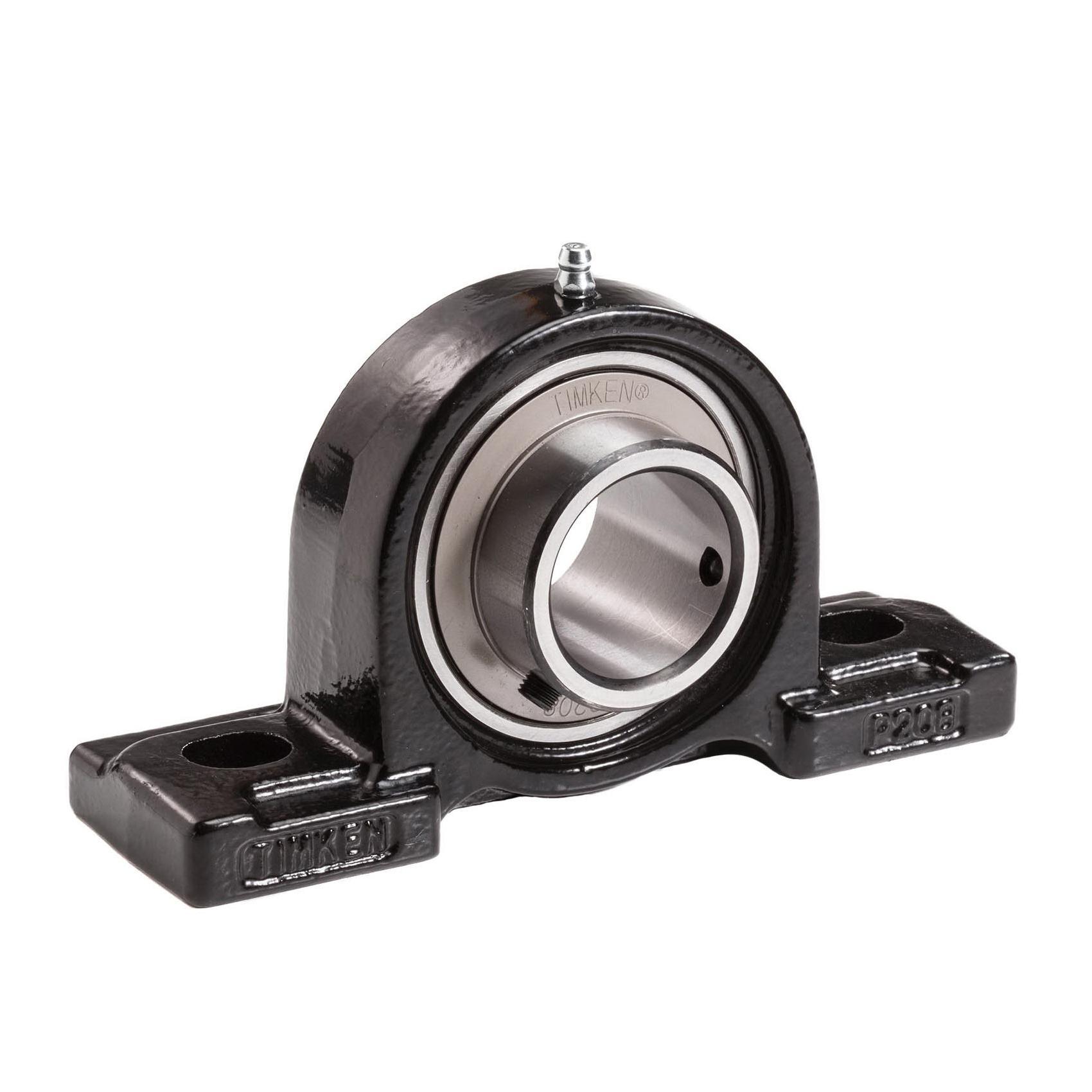

Timken® UCP213-40 UCP200 Industrial Duty Single Row Standard Pillow Block Ball Bearing Unit, 2-1/2 in Dia Bore, 31/32 in L Bolt Center-to-Center, 3 in Base to Bore Centerline, 10-7/16 in OAL x 5-29/32 in OAH

  • Item#: UCP213-40 TIM
  • Mfr#: UCP213-40
  • UPC: 087796073135
    • UCP pillow blocks are suggested for industrial applications where normal loads are encountered
    • Compact, 1-piece housing with 2-bolt mounting can be installed in any position and makes bearing replacement easy
    • These units use wide inner ring ball bearings with self aligning spherical outside diameters that compensate for shaft misalignment
    • Timken® UCP series housed units feature the Timken® set screw locking (UC) bearing insert
    • Bearing prelubricated and ready for immediate installation
    • Grease fitting supplied for relubrication
    • The bonded seal design is well suited for applications involving wet or dirty environments
    • Bolt hole spacing dimensions and shaft center location are interchangeable with competitive units
    • Housing designed for ease of bearing replacement
    • Provides the first level of protection against contamination
    • Bonded nitrile rubber seal with an engineered interface to the inner ring
    • Helps protect against abrasive wear, extending seal life
    • Engineered fit between bearing and housing to improve bearing life
    • Precision machined lubrication groove and holes in the outer ring of the bearing
    • Steel cage provides effective ball guidance and high temperature service capability
    • Improved shaft support over narrow rings, improving bearing life and reducing misalignment
    • 120 deg angle minimizes inner ring distortion for smoother running bearing
    • Prelubricated with high-quality lithium-based grease, compatible with most industrial greases
    • Spherical outer diameter
    • CN internal clearance
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading

DESCRIPTION

Timken® U series UCP 200 mounted ball bearings (housed units) feature Timken® U Series set screw locking (UC) style wide inner ring ball bearings, contact nitrile seal and an external flinger to provide multiple levels of protection against contamination. Timken® ball bearings are ideal for handling high speeds and light radial loads.

Timken®, UCP213-40, Pillow Block Ball Bearing Unit, Industrial Duty Single Row Standard, Series: UCP200, 2-1/2 in Bore, 31/32 in Bolt Center-to-Center Length, 3 in Base to Bore Centerline, 10-7/16 in Overall Length, 2.938 in Overall Width, 5-29/32 in Overall Height, Two-Bolt Base Mounting, Cylindrical Bore, 2-3/4 in Base Width, Set Screw Locking Device, Triple Lip Seal, Non-Expansion, 57.2 lb Dynamic/40.1 lb Static Load, -4 to 212 deg F, 2200 rpm Maximum, Cast Iron, Powder Coated

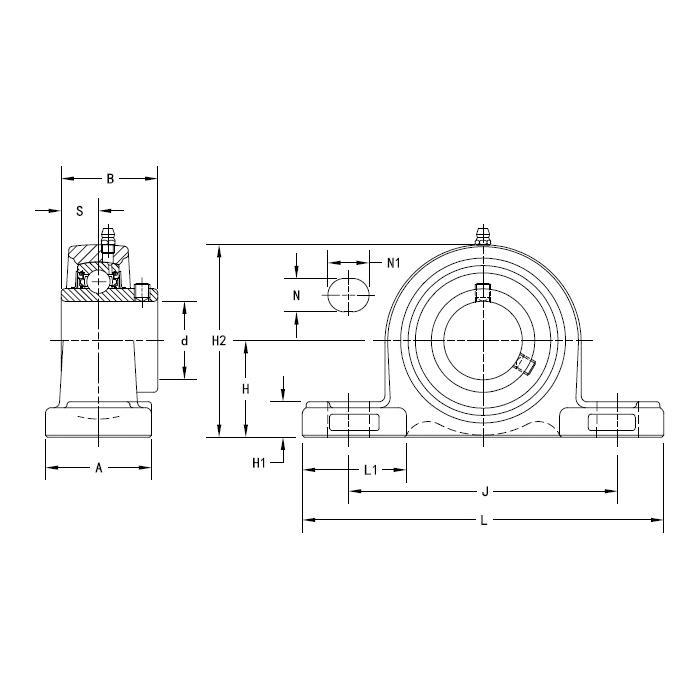

SPECIFICATIONS

Base Width      :      2-3/4 in
Base to Bore Centerline      :      3 in
Series      :      UCP200
Bolt Center-to-Center Length      :      31/32 in
Mounting Type      :      Two-Bolt Base
Expansion Type      :      Non-Expansion
Locking Device      :      Set Screw
Finish      :      Powder Coated
Overall Length      :      10-7/16 in
Load Capacity      :      57.2 lb Dynamic/40.1 lb Static
Material      :      Cast Iron
Maximum Speed      :      2200 rpm
Overall Width      :      2.938 in
Overall Height      :      5-29/32 in
Seal Type      :      Triple Lip

DOCUMENTS

  • pdf
    Catalog     https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Timken_UCP206_18_Catalog.pdf
  • pdf
    Instruction/Installation Manual     https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Timken_UCP206_18_Installation_Manual.pdf
