UCFC211

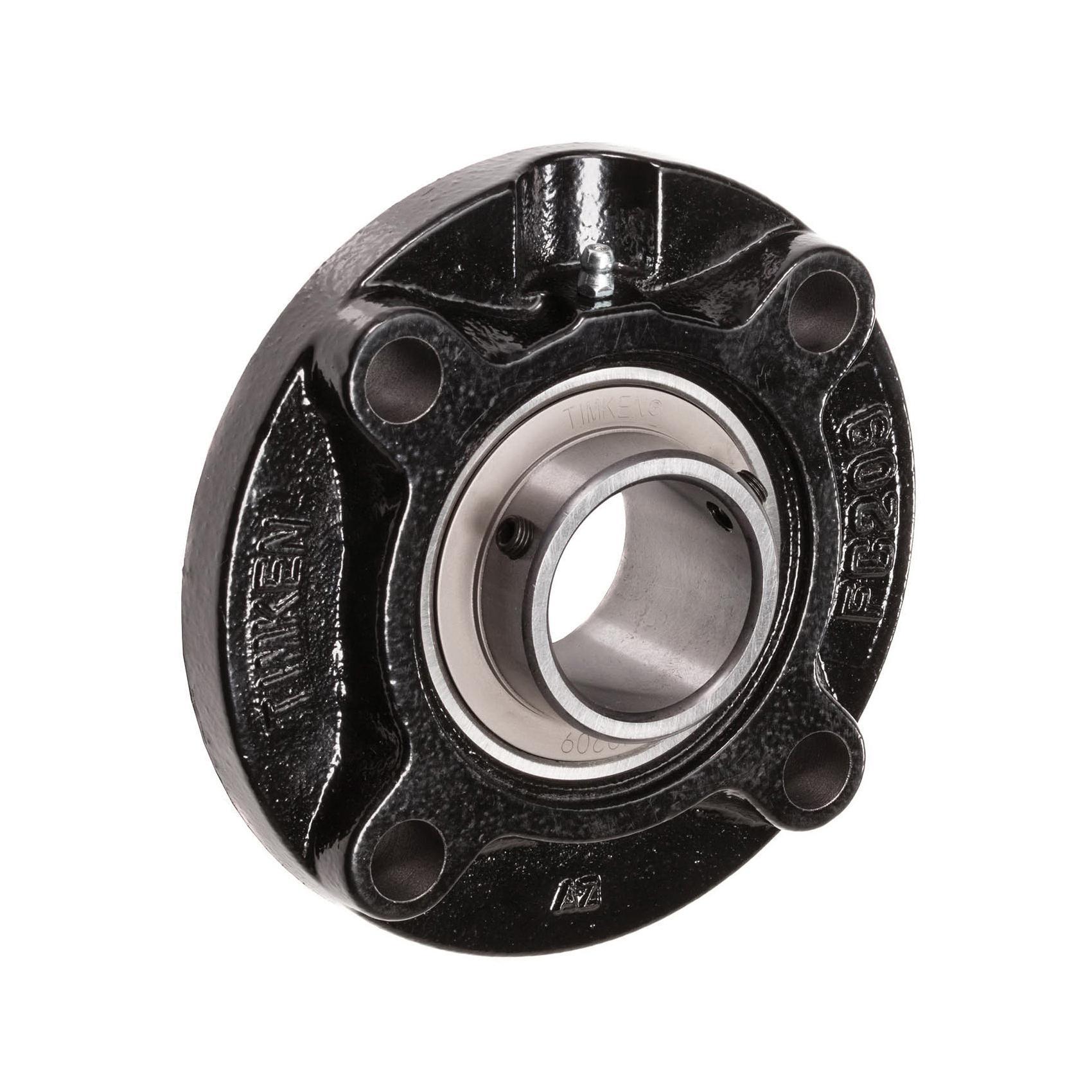

Timken® UCFC211 UCFC 200 Standard-Duty Non-Expansion Flange Mount Ball Bearing Unit, 55 mm Dia Bore, 106.1 mm L Bolt Center-to-Center, 150 mm Dia Bolt Circle, 4-Bolt/Piloted Round Flange Mount, 185 mm OAL/Dia
- CP#:
- Item#: UCFC211
- Mfr#: UCFC211
- UPC: 087796076082
- Suggested for industrial applications where normal loads are encountered
- UCFC piloted round flanged units ensure accurate mounting fits and provide better support for heavy loads
- Unit comes assembled and ready for mounting, using bolts through the flange
- Use wide inner ring ball bearings with self-aligning spherical outside diameters that compensate for shaft misalignment
- Timken® UCFC series housed units feature the Timken® set screw locking (UC) bearing insert
- Bearing prelubricated and ready for immediate installation
- Grease fitting supplied for relubrication
- The bonded seal design is well suited for industrial applications involving wet or dirty environments
- Bolt hole spacing dimensions and shaft center location are interchangeable with competitive units
- Housing designed for ease of bearing replacement
- Cast iron housing
- Triple-lip bonded seal with flinger
- CN internal clearance
- Cylindrical bore single row bearing
- Open end type
- Spherical outer diameter
- M16 bolt
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Timken® U Series UC200 mounted ball bearings housed units feature Timken® U Series set screw locking style wide inner ring ball bearings, contact nitrile seal and an external flinger to provide multiple levels of protection against contamination. Timken® ball bearings are ideal for handling high speeds and light radial loads.
Timken®, UCFC211, Flange Mount Ball Bearing Unit, Standard-Duty Non-Expansion, Series: UCFC 200, 55 mm Bore, 106.1 mm Bolt Center-to-Center Length, 150 mm Diameter Bolt Circle, 4-Bolt/Piloted Round Flange Mounting, 185 mm Overall Length/Diameter, 58.4 mm Overall Depth, 185 mm Overall Height, Set Screw Locking Device, Steel Bearing, Nitrile Rubber Seal, 43.4 lb Dynamic/29.4 lb Static Load, 2500 rpm Maximum, 121 deg C, Powder Coated
SPECIFICATIONS

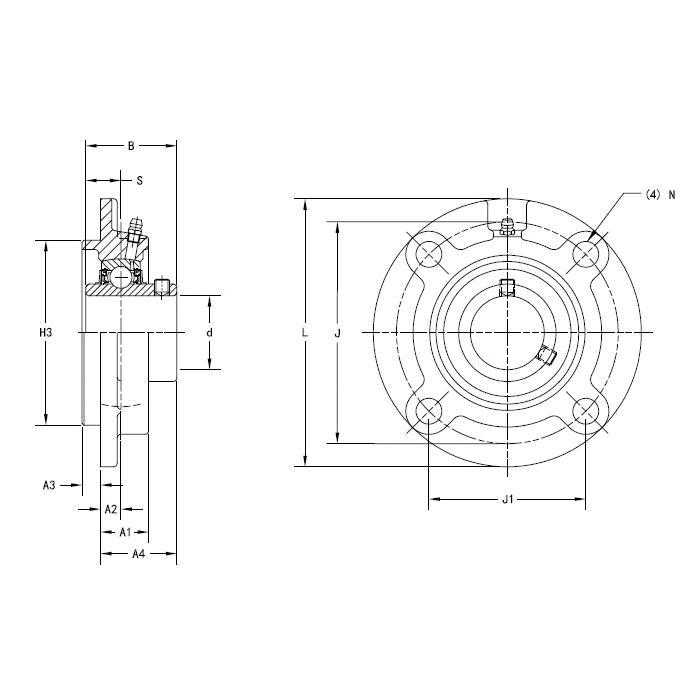

| Bolt Center-to-Center Length | : | 106.1 mm |
| Series | : | UCFC 200 |
| Bolt Circle Diameter | : | 150 mm |
| Bearing Material | : | Steel |
| Finish | : | Powder Coated |
| Flange Mounting Type | : | 4-Bolt/Piloted Round |
| Locking Device | : | Set Screw |
| Load Capacity | : | 43.4 lb Dynamic/29.4 lb Static |
| Maximum Speed | : | 2500 rpm |
| Overall Depth | : | 58.4 mm |
| Overall Height | : | 185 mm |
| Inside Diameter | : | 55 mm |
| Overall Length/Diameter | : | 185 mm |
| Seal Material | : | Nitrile Rubber |
| Measurement System | : | Metric |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Timken_UCP206_18_Catalog.pdf -
Instruction/Installation Manual https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Timken_UCP206_18_Installation_Manual.pdf
