UCF204

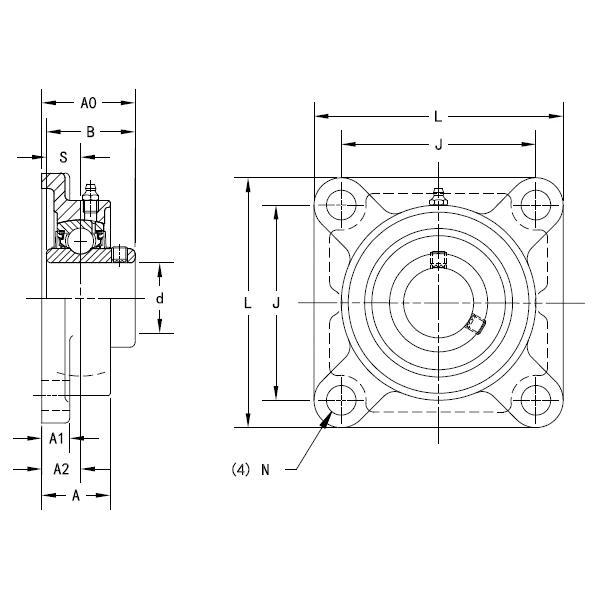

Timken® UCF204 UCF 200 Standard-Duty Non-Expansion Flange Mount Ball Bearing Unit, 20 mm Dia Bore, 64 mm L Bolt Center-to-Center, 0.47 in Dia Bolt Circle, 4-Bolt Square Flange Mount, 86 mm OAL/Dia
- CP#:
- Item#: UCF204
- Mfr#: UCF204
- UPC: 087796073494
- Suggested for industrial applications where normal loads are encountered
- Unit comes assembled and ready for mounting, using bolts through the flange
- Use wide inner ring ball bearings with self-aligning spherical outside diameters that compensate for shaft misalignment
- Timken® UCF series housed units feature the Timken® set screw locking (UC) bearing insert
- Bearing prelubricated and ready for immediate installation
- Grease fitting supplied for relubrication
- The bonded seal design is well suited for applications involving wet or dirty environments
- Bolt hole spacing dimensions and shaft center location are interchangeable with competitive units
- Housing designed for ease of bearing replacement
- Cast iron housing
- Triple-lip bonded seal with flinger
- CN internal clearance
- Single row cylindrical bore bearing
- Open end type
- Spherical outer diameter
- M10 bolt
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Timken® U Series UC200 mounted ball bearings housed units feature Timken® U Series set screw locking style wide inner ring ball bearings, contact nitrile seal and an external flinger to provide multiple levels of protection against contamination. Timken® ball bearings are ideal for handling high speeds and light radial loads.
Timken®, UCF204, Flange Mount Ball Bearing Unit, Standard-Duty Non-Expansion, Series: UCF 200, 20 mm Bore, 64 mm Bolt Center-to-Center Length, 0.47 in Diameter Bolt Circle, 4-Bolt Square Flange Mounting, 86 mm Overall Length/Diameter, 33.3 mm Overall Depth, 86 mm Overall Height, Set Screw Locking Device, Steel Bearing, Nitrile Rubber Seal, 12.8 lb Dynamic/6.7 lb Static Load, 5800 rpm Maximum, 121 deg C, Powder Coated
SPECIFICATIONS
| Bolt Center-to-Center Length | : | 64 mm |
| Series | : | UCF 200 |
| Bolt Circle Diameter | : | 0.47 in |
| Bearing Material | : | Steel |
| Finish | : | Powder Coated |
| Flange Mounting Type | : | 4-Bolt Square |
| Locking Device | : | Set Screw |
| Load Capacity | : | 12.8 lb Dynamic/6.7 lb Static |
| Maximum Speed | : | 5800 rpm |
| Overall Depth | : | 33.3 mm |
| Overall Height | : | 86 mm |
| Inside Diameter | : | 20 mm |
| Overall Length/Diameter | : | 86 mm |
| Seal Material | : | Nitrile Rubber |
| Measurement System | : | Unspecified |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Timken_UCP206_18_Catalog.pdf -
Instruction/Installation Manual https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Timken_UCP206_18_Installation_Manual.pdf
