TAFB17K215SM

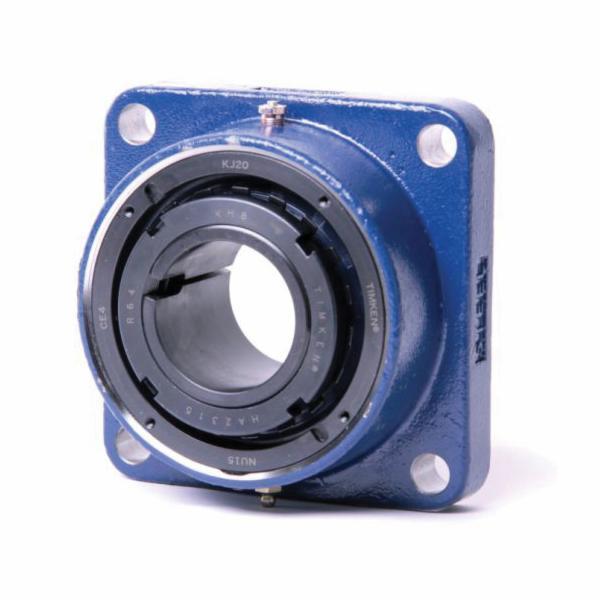

Timken® TAFB17K215SM TA Series M Seal Solid Block Spherical Roller Bearing Housed Unit, 2-15/16 in Dia Bore, 6.68 in L Bolt Center-to-Center, 9.45 in Dia Bolt Circle, 4-Bolt Square Flange Mount, 8.35 in OAL/Dia
- CP#:
- Item#: TAFB17K215SM
- Mfr#: TAFB17K215SM
- UPC: 883450199339
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
The TA series feature a 2300-series tapered adapter sleeve for increased shaft contact. This design offers the best shaft concentricity and highest capacity all the while having the ability to accommodate undersized shafting.
Timken®, TAFB17K215SM, Spherical Roller Bearing Housed Unit, M Seal Solid Block, Series: TA Series, 2-15/16 in Bore, 6.68 in Bolt Center-to-Center Length, 9.45 in Diameter Bolt Circle, 4-Bolt Square Flange Mounting, 8.35 in Overall Length/Diameter, 3.49 in Overall Depth, 8.35 in Overall Height, Tapered Adapter Locking Device, Cast Steel Seal, 66900 lb Dynamic/71900 lb Static Load, 1400 rpm Grease/Oil Maximum
SPECIFICATIONS
| Bolt Center-to-Center Length | : | 6.68 in |
| Series | : | TA Series |
| Bolt Circle Diameter | : | 9.45 in |
| Bearing Material | : | Steel |
| Flange Mounting Type | : | 4-Bolt Square |
| Locking Device | : | Tapered Adapter |
| Load Capacity | : | 66900 lb Dynamic/71900 lb Static |
| Maximum Speed | : | 1400 rpm Grease/Oil |
| Overall Depth | : | 3.49 in |
| Overall Height | : | 8.35 in |
| Inside Diameter | : | 2-15/16 in |
| Overall Length/Diameter | : | 8.35 in |
| Seal Material | : | Cast Steel |
| Measurement System | : | Imperial |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Timken_Belts_CS08_Catalog.pdf -
Specification Sheet https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Timken_Belts_TAFB17K215SM_Specification_Sheet.pdf
