TAFB15K208STHT

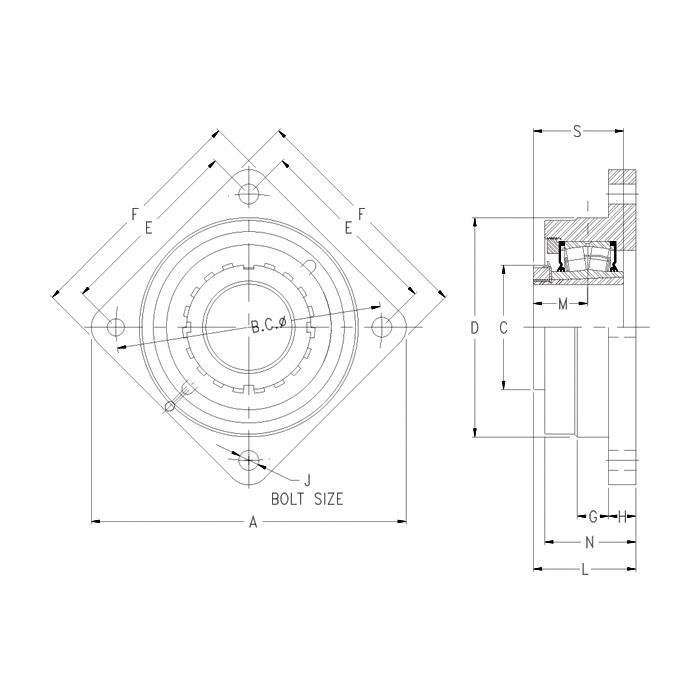

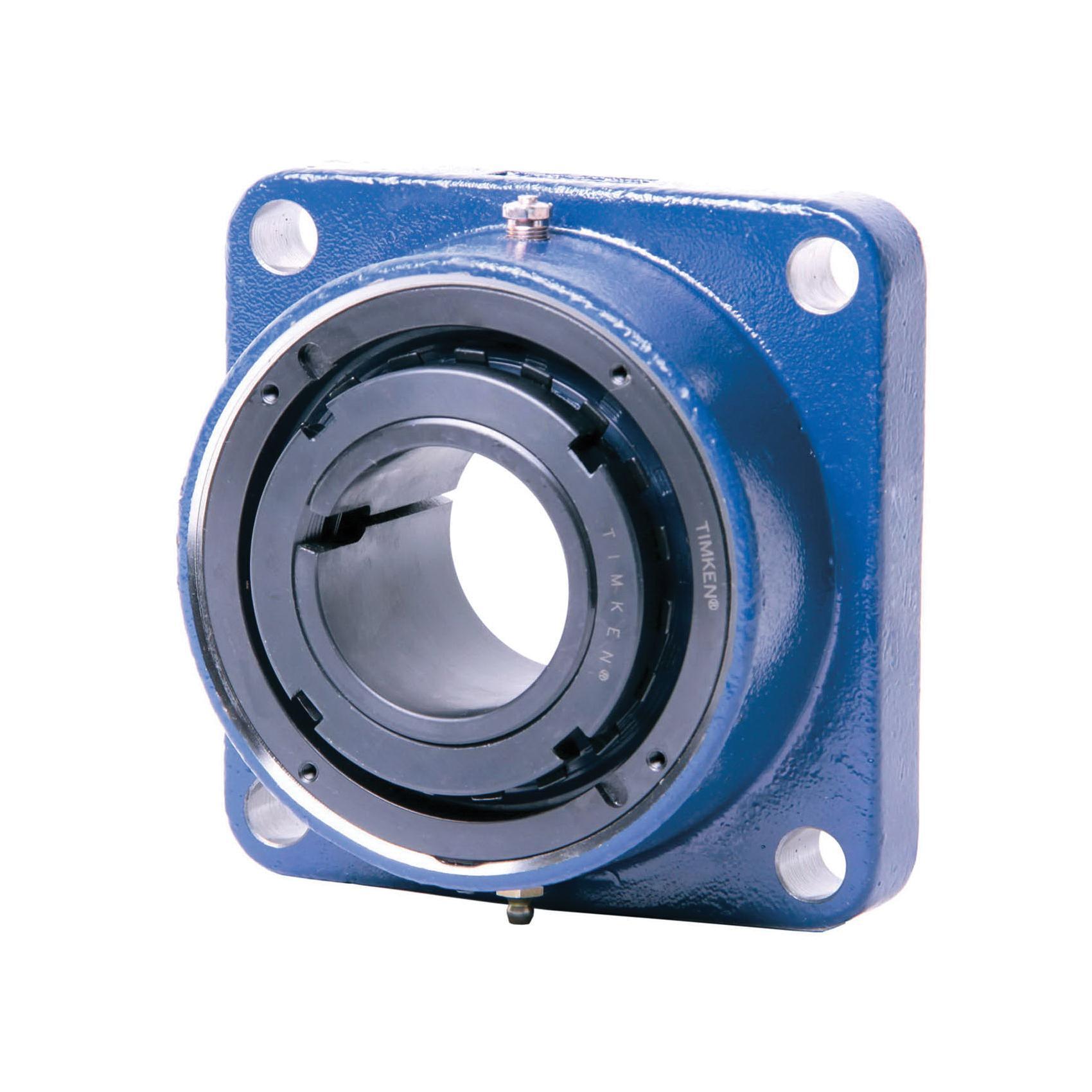

Timken® TAFB15K208STHT Heavy Duty Non-Expansion Spherical Roller Bearing Unit, 2-1/2 in Dia Bore, 6 in L Bolt Center-to-Center, 8.47 in Dia Bolt Circle, 4-Bolt Square Flange Mount, 7.56 in OAL/Dia
- CP#:
- Item#: TAFB15K208STHT
- Mfr#: TAFB15K208STHT
- UPC: 883450953870
- 2300 series tapered adapter sleeve for increased shaft contact
- Best shaft concentricity and highest capacity all the while having the ability to accommodate undersized housing
- Direct drop-in replacement for SAF/SN split cap housing dimensions
- High temperature grease
- Double row bearing
- Cast steel housing
- Open end type
- Solid block housing
- Do not operate at bearing temperatures above 250 deg F
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Timken® solid block mounted spherical roller bearings (housed units) feature high-performance, low operating temperature Timken® double row spherical roller bearings, cast steel housings, unique locking and sealing design options to offer protection against contaminants in the harshest environments. Timken® spherical roller bearings are ideal for handling high radial loads.
Timken®, TAFB15K208STHT, Spherical Roller Bearing Unit, Heavy Duty Non-Expansion, 2-1/2 in Bore, 6 in Bolt Center-to-Center Length, 8.47 in Diameter Bolt Circle, 4-Bolt Square Flange Mounting, 7.56 in Overall Length/Diameter, 2.9 in Overall Depth, 7.56 in Overall Height, Tapered Adapter Locking Device, Steel Bearing, DuPont® Teflon® Seal, 49900 lb Dynamic/54100 lb Static Load, 2400 rpm Grease/2900 rpm Oil Maximum, -40 to 250 deg F, Powder Coated
SPECIFICATIONS
| Bolt Center-to-Center Length | : | 6 in |
| Bolt Circle Diameter | : | 8.47 in |
| Bearing Material | : | Steel |
| Finish | : | Powder Coated |
| Flange Mounting Type | : | 4-Bolt Square |
| Locking Device | : | Tapered Adapter |
| Load Capacity | : | 49900 lb Dynamic/54100 lb Static |
| Maximum Speed | : | 2400 rpm Grease/2900 rpm Oil |
| Overall Depth | : | 2.9 in |
| Overall Height | : | 7.56 in |
| Inside Diameter | : | 2-1/2 in |
| Overall Length/Diameter | : | 7.56 in |
| Seal Material | : | DuPont® Teflon® |
| Measurement System | : | Imperial |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Timken_DVC13K203SM_Catalog.pdf
