TAAPH32K507SO

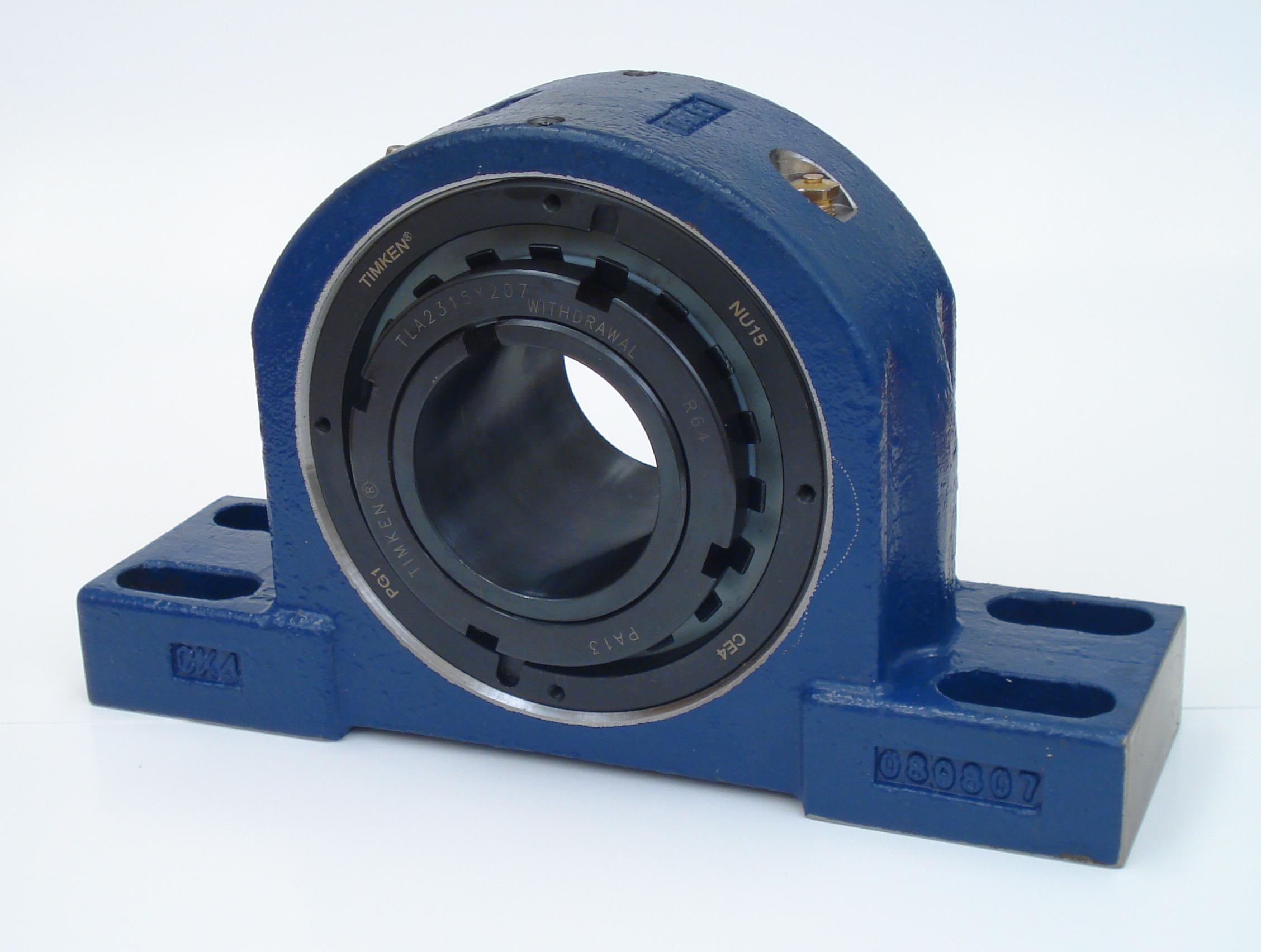

Timken® TAAPH32K507SO TAAPH Pillow Block, 5.4375 in Dia Bore, 17.38 to 19.25 in L Bolt Center-to-Center, 6.69 in Base to Bore Centerline, 22 in OAL x 13 in OAH
- CP#:
- Item#: TAAPH32K507SO
- Mfr#: TAAPH32K507SO
- UPC: 883450463928
- Excellent in high-load applications, this design uses a simple design that in turn simplifies installation and removal of mounted bearings
- The standard tapered adapter sleeve has been extended to accommodate a second nut on the back end
- This nut is factory set for nominal shaft sizes and can be adjusted in the field to accommodate actual (under/over) shaft size if necessary
- Medium Duty contact triple-lip seal made of high-strength urethane for superior abrasion resistance
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Engineered for the harshest conditions, these units feature multiple steel-housing and locking options with complete multi-point sealing solutions (full range of end covers) to optimize your uptime. This drop-in solution is interchangeable with a large range of products and keeps contaminates out for efficient operations.
Timken®, TAAPH32K507SO, Pillow Block, Series: TAAPH, 5.4375 in Bore, 17.38 to 19.25 in Bolt Center-to-Center Length, 6.69 in Base to Bore Centerline, 22 in Overall Length, 7.28 in Overall Width, 13 in Overall Height, 4-Bolt Mounting, Cylindrical Bore, 6.75 in Base Width, Tapered Adapter Locking Device, O Seal, Non-Expansion (Fixed), 261000 lb Dynamic/354000 lb Static Load, -40 to 260 deg F, Steel
SPECIFICATIONS
| Base Width | : | 6.75 in |
| Base to Bore Centerline | : | 6.69 in |
| Series | : | TAAPH |
| Bolt Center-to-Center Length | : | 17.38 to 19.25 in |
| Mounting Type | : | 4-Bolt |
| Expansion Type | : | Non-Expansion (Fixed) |
| Locking Device | : | Tapered Adapter |
| Overall Length | : | 22 in |
| Load Capacity | : | 261000 lb Dynamic/354000 lb Static |
| Material | : | Steel |
| Overall Width | : | 7.28 in |
| Inside Diameter | : | 5.4375 in |
| Overall Height | : | 13 in |
| Measurement System | : | Imperial |
| Seal Type | : | O Seal |
