- Timken® TAAPH28K415SEO
TAAPH28K415SEO

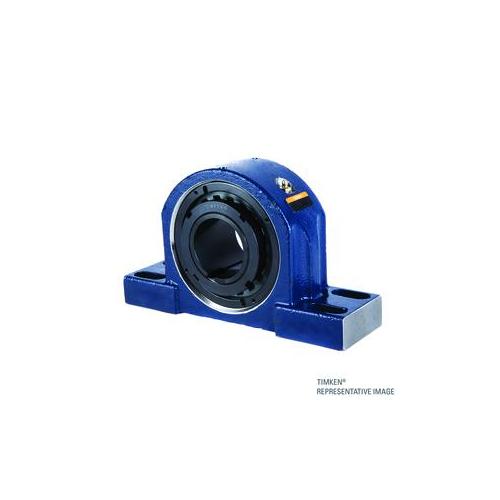

Timken® TAAPH28K415SEO TAAPH Pillow Block, 4.9375 in Dia Bore, 16 to 17.13 in L Bolt Center-to-Center, 6 in Base to Bore Centerline, 19.7 in OAL x 11.45 in OAH
- CP#:
- Item#: TAAPH28K415SEO
- Mfr#: TAAPH28K415SEO
- UPC: 883450541145
- Excellent in high-load applications, this design uses a simple design that in turn simplifies installation and removal of mounted bearings
- The standard tapered adapter sleeve has been extended to accommodate a second nut on the back end
- This nut is factory set for nominal shaft sizes and can be adjusted in the field to accommodate actual (under/over) shaft size if necessary
- Medium Duty contact triple-lip seal made of high-strength urethane for superior abrasion resistance
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Engineered for the harshest conditions, these units feature multiple steel-housing and locking options with complete multi-point sealing solutions (full range of end covers) to optimize your uptime. This drop-in solution is interchangeable with a large range of products and keeps contaminates out for efficient operations.
Timken®, TAAPH28K415SEO, Pillow Block, Series: TAAPH, 4.9375 in Bore, 16 to 17.13 in Bolt Center-to-Center Length, 6 in Base to Bore Centerline, 19.7 in Overall Length, 6.34 in Overall Width, 11.45 in Overall Height, 4-Bolt Mounting, Cylindrical Bore, 5.04 in Base Width, Tapered Adapter Locking Device, O Seal, Expansion, 194000 lb Dynamic/237000 lb Static Load, -40 to 260 deg F, 350 rpm Grease/350 rpm Oil Maximum, Steel
SPECIFICATIONS
| Base Width | : | 5.04 in |
| Base to Bore Centerline | : | 6 in |
| Series | : | TAAPH |
| Bolt Center-to-Center Length | : | 16 to 17.13 in |
| Mounting Type | : | 4-Bolt |
| Expansion Type | : | Expansion |
| Locking Device | : | Tapered Adapter |
| Overall Length | : | 19.7 in |
| Load Capacity | : | 194000 lb Dynamic/237000 lb Static |
| Material | : | Steel |
| Maximum Speed | : | 350 rpm Grease/350 rpm Oil |
| Overall Width | : | 6.34 in |
| Inside Diameter | : | 4.9375 in |
| Overall Height | : | 11.45 in |
| Measurement System | : | Imperial |
| Seal Type | : | O Seal |
