SDAF 230

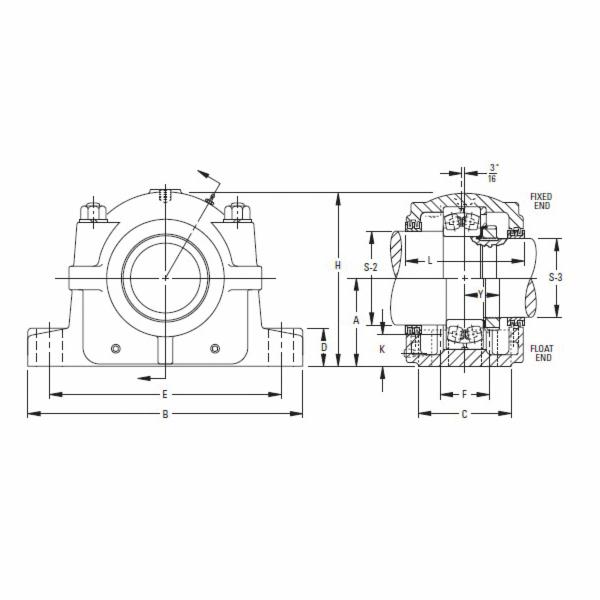

Timken® SDAF 230 SDAF222/SDAF223 Heavy Duty Pillow Block Housing, 5-3/4 in ID, Four-Bolt Base Mount, 6-5/16 in Base to Bore Centerline, 21-1/4 in OAL x 12-13/16 in OAH
- CP#:
- Item#: SDAF 230
- Mfr#: SDAF 230
- UPC: 087796305205
- Split construction for convenient assembly and disassembly
- These units include pry tool slots and the exclusive Pry-Lug fulcrum, which simplifies bearing inspection, service and replacement
- Caps can be removed easily and quickly without damage to the bearing or housing
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Timken® Pillow Block Housing, Heavy Duty, Series: SDAF222/SDAF223, 5-3/4 in ID, Four-Bolt Base Mounting, 6-5/16 in Base to Bore Centerline, 21-1/4 in Overall Length, 8-3/8 in Overall Width, 12-13/16 in Overall Height, Compatible Bore Diameter: 5-3/4 in, Compatible Bearing Type: Spherical Roller Bearing, 18-1/4 in Bolt Center-to-Center Length, 7-7/8 in Base Width, Cast Iron
SPECIFICATIONS
| Base Width | : | 7-7/8 in |
| Base to Bore Centerline | : | 6-5/16 in |
| Series | : | SDAF222/SDAF223 |
| Bolt Center-to-Center Length | : | 18-1/4 in |
| Mounting Type | : | Four-Bolt Base |
| Compatible Bearing Type | : | Spherical Roller Bearing |
| Compatible Bore Diameter | : | 5-3/4 in |
| Overall Length | : | 21-1/4 in |
| Material | : | Cast Iron |
| Overall Width | : | 8-3/8 in |
| Overall Height | : | 12-13/16 in |
| Inside Diameter | : | 5-3/4 in |
| Measurement System | : | Imperial |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Timken_FSAF_220_Catalog.pdf -
Specification Sheet https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Timken_SDAF_230_Specification_Sheet.pdf
