SAOL2 7/16

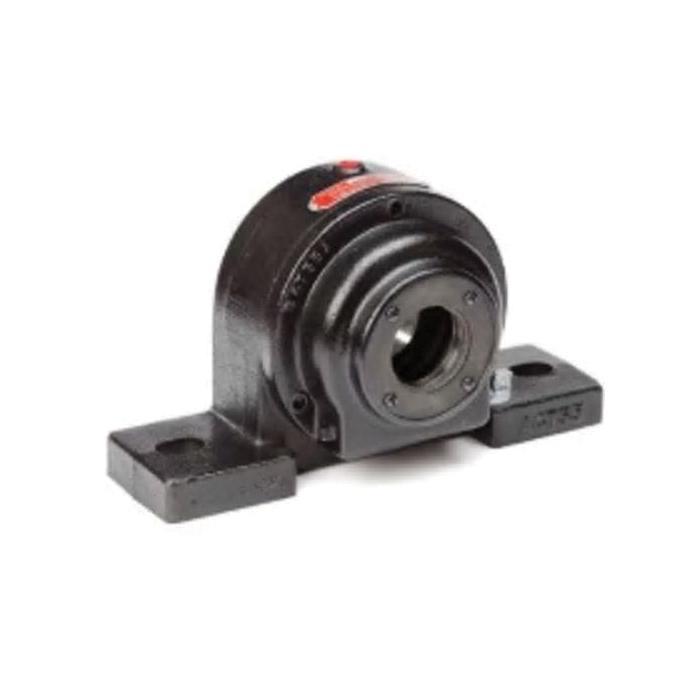

Timken® SAOL2 7/16 SAOL Floating Heavy Duty Pillow Block Ball Bearing Unit, 2-7/16 in Dia Bore, 11-1/4 in L Bolt Center-to-Center, 4-1/8 in Base to Bore Centerline, 13-3/4 in OAL
- CP#:
- Item#: SAOL2 7/16
- Mfr#: SAOL2 7/16
- UPC: 087796061729
- The floating unit allows the bearing-to move axially as the shaft expands from rising temperatures
- The fixed unit maintains shaft location
- The bearings have a loose internal fit
- The SAOL unit is equipped with a self-aligning SMN wide-inner-ring ball bearing and a self-locking collar
- The external aligning ring is fitted to the spherical surface of the outer-ring
- These types are equipped with oil-type seals
- They're normally fitted for oil lubrication, but they can be equipped for grease lubrication when specified
- Before installation, lubricate with high-grade automotive oil, turbine oil or ball bearing grease
- The units are assembled with a spacer ring (fixed type) by removing the spacer ring, the assembly becomes a floating unit
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Timken® ball bearing housed units feature a wide-inner-ring ball bearing for additional shaft support. Designed for mounting on straight shafts with a slip fit, these housed units are available in an extensive array of types and sizes to accommodate many industrial applications.
Timken®, SAOL2 7/16, Pillow Block Ball Bearing Unit, Floating Heavy Duty, Series: SAOL, 2-7/16 in Bore, 11-1/4 in Bolt Center-to-Center Length, 4-1/8 in Base to Bore Centerline, 13-3/4 in Overall Length, 5-29/32 in Overall Width, Two-Bolt Base Mounting, Round Bore, 4 in Base Width, Eccentric Locking Device, Contact Seal, Non-Expansion (Fixed), 18400 lb Dynamic/11700 lb Static Load, 250 deg F, 3680 rpm Maximum, Cast Iron, Uncoated
SPECIFICATIONS
| Base Width | : | 4 in |
| Base to Bore Centerline | : | 4-1/8 in |
| Series | : | SAOL |
| Bolt Center-to-Center Length | : | 11-1/4 in |
| Mounting Type | : | Two-Bolt Base |
| Expansion Type | : | Non-Expansion (Fixed) |
| Locking Device | : | Eccentric |
| Finish | : | Uncoated |
| Overall Length | : | 13-3/4 in |
| Load Capacity | : | 18400 lb Dynamic/11700 lb Static |
| Material | : | Cast Iron |
| Maximum Speed | : | 3680 rpm |
| Overall Width | : | 5-29/32 in |
| Inside Diameter | : | 2-7/16 in |
| Measurement System | : | Imperial |
| Seal Type | : | Contact |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Timken_010_6015S_Catalog.pdf
