SAK2

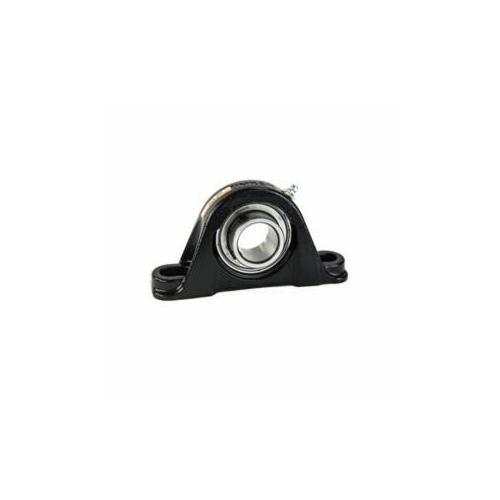

Timken® SAK2 SAK Normal Duty Standard Pillow Block Ball Bearing Unit, 2 in Dia Bore, 6-15/16 in L Bolt Center-to-Center, 2-7/16 in Base to Bore Centerline, 8-3/4 in OAL x 4-29/32 in OAH
- CP#:
- Item#: SAK2
- Mfr#: SAK2
- UPC: 087796156227
- The streamlined, rugged, one-piece pillow block combines an RAK housing and GYA-RRB set screw bearing
- GYA-RRB bearing employs a positive-contact, land-riding seal and specially designed set screws
- This pillow block can be mounted to operate in any position
- Bearing housed units are factory pre-lubricated
- All units are supplied with GYA-RRB set screw bearing
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Timken® ball bearing housed units feature a wide-inner-ring ball bearing for additional shaft support. Designed for mounting on straight shafts with a slip fit, these housed units are available in an extensive array of types and sizes to accommodate many industrial applications.
Timken®, SAK2, Pillow Block Ball Bearing Unit, Normal Duty Standard, Series: SAK, 2 in Bore, 6-15/16 in Bolt Center-to-Center Length, 2-7/16 in Base to Bore Centerline, 8-3/4 in Overall Length, 2-5/16 in Overall Width, 4-29/32 in Overall Height, Round Bore, 2-5/16 in Base Width, Set Screw Locking Device, Contact Seal, Non-Expansion (Fixed), 9750 lb Dynamic/6570 lb Static Load, Cast Iron, Uncoated
SPECIFICATIONS
| Base Width | : | 2-5/16 in |
| Base to Bore Centerline | : | 2-7/16 in |
| Series | : | SAK |
| Bolt Center-to-Center Length | : | 6-15/16 in |
| Expansion Type | : | Non-Expansion (Fixed) |
| Locking Device | : | Set Screw |
| Finish | : | Uncoated |
| Overall Length | : | 8-3/4 in |
| Load Capacity | : | 9750 lb Dynamic/6570 lb Static |
| Material | : | Cast Iron |
| Overall Width | : | 2-5/16 in |
| Inside Diameter | : | 2 in |
| Overall Height | : | 4-29/32 in |
| Measurement System | : | Imperial |
| Seal Type | : | Contact |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Timken_010_6015S_Catalog.pdf
