RTU1 3/16

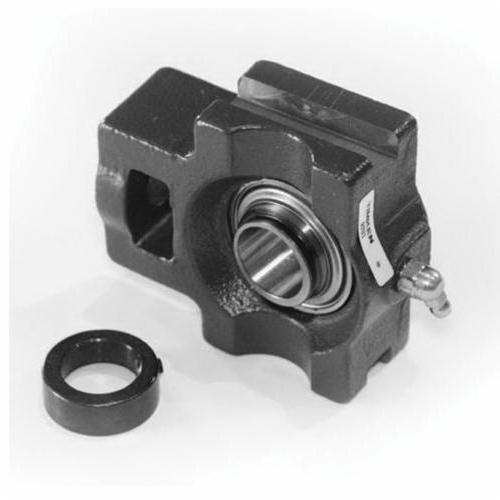

Timken® RTU1 3/16 RTU Take-Up Ball Bearing Unit, 1-3/16 in Dia Bore, 4.561 in L x 13-1/2 in W x 4-1/8 in H, 4370 lb Dynamic/2530 lb Static Load
- CP#:
- Item#: RTU1 3/16
- Mfr#: RTU1 3/16
- UPC: 087796058163
- These ball bearing take-up units are used where shaft adjustment and belt-tightening devices are required
- Take-up units incorporate self-aligning, B-type wide-inner-ring ball bearings with self-locking collars
- These units use a G-KRRB, R-seal type wide-inner-ring ball bearing
- These units provide compact, efficient supports for adjustable shafts and conveyer take-up pulleys
- The units are factory pre-lubricated
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Designed to maximize performance, Timken® Fafnir® ball bearing housed units combine the bearing, housing, seal and locking system into one device for easy installation and operation. Timken® Fafnir® housed units feature specialized product lines to solve specific application concerns. Our problem solver series helps prevent downtime by using superior technology to keep equipment running efficiently and improve your bottom line.
Timken®, RTU1 3/16, Take-Up Ball Bearing Unit, Series: RTU, 1-3/16 in Bore, 4.561 in Length, 13-1/2 in Width, 4-1/8 in Height, 4370 lb Dynamic/2530 lb Static Load, For Use With: T-18694 Frames, Steel Bearing, Uncoated
SPECIFICATIONS
| Series | : | RTU |
| Bearing Material | : | Steel |
| Finish | : | Uncoated |
| Height | : | 4-1/8 in |
| Length | : | 4.561 in |
| Load Capacity | : | 4370 lb Dynamic/2530 lb Static |
| Suitable For Use With | : | T-18694 Frames |
| Inside Diameter | : | 1-3/16 in |
| Width | : | 13-1/2 in |
| Measurement System | : | Imperial |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Timken_RCJO2_7_16_Catalog.pdf -
Specification Sheet https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Timken_RTU1_3_16_Specification_Sheet.pdf
