RCJT1 15/16 NT

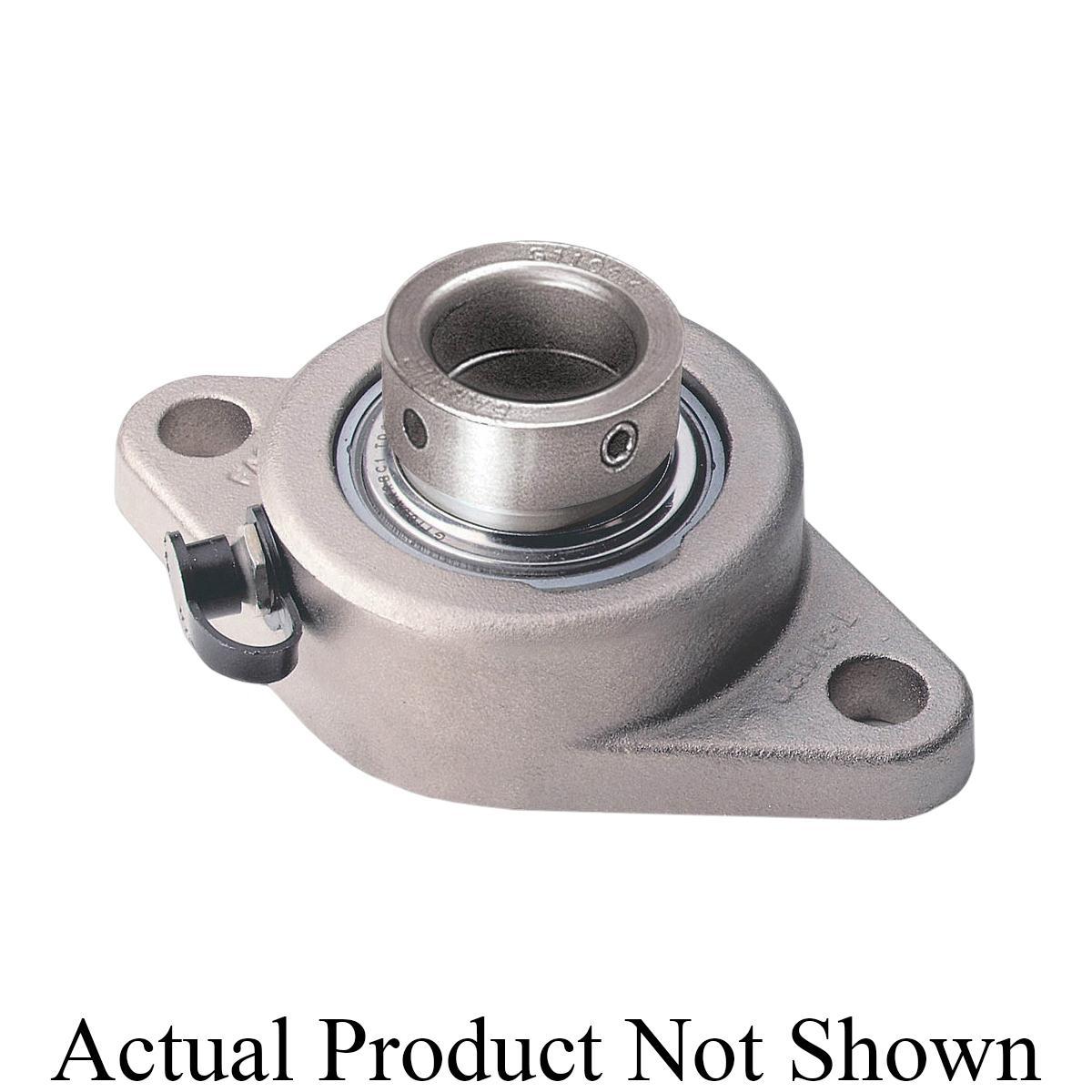

Timken® RCJT1 15/16 NT RCJT Series Round Bore Standard Duty Ball Bearing Housed Unit, 1.93 in Dia Bore, 6.1889 in L Bolt Center-to-Center, 2-Bolt Flange Mount, 7.437 in OAL/7.43 in OD OAL/Dia
- CP#:
- Item#: RCJT1 15/16 NT
- Mfr#: RCJT1 15/16 NT
- UPC: 087796156593
- Timken® Survivor® series pillow block and flanged units excel in highly corrosive environments
- A proprietary thin dense chrome (TDC) coating is applied to all bearing inserts for superior corrosion protection
- The TDC coating is designed to not crack or peel under known application conditions
- The unit is factory lubricated with FDA/USDA approved grease (class H1 lubricant) for incidental food contact
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Designed to maximize performance, Timken® Fafnir® Ball Bearing Housed Units combine the bearing, housing, seal and locking system into one device for easy installation and operation. Timken® Fafnir® housed units feature specialized product lines to solve specific application concerns. Our problem solver series helps prevent downtime by using superior technology to keep equipment running efficiently and improve your bottom line.
Timken®, RCJT1 15/16 NT, Ball Bearing Housed Unit, Round Bore Standard Duty, Series: RCJT Series, 1.93 in Bore, 6.1889 in Bolt Center-to-Center Length, 2-Bolt Flange Mounting, 7.437 in OAL/7.43 in OD Overall Length/Diameter, 2.615 in Overall Height, Eccentric Locking Device, Steel Bearing, 7890 lb Dynamic/5210 lb Static Load, 3600 rpm Maximum
SPECIFICATIONS
| Bolt Center-to-Center Length | : | 6.1889 in |
| Series | : | RCJT Series |
| Bearing Material | : | Steel |
| Flange Mounting Type | : | 2-Bolt |
| Locking Device | : | Eccentric |
| Load Capacity | : | 7890 lb Dynamic/5210 lb Static |
| Maximum Speed | : | 3600 rpm |
| Overall Height | : | 2.615 in |
| Inside Diameter | : | 1.93 in |
| Overall Length/Diameter | : | 7.437 in OAL/7.43 in OD |
| Measurement System | : | Imperial |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Fafnir_010_10650_Catalog.pdf
