RASC1 1/2

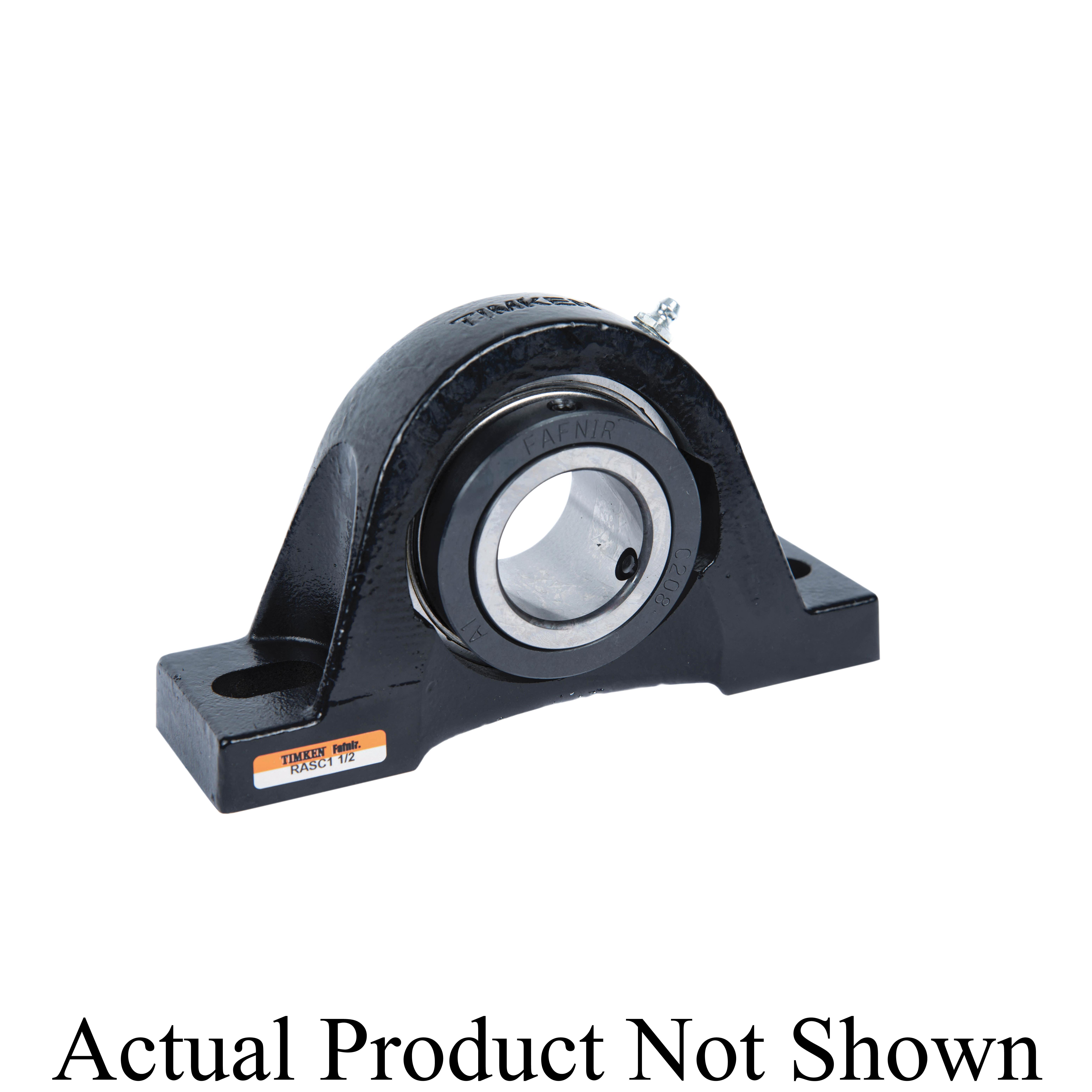

Timken® RASC1 1/2 RASC Normal Duty Pillow Block Ball Bearing Unit, 1-1/2 in Dia Bore, 5-3/8 in L Bolt Center-to-Center, 1-15/16 in Base to Bore Centerline, 7-1/16 in OAL x 3-15/16 in OAH
- CP#:
- Item#: RASC1 1/2
- Mfr#: RASC1 1/2
- UPC: 087796059597
- Heavier than our standard block with solid, flat feet for increased strength
- All RASC pillow blocks are equipped with GC-KRRB (R-seal) wide-inner-ring ball bearings with concentric-collars
- Pillow blocks self-align at mounting with the spherical outside diameter of the bearing fitting into the corresponding spherical housing seat
- Units are pre-lubricated and ready for immediate installation
- All units are supplied with GC-KRRB (R-seal) wide-inner-ring ball bearing and concentric-collars
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Timken® ball bearing housed units feature a wide-inner-ring ball bearing for additional shaft support. Designed for mounting on straight shafts with a slip fit, these housed units are available in an extensive array of types and sizes to accommodate many industrial applications.
Timken®, RASC1 1/2, Pillow Block Ball Bearing Unit, Normal Duty, Series: RASC, 1-1/2 in Bore, 5-3/8 in Bolt Center-to-Center Length, 1-15/16 in Base to Bore Centerline, 7-1/16 in Overall Length, 1-47/64 in Overall Width, 3-15/16 in Overall Height, Two-Bolt Base Mounting, Round Bore, 2-1/32 in Base Width, Concentric Collar Locking Device, Contact Seal, Non-Expansion (Fixed), 7330 lb Dynamic/4460 lb Static Load, 250 deg F, 3500 rpm Maximum, Cast Iron, Uncoated
SPECIFICATIONS
| Base Width | : | 2-1/32 in |
| Base to Bore Centerline | : | 1-15/16 in |
| Series | : | RASC |
| Bolt Center-to-Center Length | : | 5-3/8 in |
| Mounting Type | : | Two-Bolt Base |
| Expansion Type | : | Non-Expansion (Fixed) |
| Locking Device | : | Concentric Collar |
| Finish | : | Uncoated |
| Overall Length | : | 7-1/16 in |
| Load Capacity | : | 7330 lb Dynamic/4460 lb Static |
| Material | : | Cast Iron |
| Maximum Speed | : | 3500 rpm |
| Overall Width | : | 1-47/64 in |
| Inside Diameter | : | 1-1/2 in |
| Overall Height | : | 3-15/16 in |
| Measurement System | : | Imperial |
| Seal Type | : | Contact |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Timken_010_6015S_Catalog.pdf
