RAK1 1/2 FS914

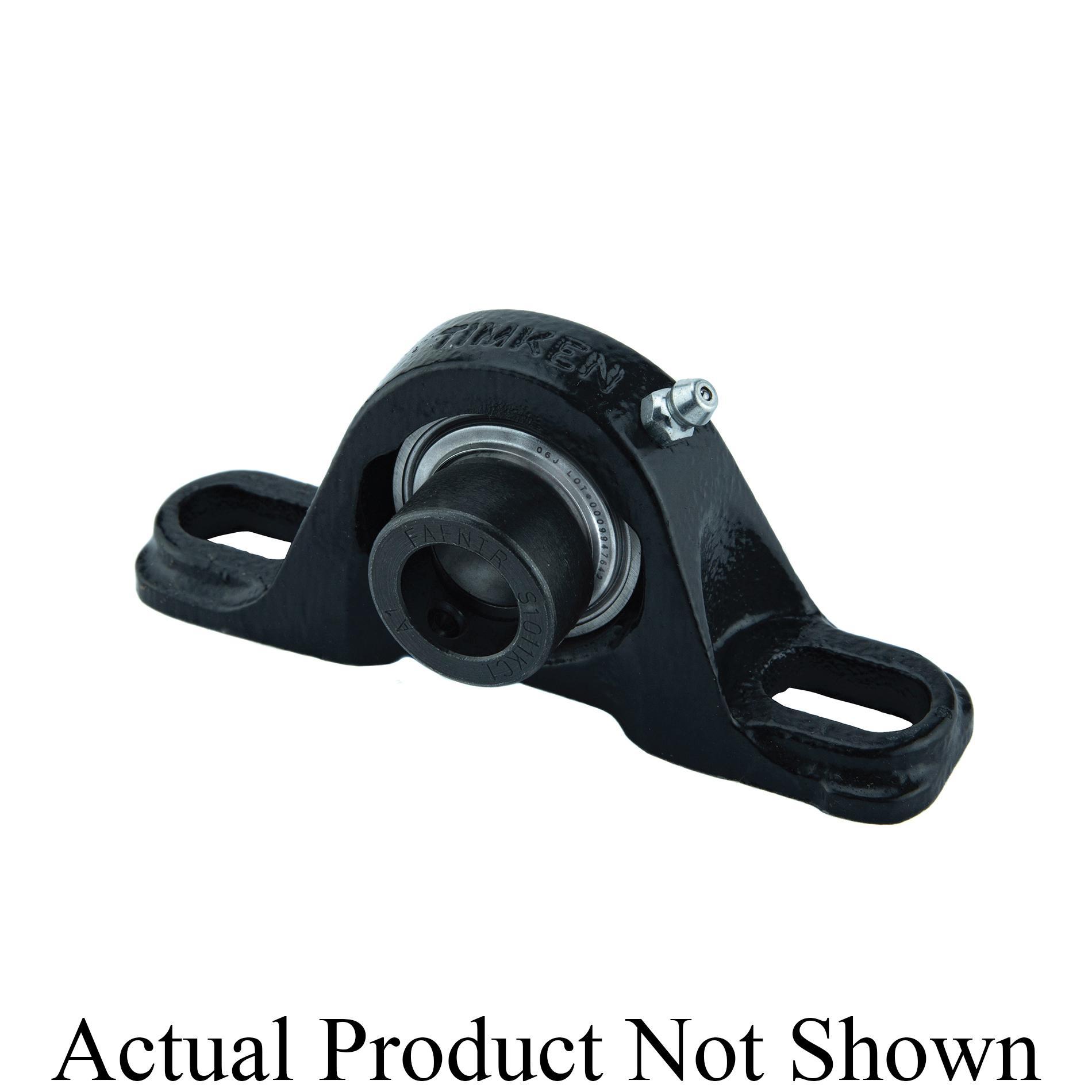

Timken® RAK1 1/2 FS914 RAK Industrial Series Standard Duty Pillow Block Ball Bearing Housed Unit, 1-1/2 in Dia Bore, 5.374 in L Bolt Center-to-Center, 1-15/16 in Base to Bore Centerline, 7-1/16 in OAL x 4 in OAH
- CP#:
- Item#: RAK1 1/2 FS914
- Mfr#: RAK1 1/2 FS914
- UPC: 087796014367
- Safeguard system performance and reduce costly wear and tear with superior contamination protection
- Multiple sealing and locking solutions, including eccentric and setscrew, provide support for demanding applications
- Setscrew solution features Shaft Guard Technology™ which eliminates shaft damage from setscrews
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Designed to maximize performance, Timken® Fafnir® ball bearing housed units combine the bearing, housing, seal and locking system into one device for easy installation and operation. Timken® Fafnir® housed units feature specialized product lines to solve specific application concerns. Our problem solver series helps prevent downtime by using superior technology to keep equipment running efficiently and improve your bottom line.
Timken®, RAK1 1/2 FS914, Pillow Block Ball Bearing Housed Unit, Standard Duty, Series: RAK Industrial Series, 1-1/2 in Bore, 5.374 in Bolt Center-to-Center Length, 1-15/16 in Base to Bore Centerline, 7-1/16 in Overall Length, 5.37 in Overall Width, 4 in Overall Height, Low Base Mounting, Round Bore, 2-1/32 in Base Width, Eccentric Locking Device, Contact Seal, 6530 lb Dynamic/3970 lb Static Load, Cast Iron
SPECIFICATIONS
| Base Width | : | 2-1/32 in |
| Base to Bore Centerline | : | 1-15/16 in |
| Series | : | RAK Industrial Series |
| Bolt Center-to-Center Length | : | 5.374 in |
| Mounting Type | : | Low Base |
| Locking Device | : | Eccentric |
| Overall Length | : | 7-1/16 in |
| Load Capacity | : | 6530 lb Dynamic/3970 lb Static |
| Material | : | Cast Iron |
| Overall Width | : | 5.37 in |
| Inside Diameter | : | 1-1/2 in |
| Overall Height | : | 4 in |
| Measurement System | : | Imperial |
| Seal Type | : | Contact |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Fafnir_010_10650_Catalog.pdf
